Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 361
Parameter Description
Ordering Orders the measurements, features, and surface data of the individual parts output
by the tool. Choose one of the following:
l Area - Large to small
l Area - Small to large
l Position - Xincreasing
l Position - X decreasing
l Position - Y increasing
l Position - Y decreasing
l Position - Z increasing
l Position - Zdecreasing

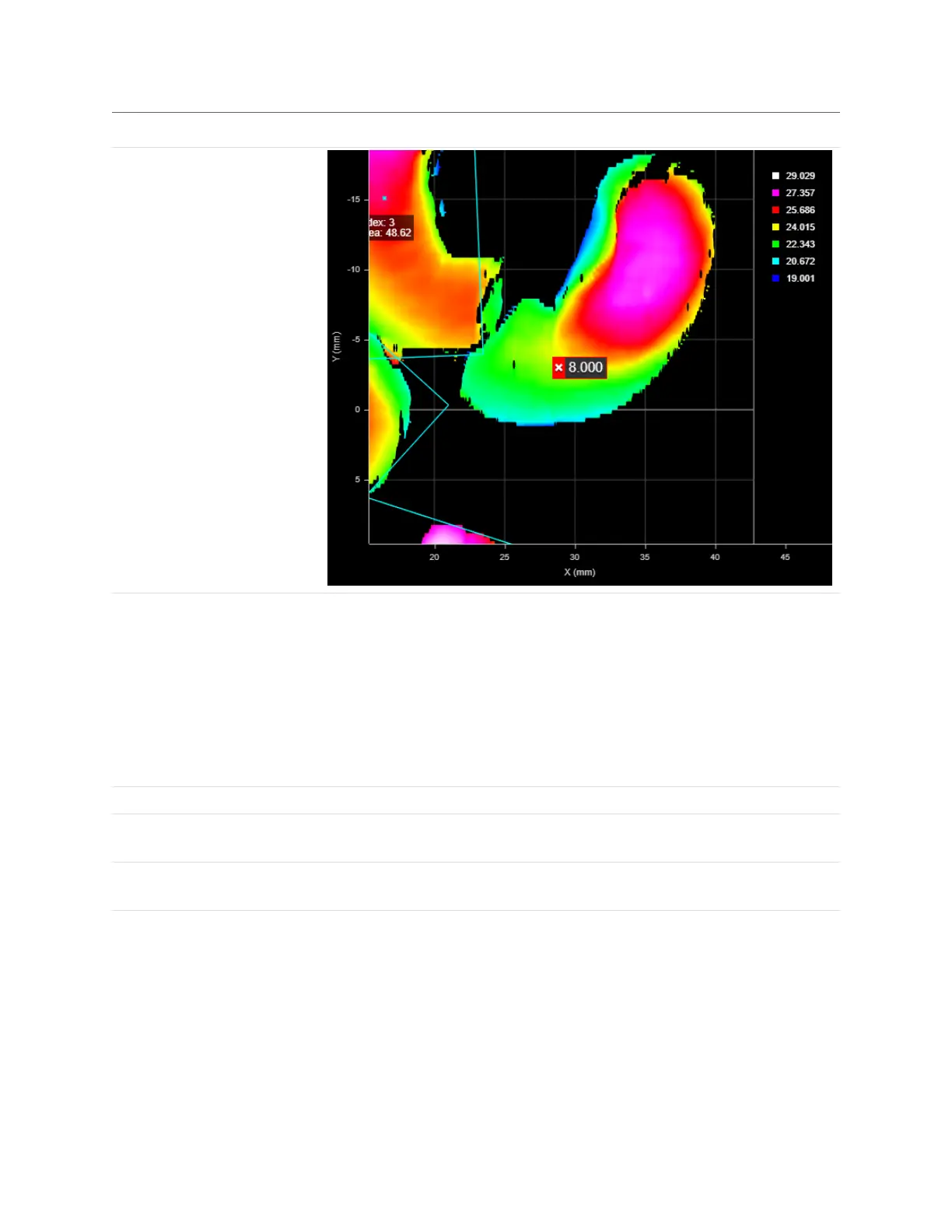

Show Details Toggles whether the tool displays the index and area of each individual part.
Number of Part Outpus Determines the number of parts the tool outputs as measurements, features (center
points of parts), and surface data.
Filters The filters that are applied to measurement values before they are output. For more
information, see Filters on page 209.
Decision The Max and Min settings define the range that determines whether the
measurement tool sends a pass or fail decision to the output. For more information,
see Decisions on page 208.
