Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 365
Parameter Description
Region The region to which the tool's measurements will apply. For more information, see
Regions on page 201.

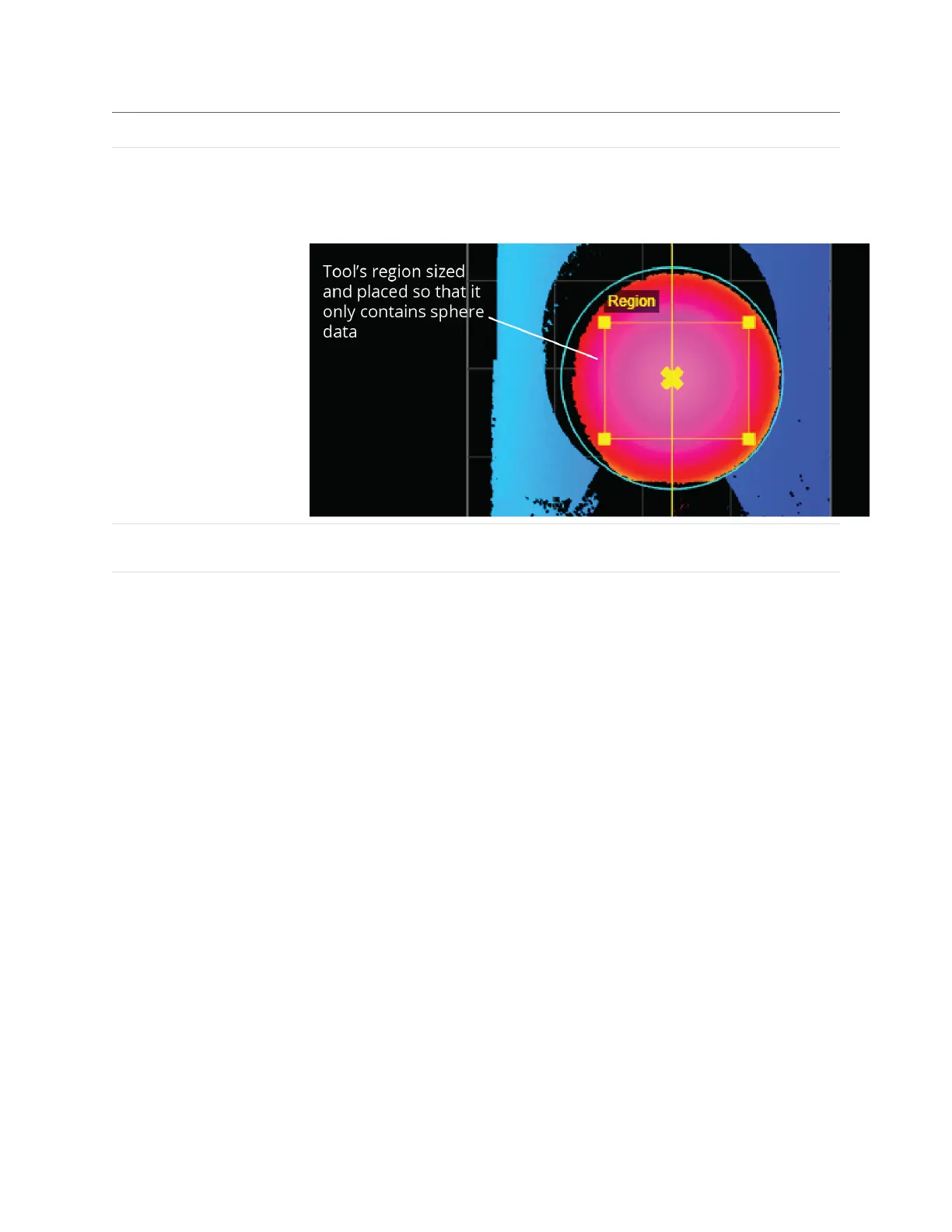

In order for the tool to correctly fit a sphere to the scan data, you must set the region so
that it only contains data from the sphere on the target.
Filters The filters that are applied to measurement values before they are output. For more
information, see Filters on page 209.
Decision The Max and Min settings define the range that determines whether the measurement
tool sends a pass or fail decision to the output. For more information, see Decisions on
page 208.
