Gocator Line Profile Sensors: User Manual
Specifications • 721
MODEL 2x20 2x30 2x40 2342 2x50 2x70 2375 2x80
Laser Classes 2, 3R
2, 3R;
3B (2300
series only)
2, 3R, 3B 3R, 3B
2, 3R;
3B (2300
series only)
2, 3R 3B 2, 3R
Input Voltage
(Power)
+24 to +48 VDC (13 W); Ripple +/- 10%
+48 VDC (20
W); Ripple
+/- 10%
+24 to +48
VDC (13 W);
Ripple +/- 10%
Dimensions
(mm)
35x120x149.5 49x75x142 49x75x197 49x75x197 49x75x272 49x75x272 49x75x272 49x75x272
Weight (kg) 0.8 0.74 0.94 0.94 1.3 1.3 1.3 1.3

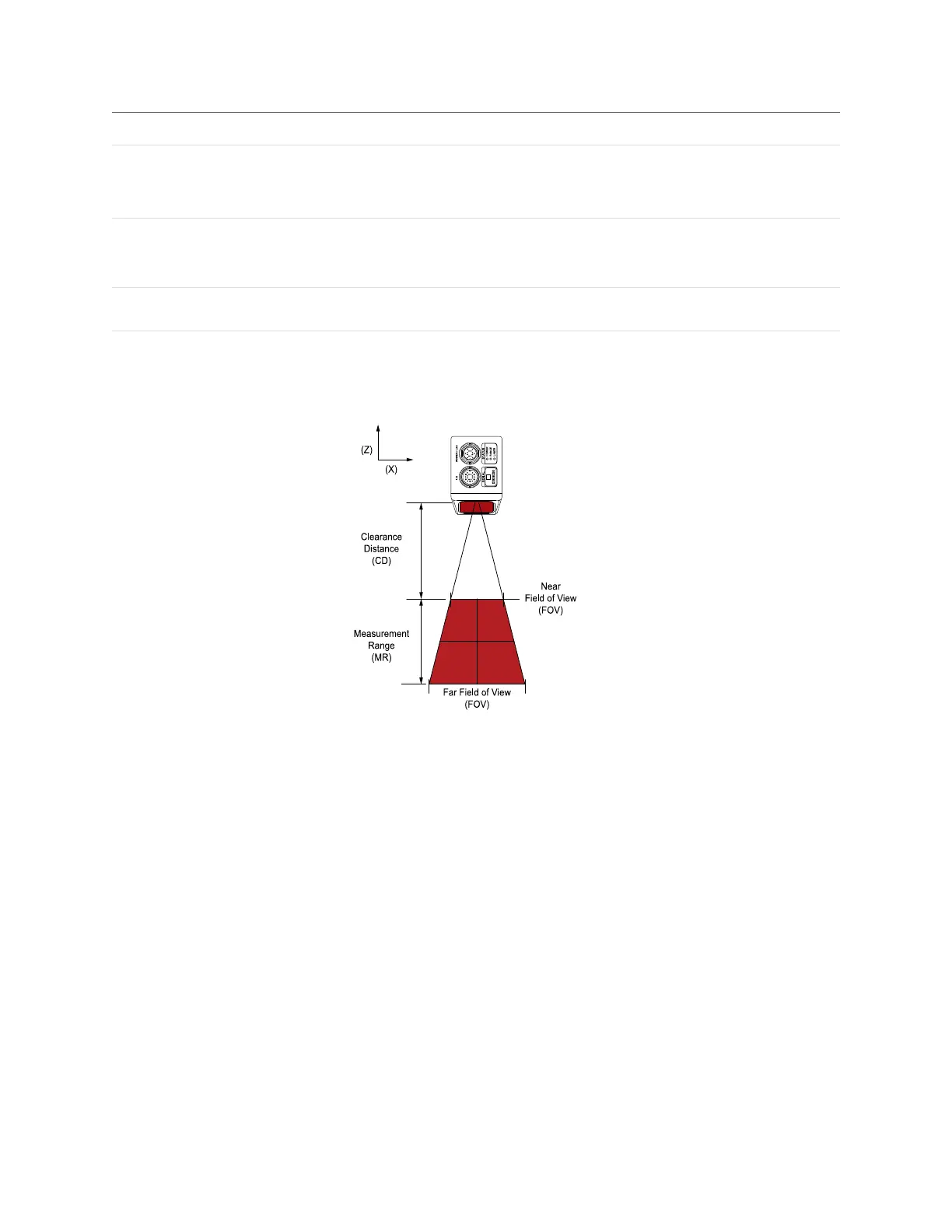

The following diagram illustrates some of the terms used in the table above.
Optical models, laser classes, and packages can be customized. Contact LMI for more details.
Gocator 2300 series sensors provide 1280 data points per profile. Gocator 2100 series sensors provide
640 data points per profile; additionally, Gocator 2100 series sensors do not support the tracking
window capability (for more information, see Tracking Window on page 126).
Specifications stated are based on standard laser classes. Linearity Z, Resolution Z, and Repeatability Z
may vary for other laser classes.
All specification measurements are performed on LMI’s standard calibration target (a diffuse, painted
white surface).
Linearity Z is the worst case difference in average height measured, compared to the actual position over
the measurement range.
Resolution Z is the maximum variability of height measurements across multiple frames, with 95%
confidence.
Resolution X is the distance between data points along the laser line.
