Gocator Line Profile Sensors: User Manual
Specifications • 772

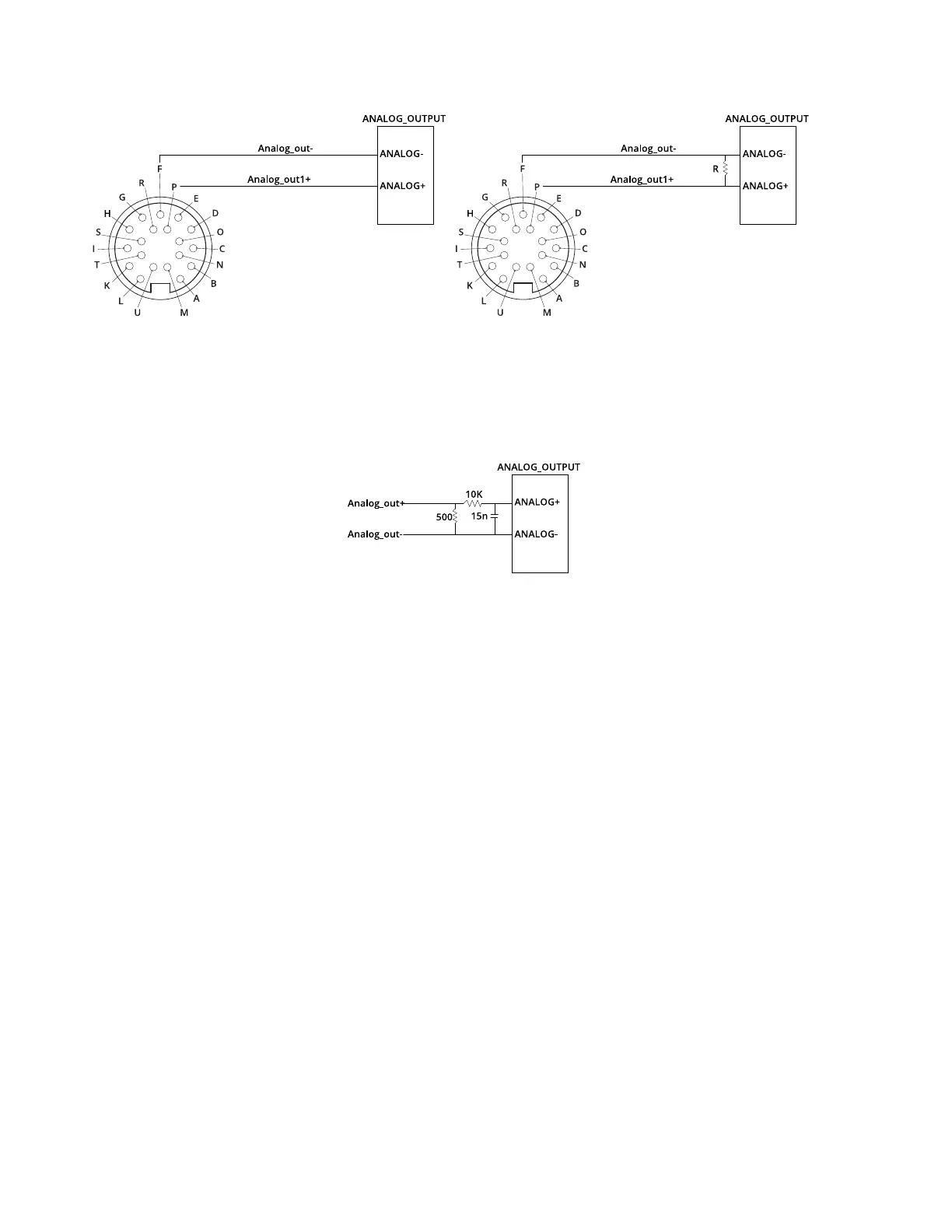

Current Mode Voltage Mode
To configure for voltage output, connect a 500 Ohm ¼ Watt resistor between Analog_out+ and Analog_
out- and measure the voltage across the resistor. To reduce the noise in the output, we recommend
using an RC filter as shown below.
