Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 81

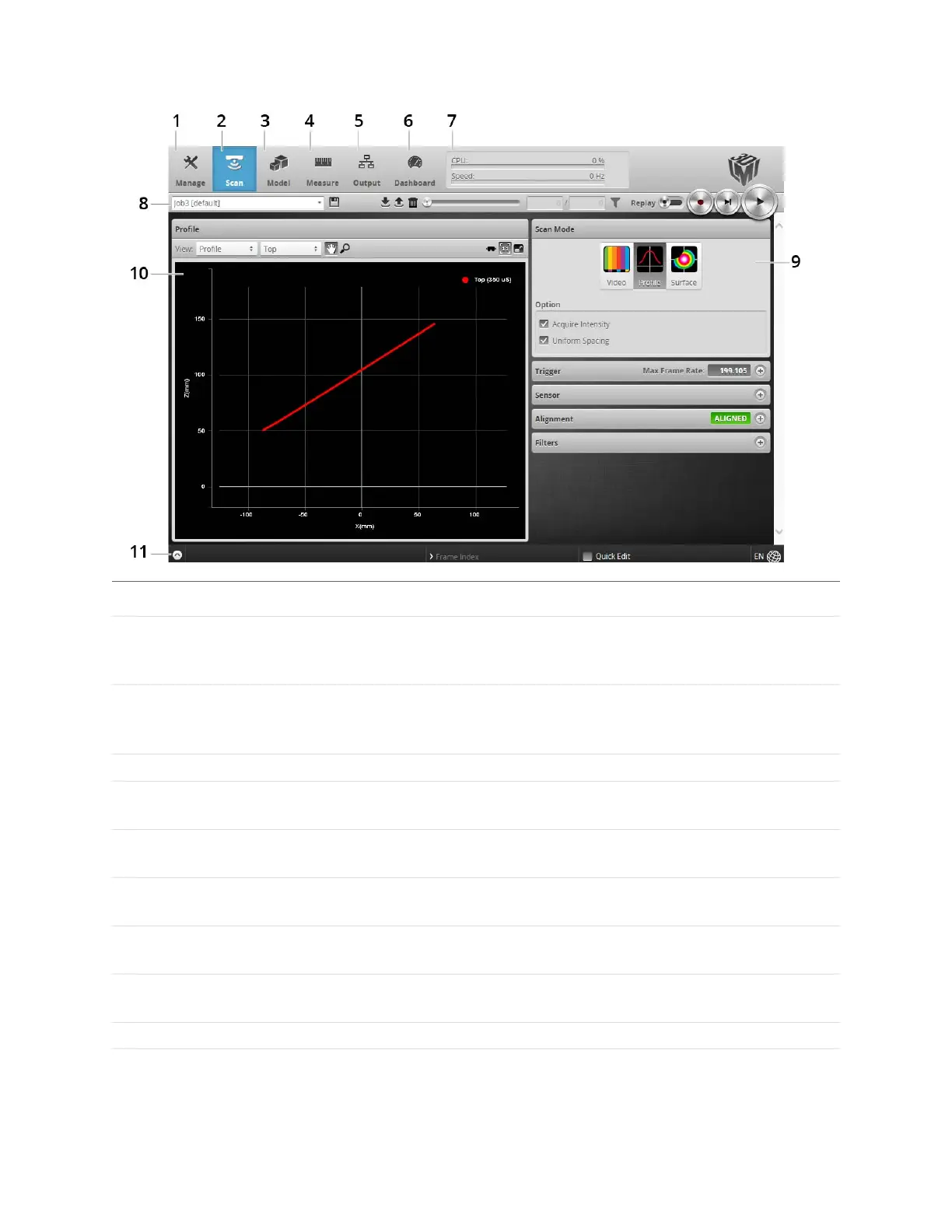

Element Description
1 Manage page Contains settings for sensor system layout, network, motion and
alignment, handling jobs, and sensor maintenance. See Management and
Maintenance on page 93.
2 Scan page Contains settings for scan mode, trigger source, detailed sensor
configuration, and performing alignment. See Scan Setup and Alignment on
page 115.
3 Model page Lets you set up sections and part matching. See Models on page 176
4 Measure page Contains built-in measurement tools and their settings. See Measurement
and Processing on page 196.
5 Output page Contains settings for configuring output protocols used to communicate
measurements to external devices. See Output on page 433.
6 Dashboard page Provides monitoring of measurement statistics and sensor health. See
Dashboard on page 446.
7 CPULoad and Speed Provides important sensor performance metrics. See Metrics Area on page
89.
8 Toolbar Controls sensor operation, manages jobs, and filters and replays
recorded measurement data. See Toolbar on the next page.
9 Configuration area Provides controls to configure scan and measurement tool settings.
