OPERATION
17. Drive windrower so that windrower lift arms are located
in the weight box pockets.
18. Raise lift arms slightly.
19. Stop engine, and re move key.
20. Install locking pins (A) into pockets and through
windrower header lift linkages. Secure with hairpin.
NOTE:
Pins (A) were previously removed from the header lift
linkage lower end.

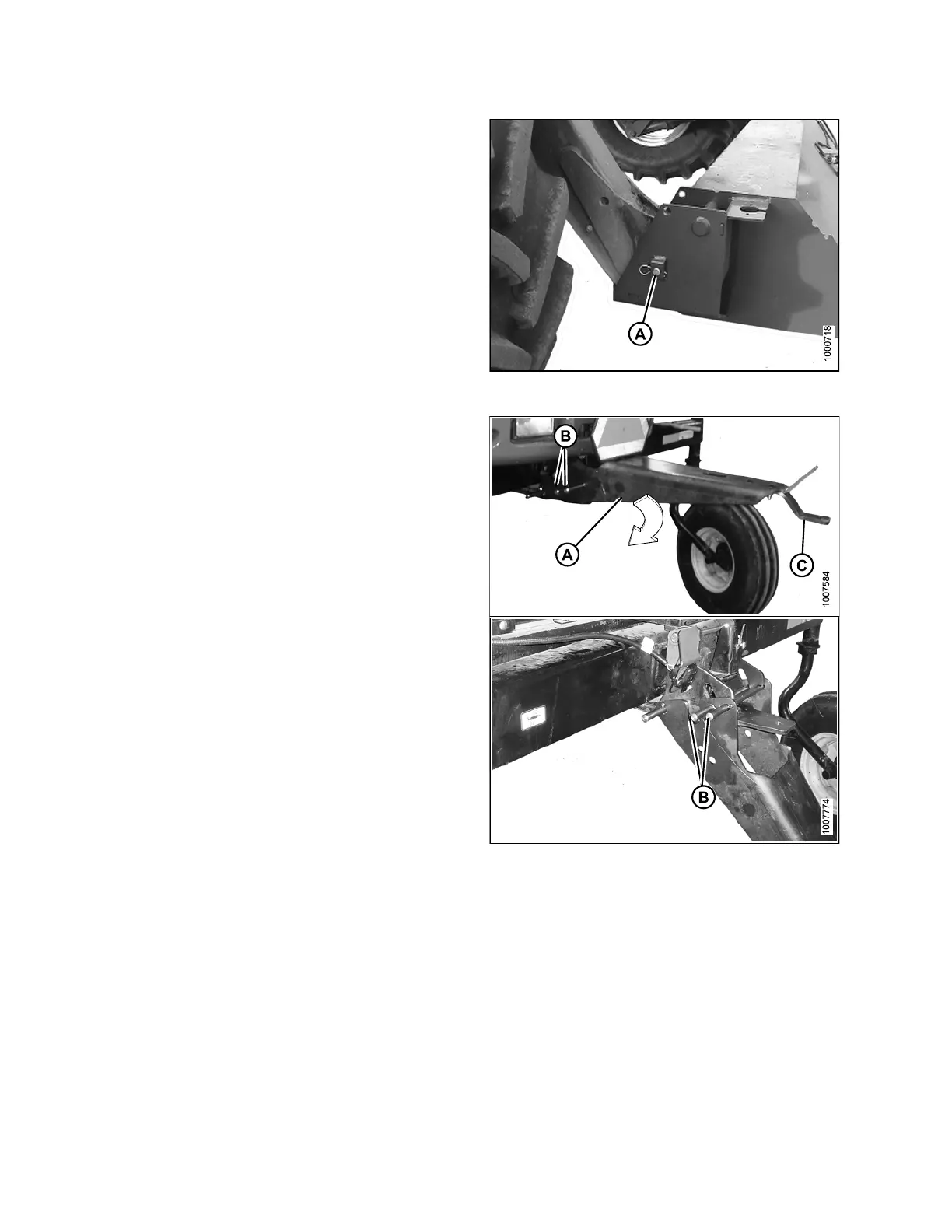

Figure 4.41: Lift Arms
At rear of windrower, lower the drawbar bracket as follows:
21. Hold drawbar support (A), and remove the two pins (B)
at the forward end.
22. Lower support to position shown, and reinstall the two
pins (B) in uppermost pair of holes in support.
23. Alternative drawbar (C) can be removed if desired.
Figure 4.42: Drawbar
