OPERATION

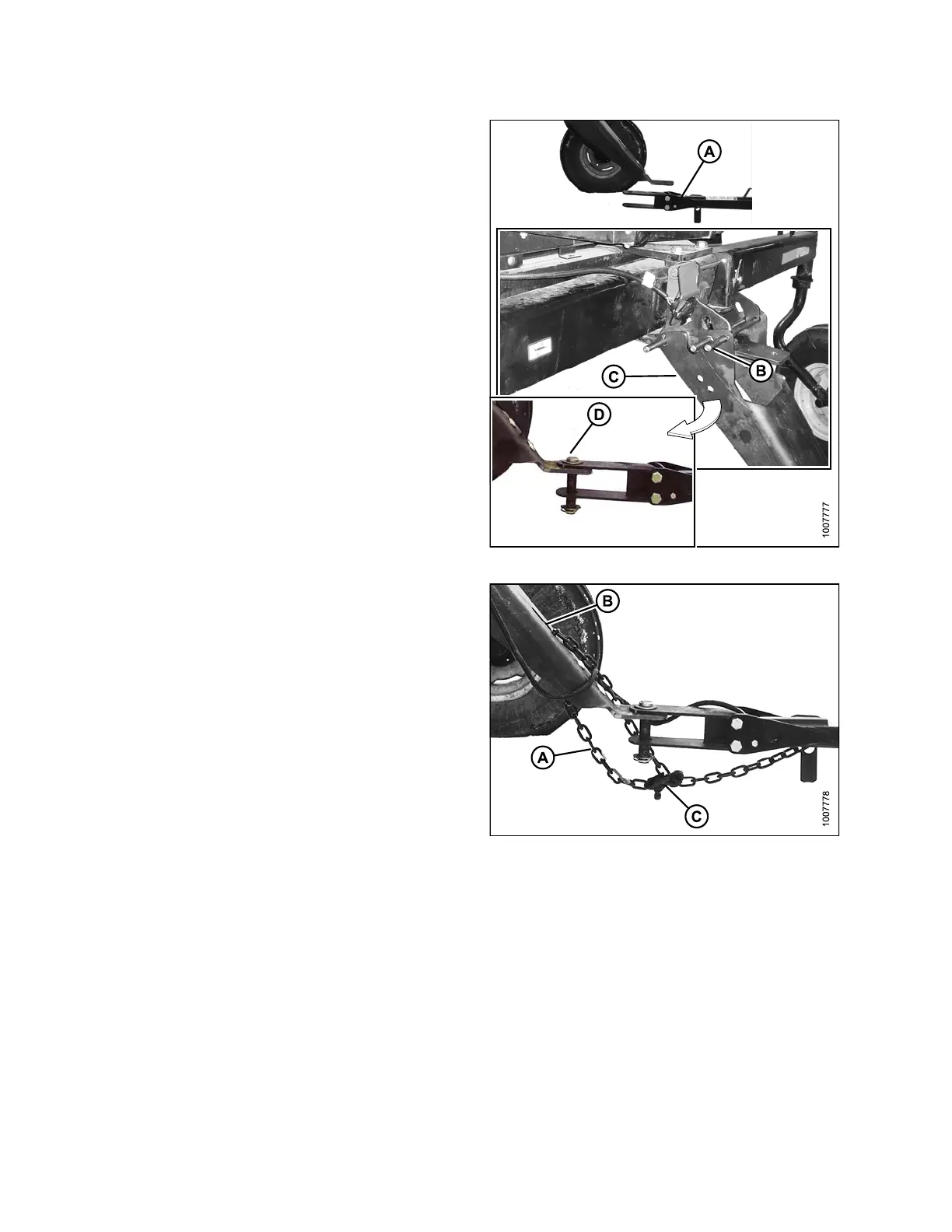

27. If the tow-bar (A) is TOO CLOSE to the windrower:
a. Remove pin (B), lower the drawbar support (C)
until the tow-bar clevis aligns, and then install the
drawbar pin (D).
b. Start engine, an d gently drive the wind rower
forward until the drawbar support pivots u p to
transport position.
c. Stop engine, and remove key.
d. Reinstall pin (B).
Figure 4.
45: Towing Components
28. Connect safety chain (A) through the slot in the
drawbar sup p ort (B), and securely attach the hook (C)
to the chain. Leave enough slack to allow the hitch
to pivot.
Figur
e 4.46: Towing Components
169890 110 Revision A
