OPERATION
7. Push down on rod end of link cylinder (B), until hook
engages pin on header and is locked.
IMPORTAN T:
Hook release must be down to enable self-locking
mechanism. If the release is open (up), manually push it
down after hook engages header pin.
8. Check that center-link (A) is locked onto header by
pulling upward on ro d end (B) of cylinder.

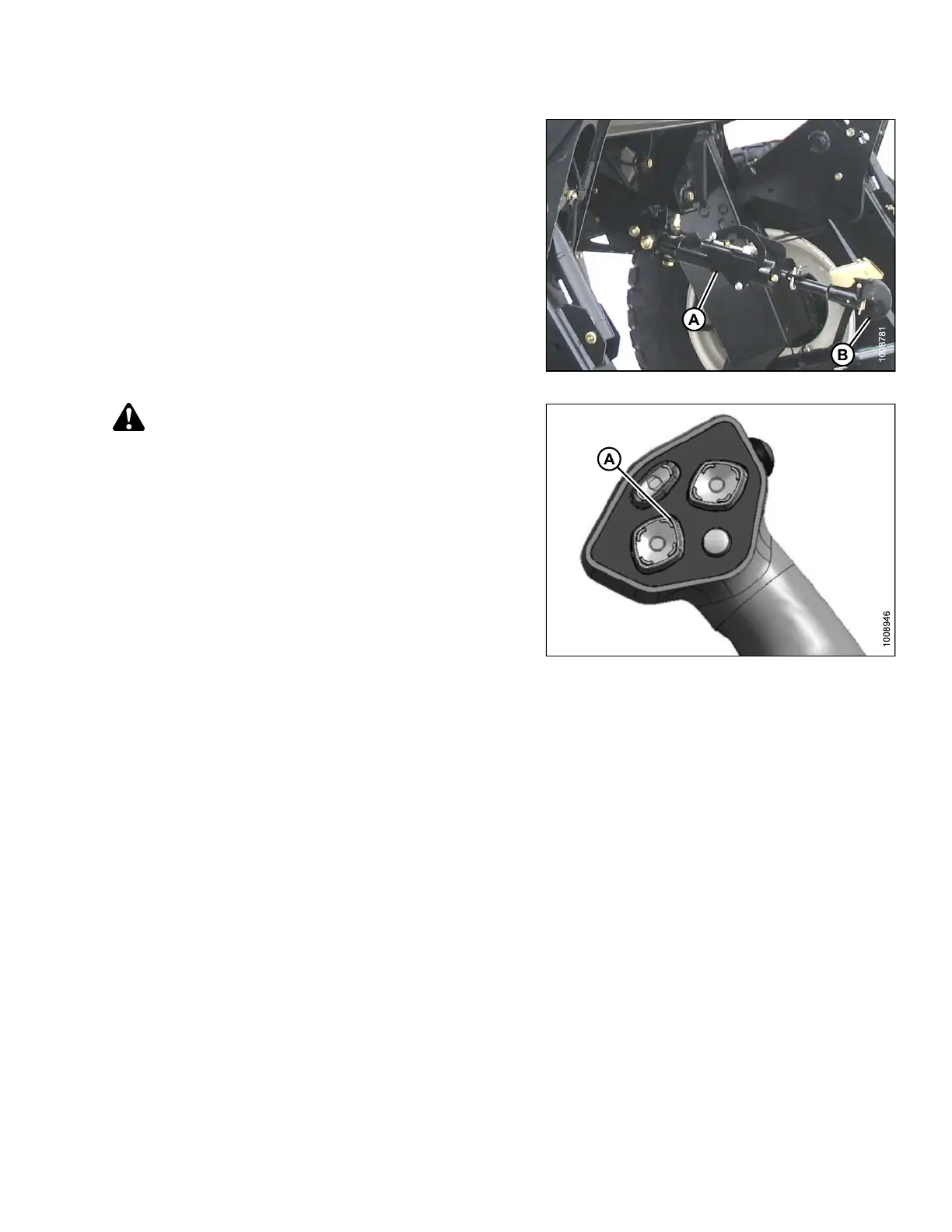

Figure 4.129: Hydraulic C enter-Link
CAUTION
Check to be sure all bystanders have cleared the area.
9. Start engine and press the HEADER UP switch (A) to
raise header to maximum height.
NOTE:
If one end of the header does NOT raise fully, the lift
cylinders require rephasing. If rephasing is needed,
proceed as follows:
a. Press and hold th e HEADER UP switch until bo th
cylinders stop moving.
b. Continue to hold the switch for 3–4 seconds.
Cylinders are now phased.
Figure 4.130: G SL
169890 151 Revision A
