OPERATION

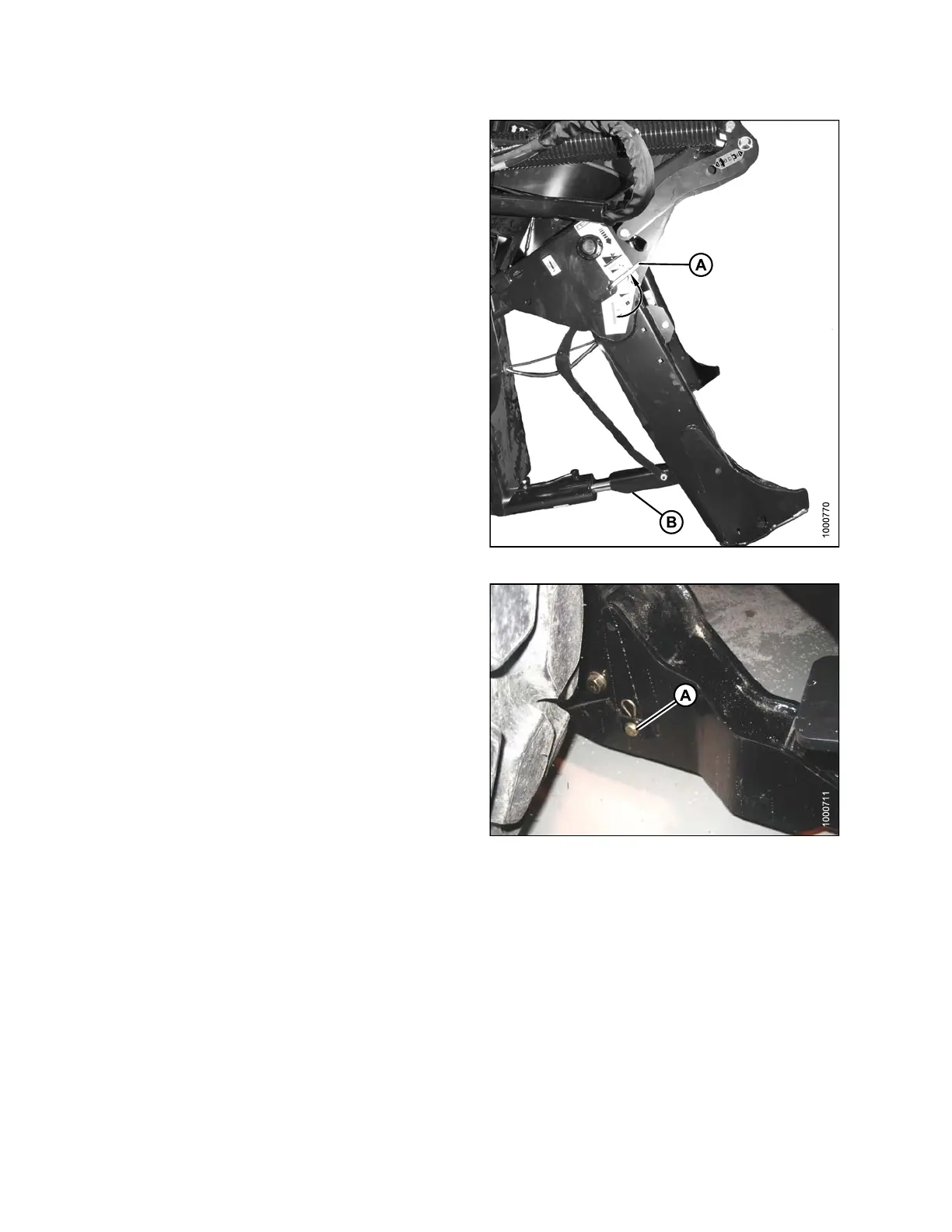

10. Engage safety props on both lift cylinders as follows:
a. Stop engine and remove key from ignition.
b. Pull lever (A) and rotate toward header to release
and lower the s afety pro p (B) onto cylinder.
c. Repeat for the opposite lift cylinder.
Figure 4.
131: Cylinder Stop
11. Install clevis pin (A) through each boot and foot, and
secure with hairpin. Do this to both sides.
IMPORTA
NT:
Ensure c
levis pin (A) is fully inserted and hairpin is
install
ed behind bracket.
Figur
e 4.132: Header Boot
