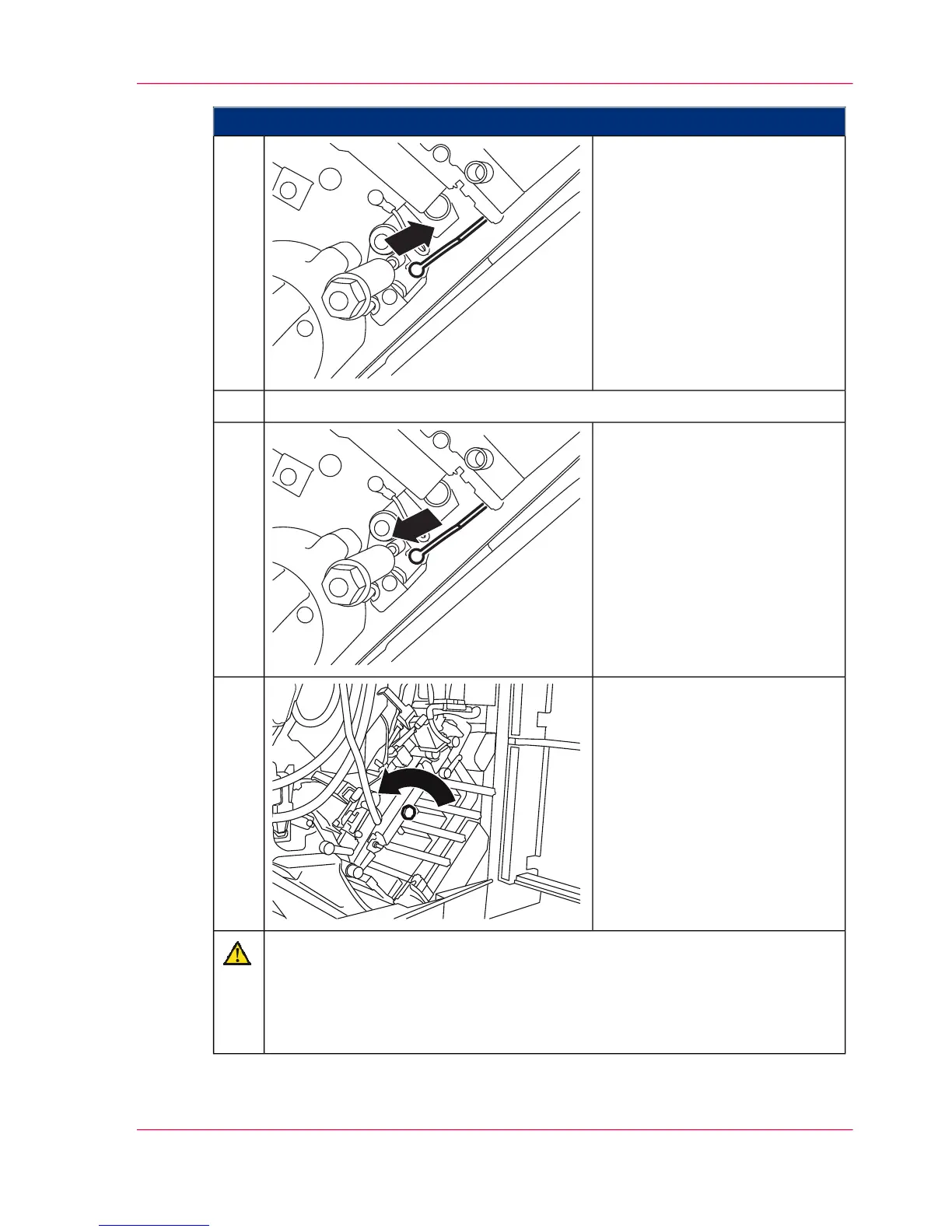

Proceed as follows:
Release the locking lever and
carefully pull the handle to re-
move the photoconductor blade
and place it to one side.
10.
Open packaging with the new photoconductor blade.11.
Carefully insert the new photo-
conductor blade with the metal
side facing up until the stop
point is reached and close the
locking lever.
12.
Turn the rotating handle to the
left to release the locking device.
When the photoconductor unit
is unlocked, both color displays
near the handle change from red
to green.
13.
Caution
The surface of the photoconductor belt is extremely sensitive and can be easily
damaged.
Avoid exposure to direct sunlight and do not touch.
Wear the gloves provided in the packaging.
Chapter 9 - Replacing Expendables 367
Removing Photoconductor Belt in Lower Print Unit and Replacing Photoconductor Blade.
