Proceed as follows:

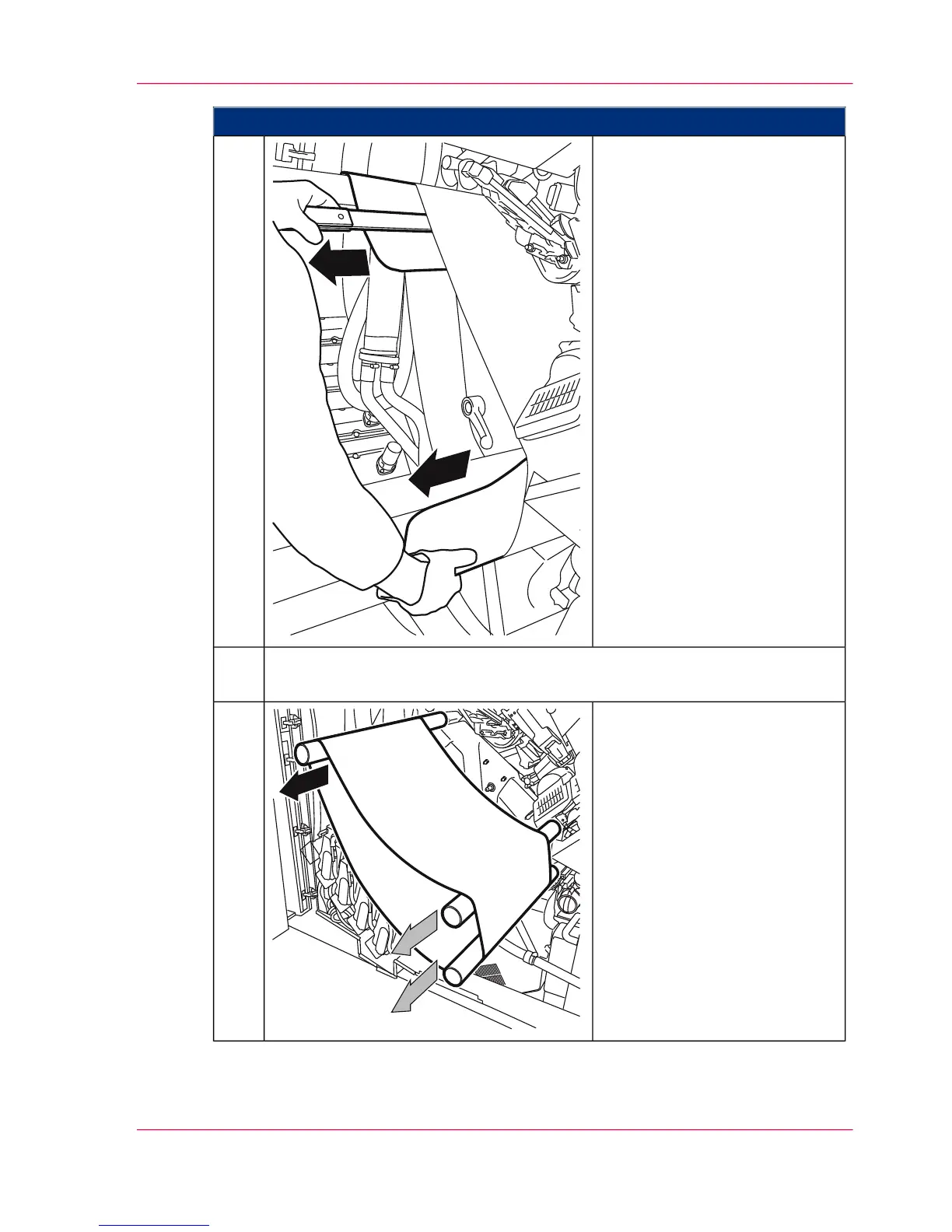

Attach the three tubes from the
original packaging (green to
green/red to red) and evenly pull
the transfer belt together with
the insertion tool and sliding foil
out of the tube.
9.
Carefully loosen the insertion tool and sliding foils from the transfer belt and
set them to the side.
10.
Completely remove the soft
transfer belt:
■
First remove and hold onto
the green tube together with
the transfer belt.
■
Then loosen the other two
tubes. Leave the lower red
tube in the loop of the trans-
fer belt. Place the other red
tube on the outside.
■
Carefully roll the transfer belt
with the tubes into a bundle.
11.
Chapter 9 - Replacing Expendables 383
Removing Transfer Belt in the Upper Print Unit
