Proceed as follows:
Caution
Do not damage the smoothing roller
Take care not to damage the smoothing rollers on the edges of the blower unit
when installing them.

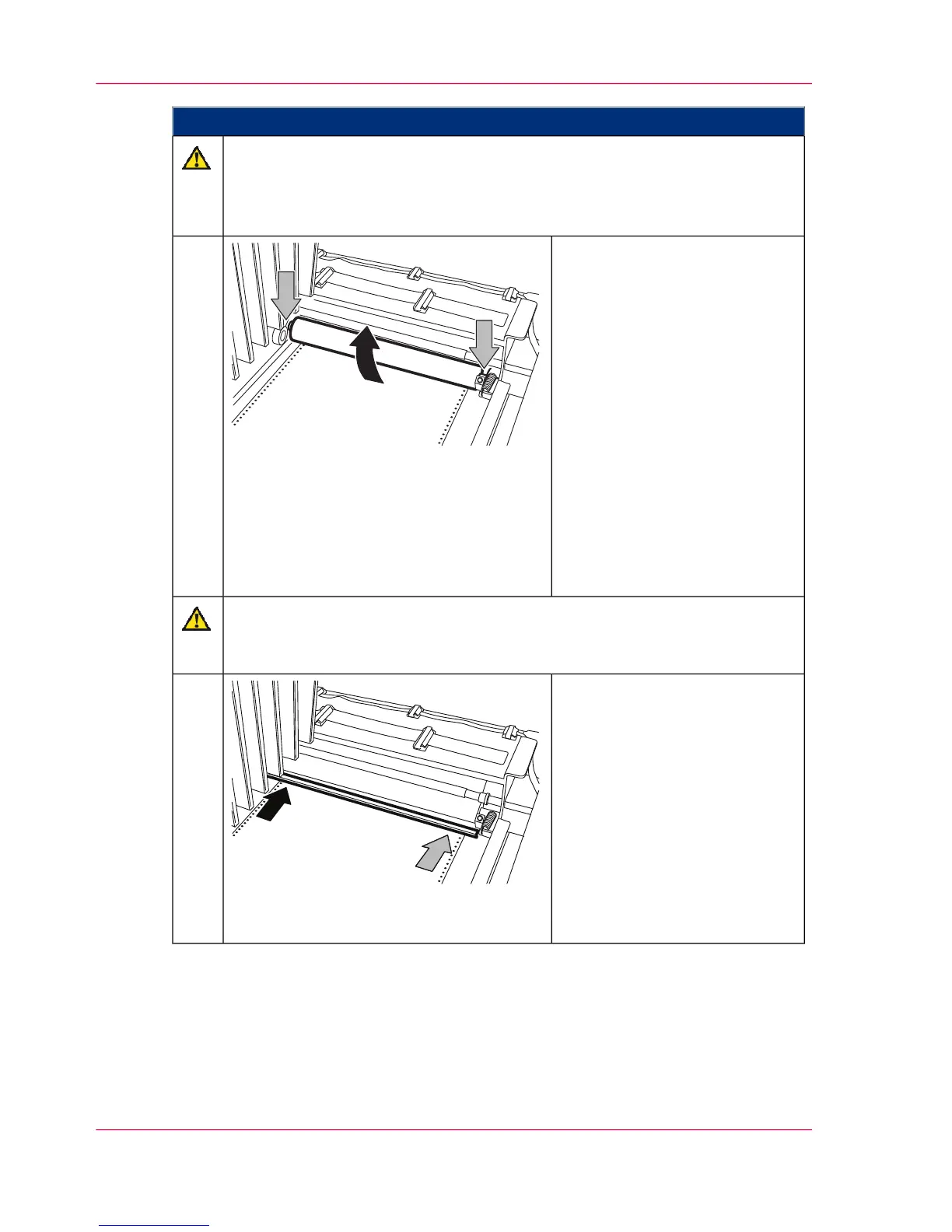

Install the new upper smoothing
roller (hard roller with gray sur-
face):
■
Insert the smoothing roller
carefully onto the swivel
levers.
■
Insert the bearing of the
smoothing roller into the
groove of the left swivel lever
(in paper path direction).
Push the bearing bolt on the
left-hand side downwards.
■
Press the bearing bolt on the
right-hand side (in paper
path direction) downwards.
2
3
1
7.
Caution
Do not damage the discharge brush
Ensure that you do not bend the discharge brush.
Insert the upper discharge brush
in the direction of the smoothing
roller, with the brush side facing
downwards:
■
First push the discharge
brush in on the right-hand
side (in paper path direction)
until it snaps in,
■
then insert the discharge
brush on the left-hand side
(in paper path direction).
8.
Chapter 9 - Replacing Expendables464
Installing smoothing rollers
