Parker AC30 series User Manual

4-11 Installation
AC30V Variable Speed Drive
5.
Fit gasket to the drive so that an air-tight seal
will be made between the drive and the panel.
Through Panel Kits, can be purchased from
Parker using the following part numbers:
Frame D – LA502668
Frame E – LA502669
Frame F – LA502670
Frame G – LA502471
Frame H – LA502472
Frame J – LA502793
6. Tighten all screws in place as shown, according
to panel insert requirements.
7. At this stage you can wire the power cables,
see page 4-11.

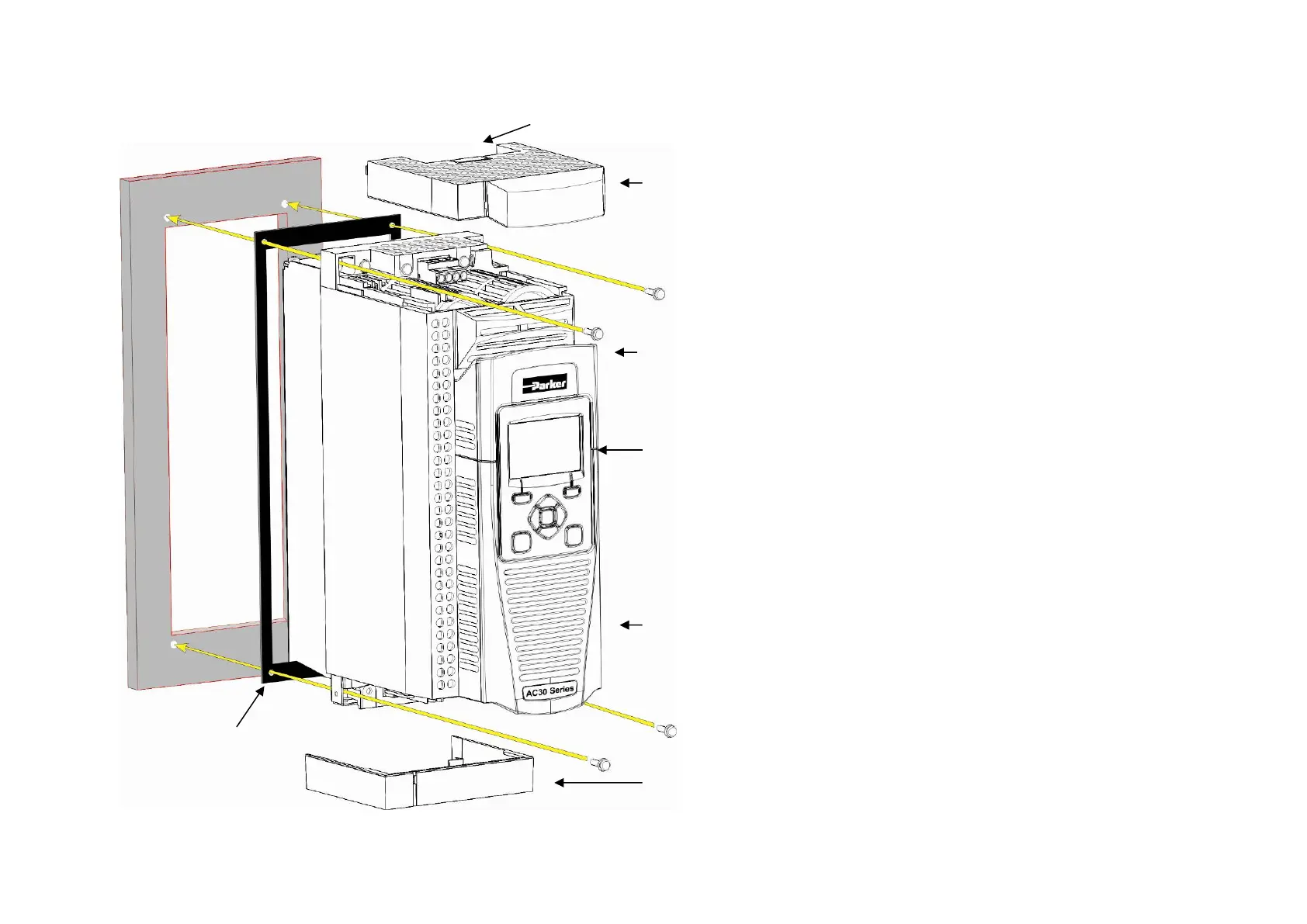

Upper Terminal
Cover
Cover Front
Upper
GKP
Control Unit Terminal Cover
(Cover Front Lower)
Lower Terminal
Cover
Snap out to allow entry to the
braking terminals
Gasket
