Parker AC30 series User Manual

D-114 Parameter Reference
AC30V series Variable Speed Drive
PNO Parameter Descriptions
0350 Inv Time Up Rate
Ramp value to ramp up current when overload condition disappears
0351 Inv Time Down Rate
Ramp value to reach the aiming point under prolonged overload condition
0352 Inv Time Warning
The protection starts to integrate overload conditions
0353 Inv Time Active
The drive protection is limiting the output current

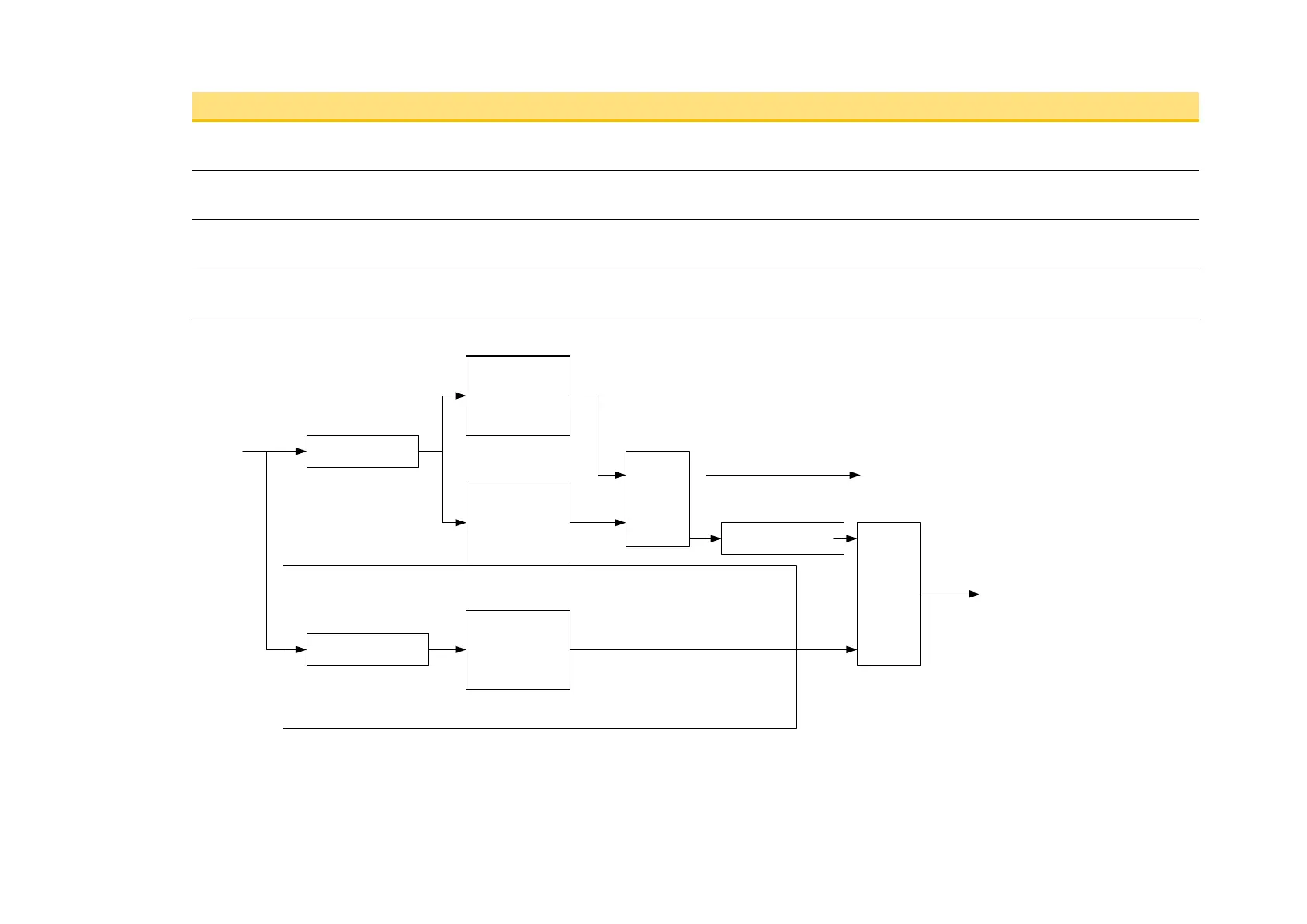

Functional Description
Stack Short overload
Stack Long overload
arbitration
Motor overload (
150%, 60s)
Min
Feedback Amps
Move to Stack %
Convert to Motor %
Convert to Motor %
Motor Load (
Only for IM Motor)
Inv Time in Motor %
Inv Time Output
Short Overload : is using 180% of the Heavy Duty rating, for 3s.
Long Overload : is using the overload mode selected in the Duty Selection parameter.
Inv Time in Motor % is used to limit the current. It is one of the inputs of the Current Limit Function features
