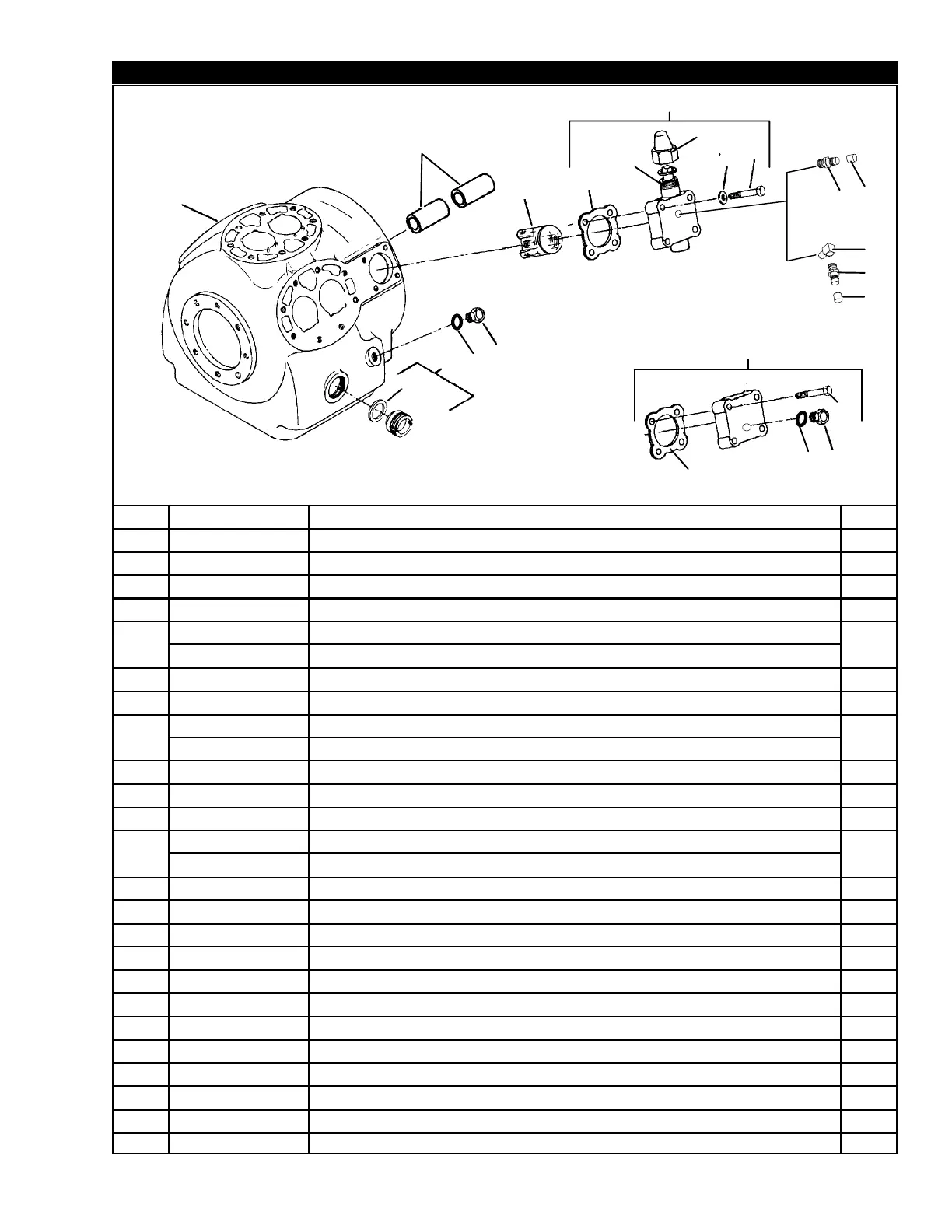

1 CRANKCASE AND SUCTION SER VICE VALVE
13
10
11
9
12
8
7
6
5
4
3
2
1
14
15
18
17
16
19
2
3
9
20
Item Part Number Description Qty
1 NSA Crankcase 1
2 17-44037-00 Plug, O-Ring, 7/16-20 - Includes: 1
3 42-00243-07 O-Ring 1
4 17-10218-00 Sight Glass, Oil Level - Includes: 2
5
17-10218-02 Gasket (Fiber)
1
5
17-44021-00 Gasket (Metal)
1
6 17-44015-00 Bearing, Main Seal End (Requires Line Boring) 2
7 17-44005-00 Strainer, Suction 1
8
17-31062-00 Valve, Service, 1-1/8 ODF (Bus/Supra 9xx) - Includes:
1
8
17-40002-01 Valve, Service, 1-3/8 ODF (Truck/Trailer) - Includes:
1
9 17-40005-05 Gasket, Service Valve (Fiber) 1
10 17-13020-00 Capscrew, 1/2-13 x 2-1/2 Inches Long - SAE Grade 8 4
11 17-40007-00 Gasket, Capscrew, 1/2 Inch 4
1
2
17-10812-00 Cap, Service Valve (Plastic)
1
1
2
17-10806-10 Cap, Service Valve (Brass)
1
9 17-44141-00 Gasket, 4 Bolt Service Valve (Metal) 1
13 17-13022-00 Packing, Service Valve Stem (package of 10) 1
14 06DA403-844 Valve, Access (1/4 Flare, Schrader) (for R-12, R-22, R-404A) 1
15 DD19CA061 Cap, 1/4 Flare, Schrader 1
16 40-00524-00 Elbow, 1/4 NPT x M13, Brass (for R-134a) 1
17 40-00520-00 Coupling, M13, R-134a, Brass - Includes: 1
18 40-00520-02 Cap, Service Port 1
19 17-13006-00 Kit, Valve Pad Blank Off, 4 Bolt Suction Service Valve - Includes: 1
2 17-44037-00 Plug, O-Ring, 7/16-20 - Includes: 1
3 42-00243-07 O-Ring 1
9 17-40005-05 Gasket, Service Valve (Fiber) 1
20 AABR293 Capscrew, 1/2-13 x 1-1/2 Inches Long 4
