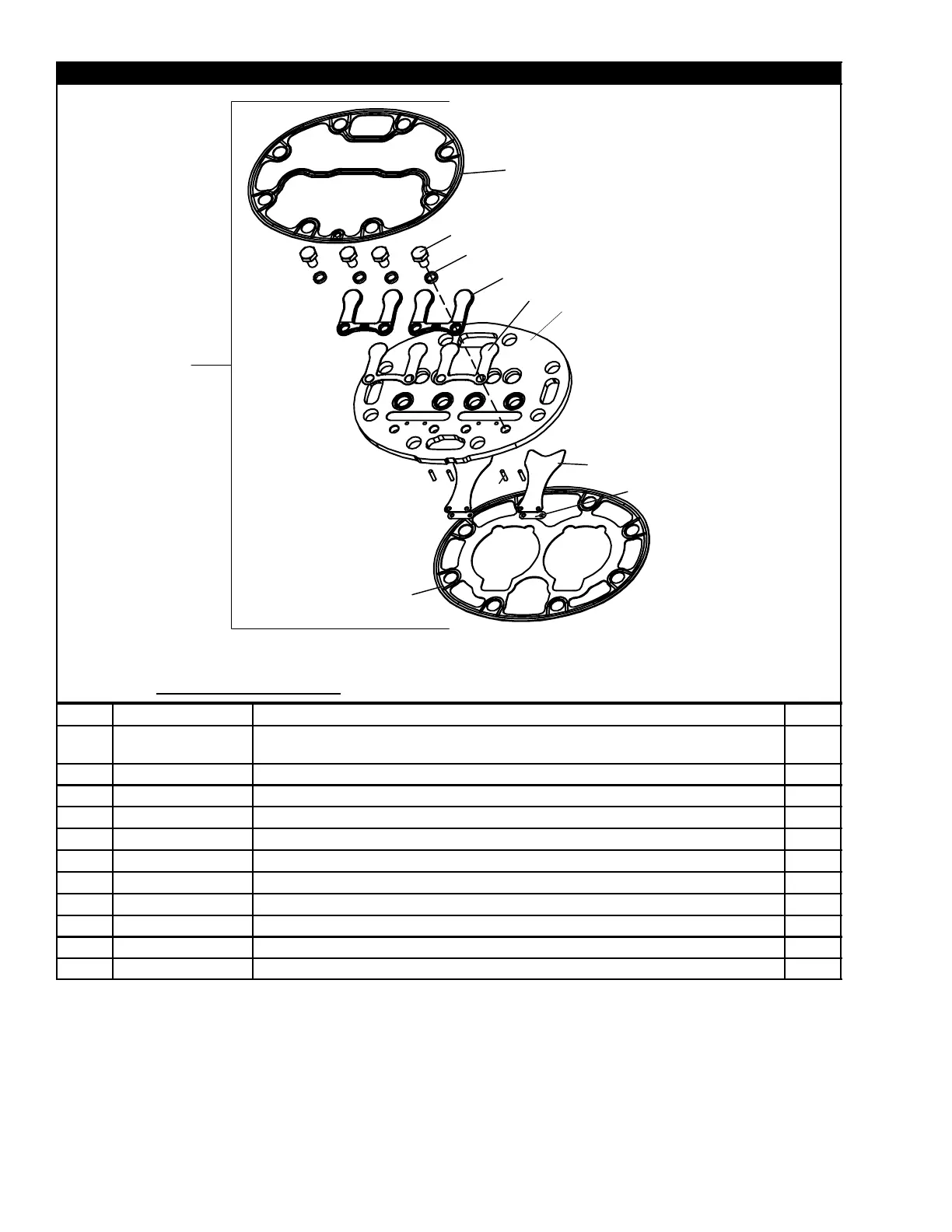

9 VALVE PLATE ASSEMBLY
1
11
2
3
4
5
6
7
8
9
10
CAUTION: The above valve plate can only be used on the Twin Port 05G compressor.
It will not functio n in the previous design (3 port) 05G compressor.
Item Part Number Description Qty
1 17-44742-00
Valve Plate Assembly, Center or Side Bank With No Unloader -
Includes:
1
2 17-44113-00 Capscrew, HexHead, 1/4-28 x 3/8 Inch Long 4
3 17-10715-00 Lockwasher, 1/4 Inch 4
4 17-44750-00 Backer, Discharge Valve 2
5 17-44749-00 Valve, Discharge 2
6 NSS Valve Plate 1
7 17-44748-00 Valve, Suction 2
8 17-40057-00 Dowel, Pin Suction Valve 4
9 17-44751-00 Spring, Suction Valve 2
10 17-44746-00 Gasket, Valve Plate, Center or Side Banks 1
11 17-44747-00 Gasket, Cylinder Head, Center or Side Banks 1
