PREVOST LE MIRAGE XLII BUS SHELLS User Manual

51
8
Wheel
measurement
8-2
How to measure minimum dual spacing
Minimum dual spacing measurement is determined by the tire manufacturer and may be
obtained from the tire manufacturer's handbook. To determine if the Alcoa aluminum
dual wheel assembly has adequate minimum dual spacing for the selected tires, double
the wheel outset measurement of the Alcoa wheel used. If the doubled outset measurement
is equal to or greater than the tire manufacturer's recommendation, there will be
sufficient minimum dual spacing. Wheel inset and outset is given for each Alcoa wheel
on pages 2 and 3. Both inset and outset wheels are measured from the mounting
surface of the wheel to the center line of the rim. Maintaining proper tire inflation
and load ratings are essential to maintaining proper minimum dual spacing.

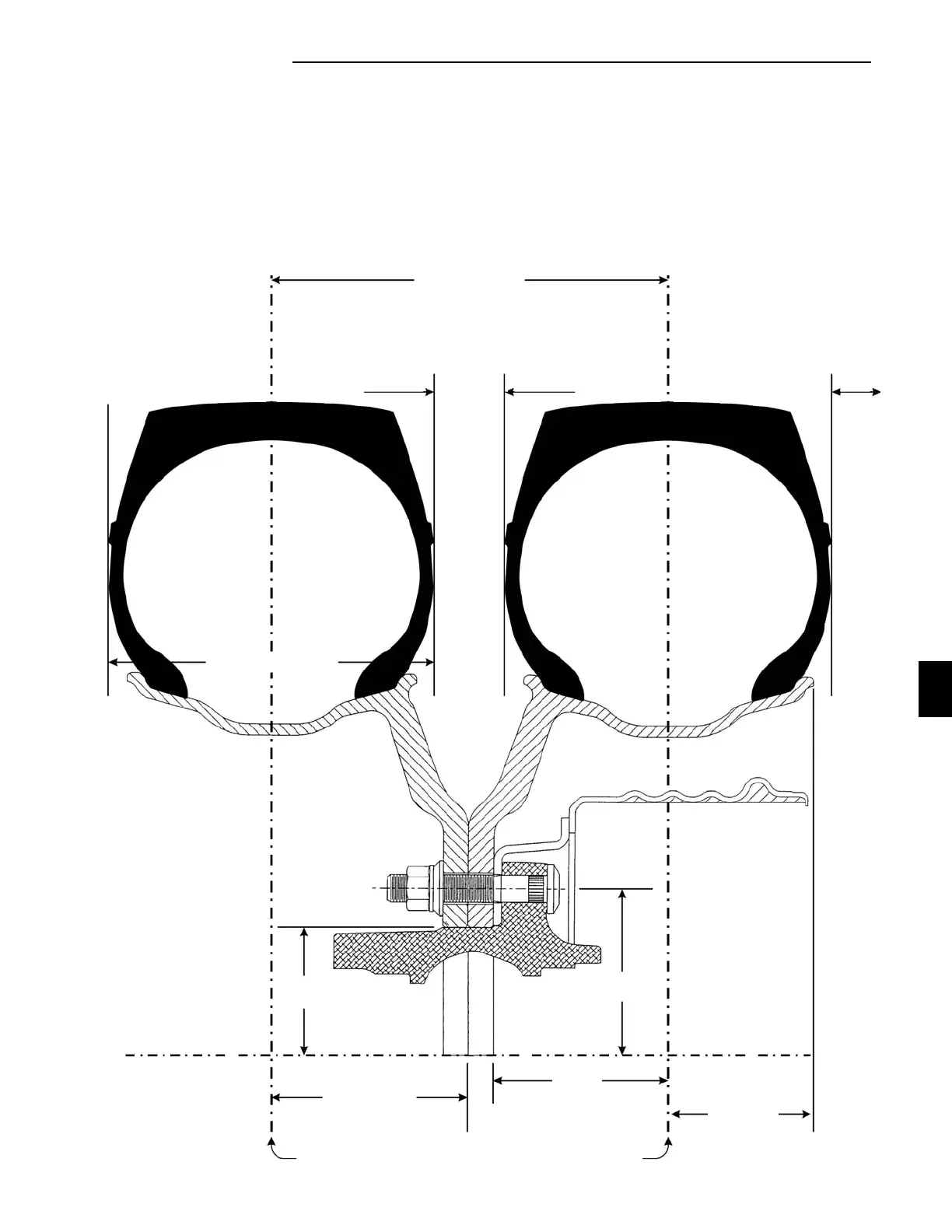

Dual Spacing
Tire Clearance
Vehicle
clearance
Tire section width
Wheel
Inset
Backspace
Tire center line
Tire center line
Wheel outset
(same as offset
or dual spacing)
Center
hole dia.
Bolt
circle dia.
