Section 18: BODY
PA1553
39
If the baggage door locks too tightly or too
loosely, the position of the catch striker is
misadjusted. To adjust, loosen the catch striker
retaining bolts, position the striker correctly and
tighten the retaining bolts.
If the lower part of the baggage door does not
close evenly with the side of the vehicle, adjust
the lock plates by loosening their retaining bolts
and positioning the locking plates correctly (Fig.
37).

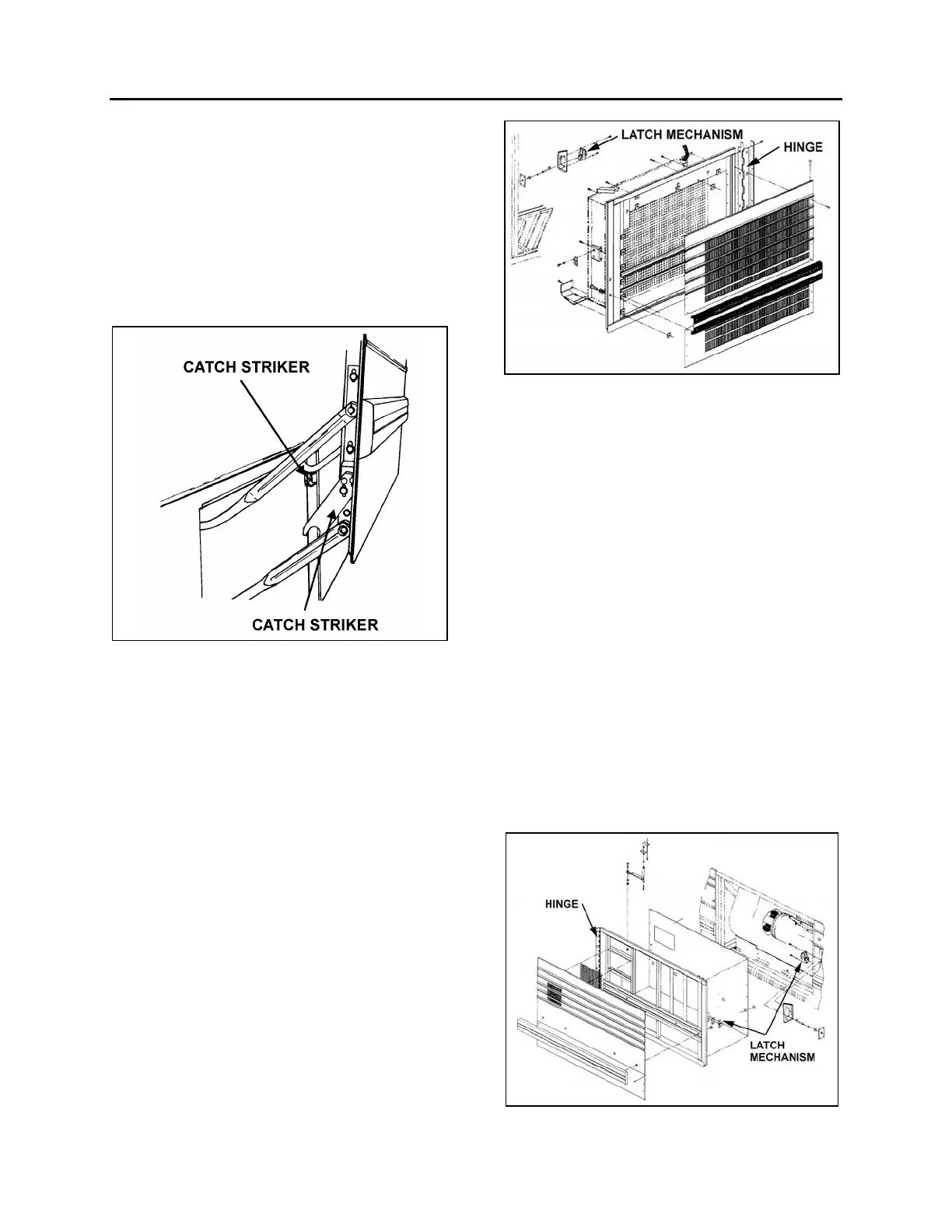

FIGURE 37: BAGGAGE DOOR CATCH STRIKER 18146
For the removal and installation of baggage
compartment door body panels, refer to
procedure PR00177 included at the end of this
section.
6.5.2 Condenser Compartment Door
1. Open the condenser door.
2. Loosen the screws fixing the hinge to hinge
attachment or hinge to door assembly.
Loosening the screws allows the condenser
door assembly to be shifted "LEFT or
RIGHT" and "UP or DOWN" or “IN and
OUT”.
3. Adjust condenser door assembly position at
the hinge.
4. Tighten the screws.
5. Respect the required gap between exterior
finishing panels.
6. Check that the door swings freely and
closes properly. It may be necessary to
adjust the door latch to get proper fit and
operation.
FIGURE 38: CONDENSER DOOR
For the installation of condenser compartment
door body panel, refer to procedure PR00131
included at the end of this section.
6.5.3 Evaporator Compartment Door
1. Open the evaporator door.
2. Loosen the screws fixing the hinge to hinge
attachment or hinge to door assembly.
Loosening the screws allows the evaporator
door assembly to be shifted "LEFT or
RIGHT" and "UP or DOWN" or “IN and
OUT”.
3. Adjust evaporator door assembly position at
the hinge.
4. Tighten the screws.
5. Respect the required gap between exterior
finishing panels.
6. Check that the door swings freely and
closes properly. It may be necessary to
adjust the door latch to get proper fit and
operation.
FIGURE 39: EVAPORATOR DOOR
