Section 18: BODY
PA1553
6
1. VEHICLE EXTERIOR

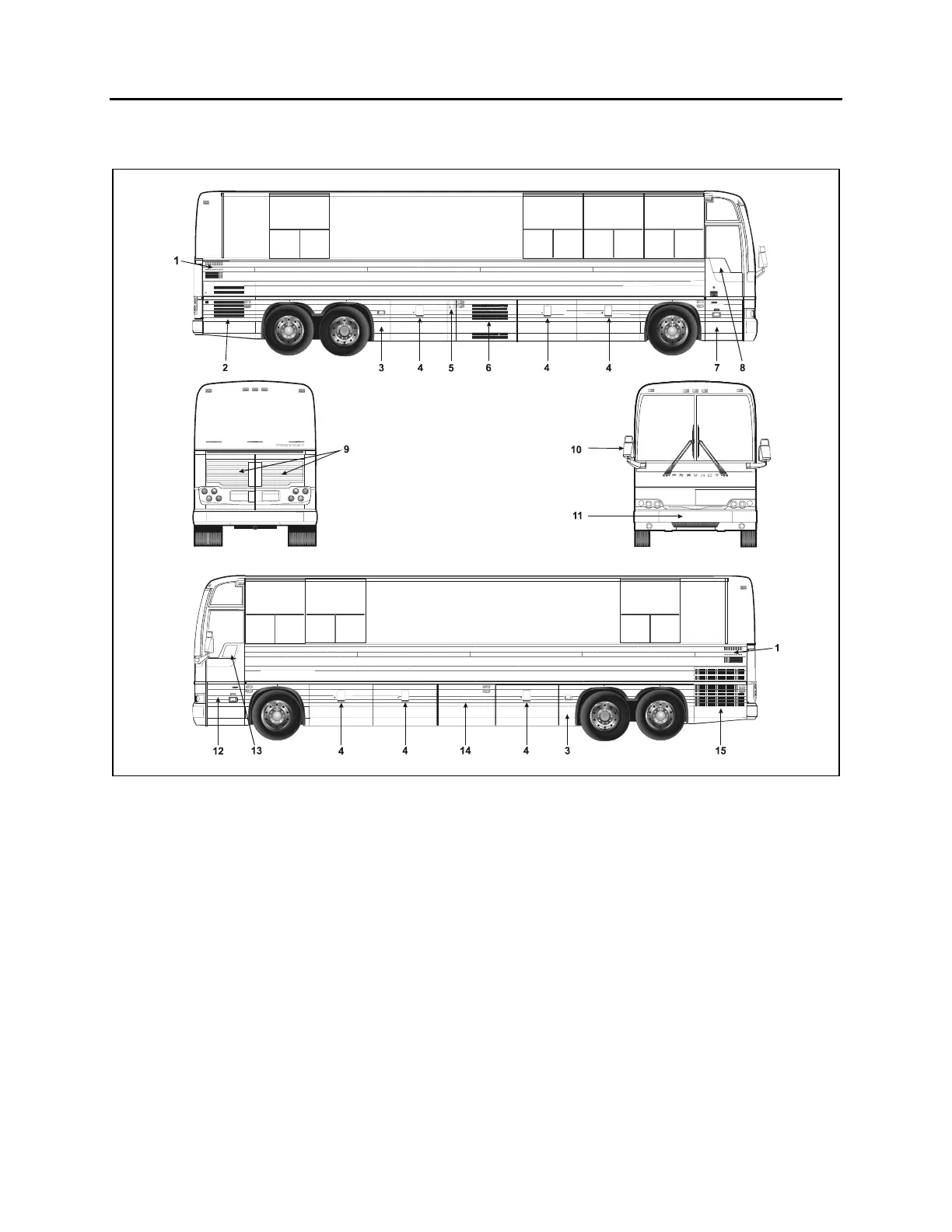

FIGURE 1: XL2-40 CONVERTED VEHICLE EXTERIOR VIEW (TYPICAL)
1. Engine air intake
2. Engine compartment R.H. side door
3. Hinged rear fender
4. Baggage compartment
5. Fuel filler door
6. Condenser compartment or Baggage
compartment
7. Entrance door
8. Entrance door power window
9. Engine compartment rear doors
10. Rear-view mirror
11. Reclining bumper
12. Front electrical & service compartment
13. Driver’s power window
14. Evaporator compartment or Baggage
compartment
15. Radiator door
