16
62--11053

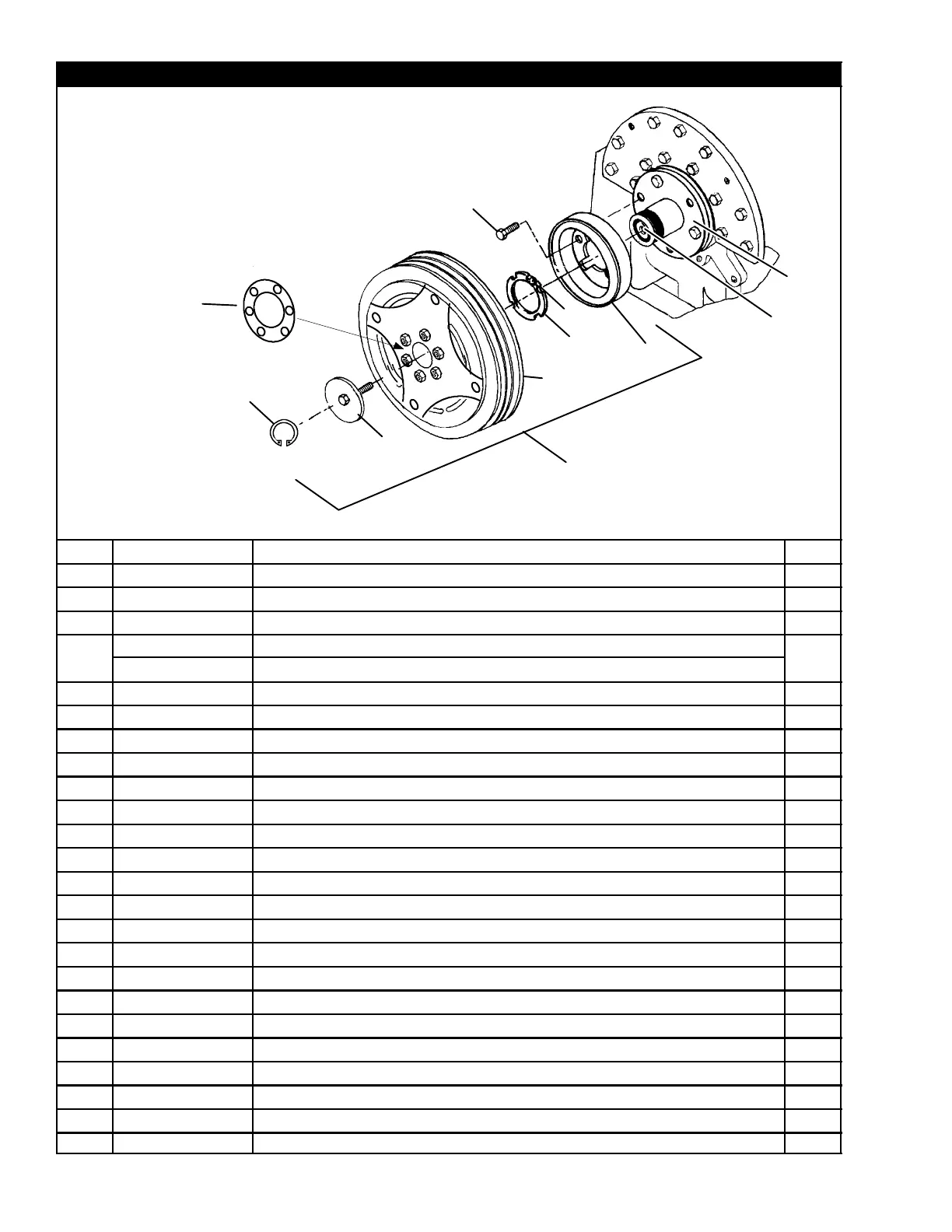

15 CLUTCH ASSEMBLY - HOUSING MOUNTED (LINNIG - GOLD IN COLOR)
8
7
65,
3
2
1
14
Note: Multiple groove rotor/armature designation describes
groove location(s) starting at the compressor side and
working out. Example: 3 Grooves 2B/1A shown below.
4
9
11,12,13
10
Item Part Number Description Qty
NS 76-50013-00 Kit, Conversion Shaft to Housing Mounted Clutch A/R
1 34-50035-00 Ring, Snap 1
2 34-50034-00 Bolt, Retaining, Special 1
3
34-01161-00 Nut, Hub, With Grease Fitting Port (Fitting Not Included)
1
3
34-06083-00 Nut, Hub Without Grease Fitting Port
1
4 40-01132-00 Fitting, Grease, 1/4--18 1
5 17-44041-01 Hub, Clutch Mounting - Includes: 1
6 17-44042-00 Ring, Felt and Retainer 1
7 68-G---2--9072 Key, Crankshaft, Special 1
8 17-10308-00 Capscrew, Hex Head, 3/8-16 x 1-1/4 Inches Long - SAE Grade 8 1
9 50-00226-09 Clutch Assembly, 24 VDC, 4 Grooves (2A/2B), 10.35 Inch Dia. - Includes: 1
10 50-00226-50 Coil, 24 VDC 1
11 50-00226-501 Rotor/Armature, 4 Grooves (2A/2B), 10.35 Inch Diameter - Includes: 1
12 50-50040-05 Ring, Snap 1
13 50-50040-04 Bearing 1
9 50-00226-09 Clutch Assembly, 24 VDC, 4 Grooves (A/B/2C), 10 Inch Dia. - Includes: 1
10 50-00226-50 Coil, 24 VDC 1
11 50-01130-13 Rotor/Armature, 4 Grooves (A/B/2C), 10 Inch Diameter - Includes: 1
12 50-50040-05 Ring, Snap 1
13 50-50040-04 Bearing 1
9 50-00226-18 Clutch Assembly, 12 VDC, 4 Grooves (2B/2A), 10.35 Inch Dia. - Includes: 1
10 50-00226-41 Coil, 12 VDC 1
11 50-50040-11 Rotor/Armature, 4 Grooves (2B/2A), 10.35 Inch Diameter - Includes: 1
12 50-50040-05 Ring, Snap 1
13 50-50040-04 Bearing 1
