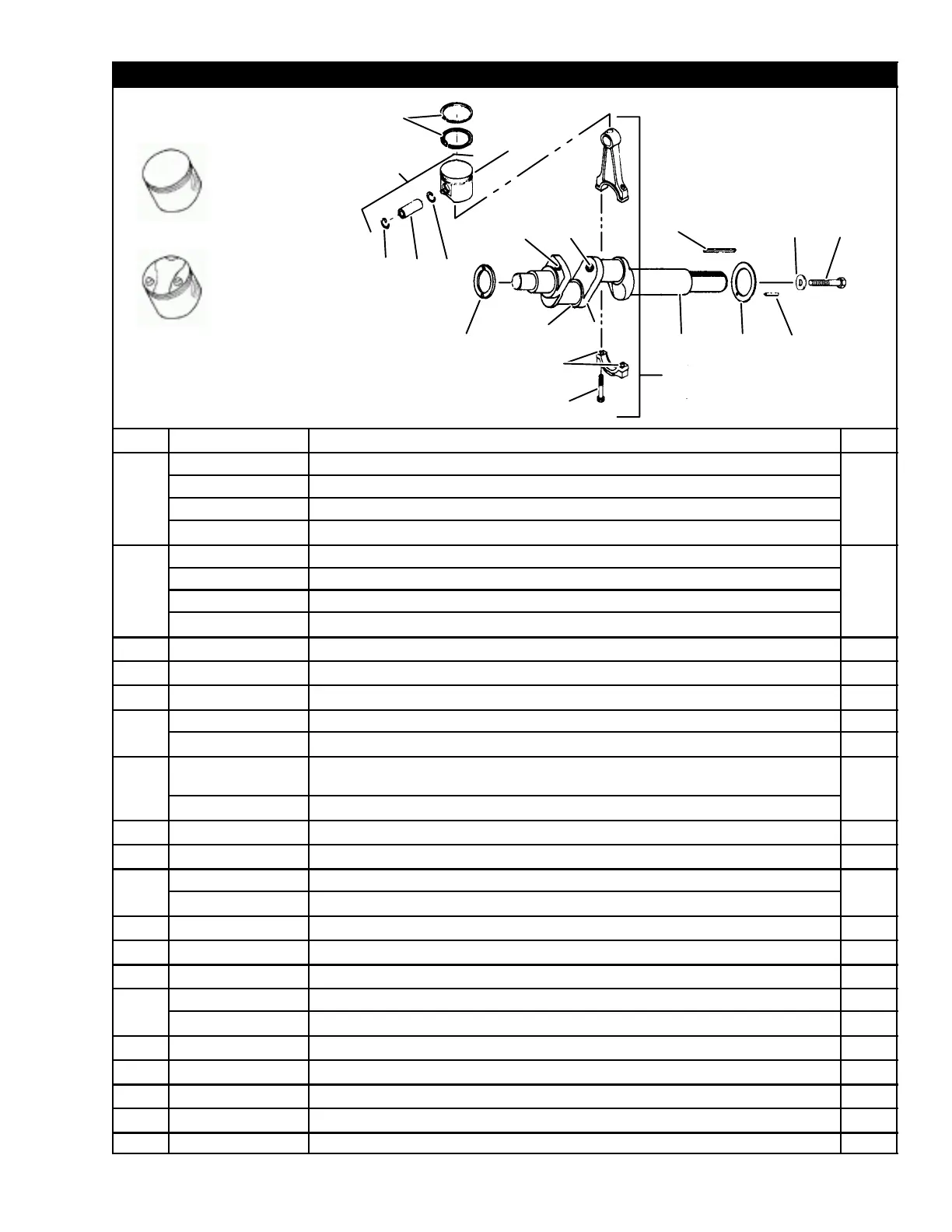

5 CRANKSHAFT, ROD AND PISTON GROUP
12
11
10
9
8
7
6
5
4
3
2
18
17
16
15
14
13
2
10
1
Flat (Bus)
Contoured
(Truck/Trailer)
Item Part Number Description Qty
17-44045-01 Piston, 05G37 CFM, Flat, Standard - Includes:
1
17-44045-03 Piston, 05G37 CFM, Flat, .020 Inch Oversize - Includes:
6
1
17-44121-01 Piston, 05G41 CFM, Flat, Standard - Includes:
6
17-44122-01 Piston, 05G41 CFM, Flat, .020 Inch Oversize - Includes:
17-44070-00 Piston, 05G37 CFM, Contoured, Standard - Includes:
1
17-44071-00 Piston, 05G37 CFM, Contoured, .020 Inch Oversize - Includes:
6
1
17-44072-00 Piston, 05G41 CFM, Contoured, Standard - Includes:
6
17-44073-00 Piston, 05G41 CFM, Contoured, .020 Inch Oversize - Includes:
2 17-40053-00 Retainer, Piston Pin 2
3 NSS Pin, Piston 1
4 NSS Piston 1
5
17-40055-00 Ring, Compression (Standard) 12
5
17-55025-00 Ring, Compression (.020 Inch Oversize) 12
6
17-40324-00
Key, Crankshaft, 1/4 x 1/4 x 1-1/2 Inches Long (For Shaft Mounted
or No Clutch)
1
6
68G2-9072 Key, Crankshaft (For Housing Mounted Clutch)
1
7 17-44036-00 Pin, Spiral, 1/8 x 1/2 Inch Long 2
8 17-44008-00 Thrustwasher, Seal End 1
9
17-44074-00 Crankshaft Assembly, 05G37 CFM (05G Twin Port) - Includes:
1
9
17-44075-00 Crankshaft Assembly, 05G41 CFM (05G Twin Port) - Includes:
1
10 17-40317-00 Expansion Plug 2
11 AF55CQ164 Setscrew, 1/4-28 x 1/2 Inch Long 1
12 34-00300-07 Capscrew, Hex Head, 1/4-20 x 7/8 Inch Long - Grade 5 1
1
3
17-40056-02 Connecting Rod and Cap Assembly (Standard) - Includes: 6
1
3
17-55023-00 Connecting Rod and Cap Assembly (.010 Inch Undersize) - Includes: A/R
14 17-40057-00 Pin, Dowel 2
15 17-55008-00 Capscrew (Special) 2
16 17-55009-01 Thrustwasher, Pump End 1
17 34-00616-00 Washer, 13/32 ID x 1-1/2 OD x 3/16 Thick 1
18 34-00613-07 Capscrew, Hex Head, 3/8-24 UNF x 7/8 Inch Long - SAE Grade 8 1
