6.4 ZONE 4

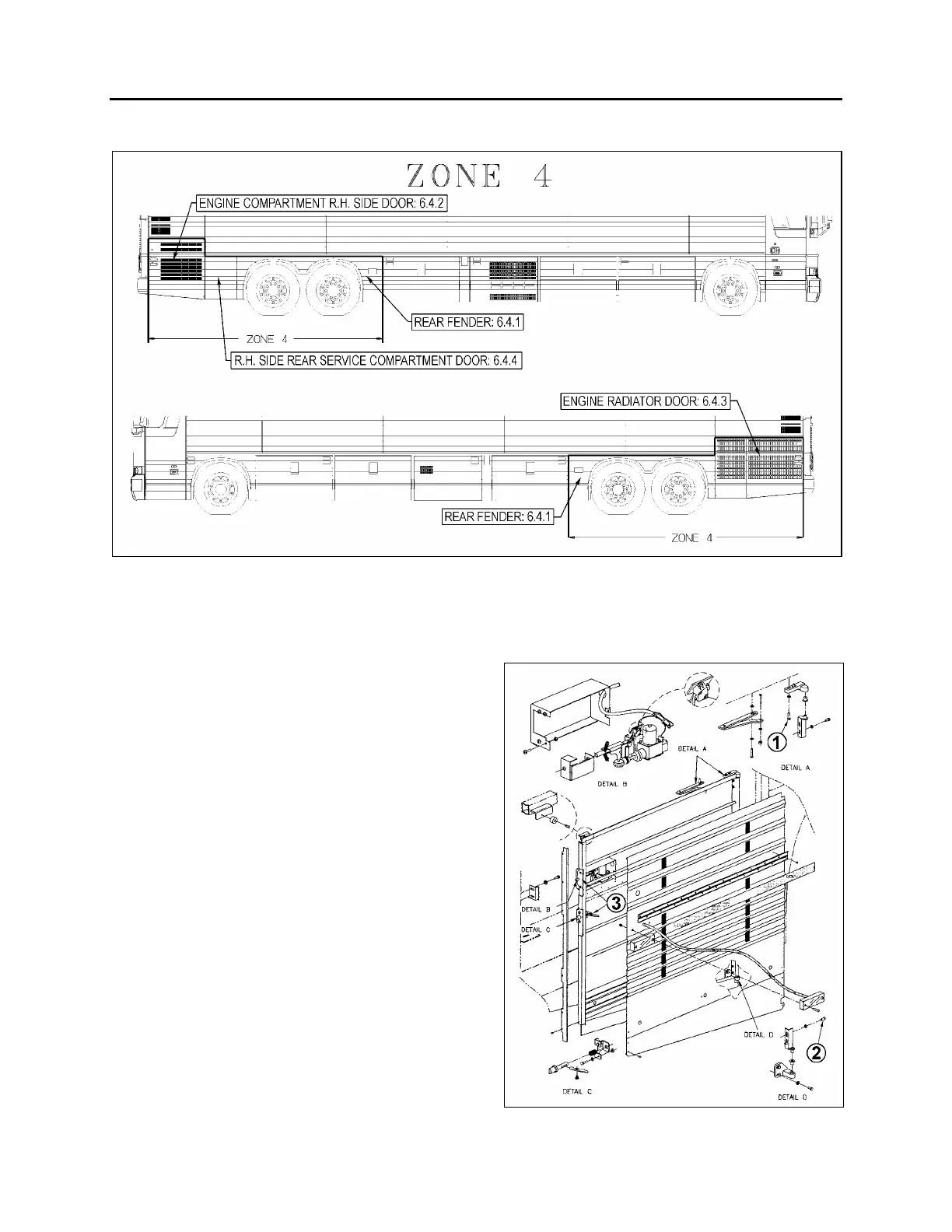

FIGURE 30: ZONE 4
6.4.1 Rear Fender
On the "XLII MTH" series vehicles, rear fenders
are hinged for maintenance on brakes and
suspension. Each rear fender panel has two
mechanical spring loaded holding devices fixing
it to the vehicle’s structure. Push the spring type
rod sideways to disengage the lock.
For the installation of rear fender body panel,
refer to procedure PR470046 included at the
end of this section.
6.4.2 Engine Compartment R.H. Side Door
Engine compartment R. H. side door may be
adjusted for proper fit by untightening hinge
bolts:
1. Loosen the bolts, (1, Fig. 31) holding the
hinge to the vehicle structure to shift the
door "IN or OUT" and "UP or DOWN".
2. Loosening the bolts (2, Fig. 31) allows the
door to be shifted "LEFT or RIGHT" and "UP
or DOWN".
3. Adjust the door position depending on the
gap needed between exterior finishing
panels.
4. Tighten the bolts.
5. Check that the door swings freely and
closes properly. It may be necessary to
adjust the door latch to get proper fit and
operation.
FIGURE 31: ENGINE COMPARTMENT R.H. SIDE DOOR18635
