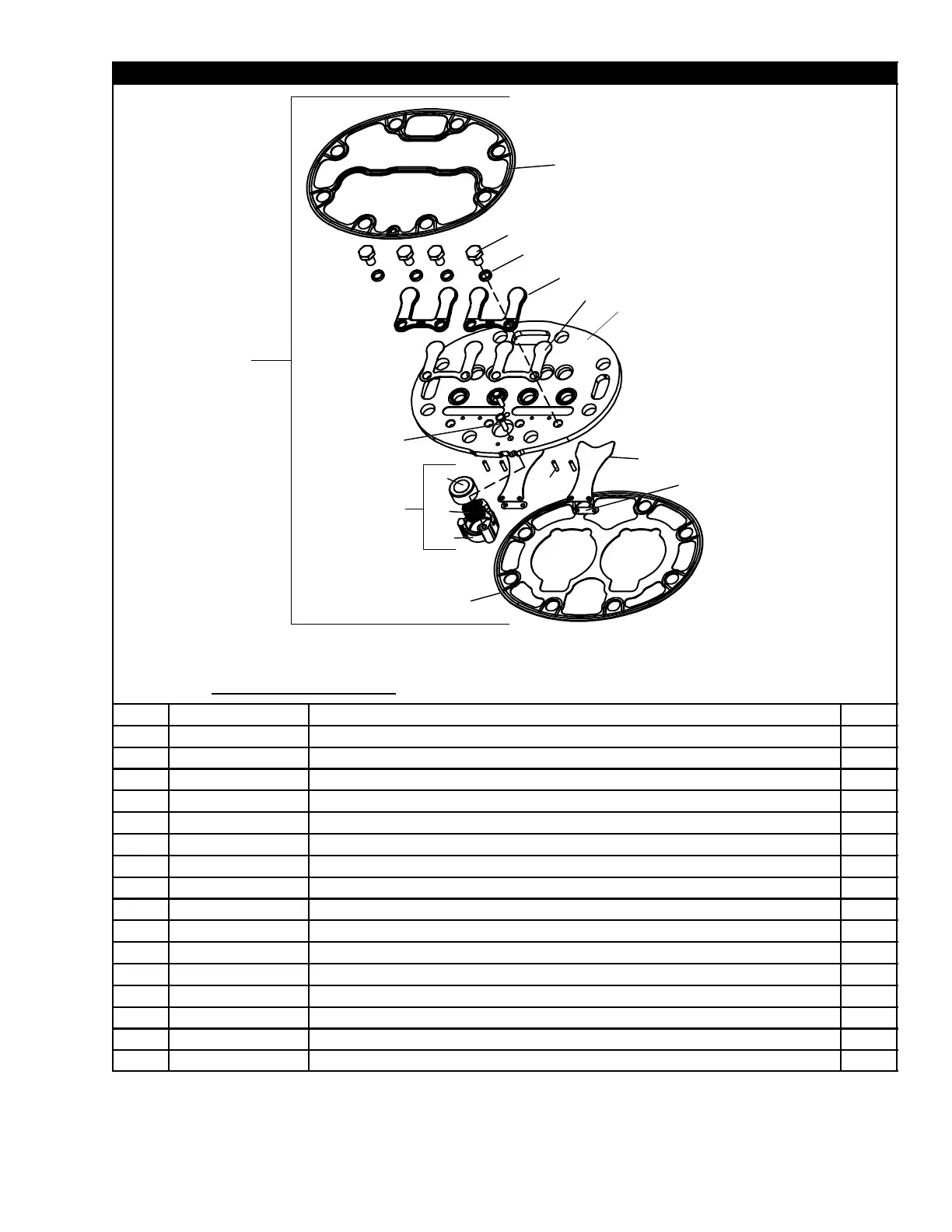

10 UNLOADER VALVE PLATE ASSEMBLY
10
2
3
4
5
6
7
8
9
13
1
11
12
14
CAUTION: The above valve plate can only be used on the Twin Port 05G compressor.
It will not functio n in the previous design (3 port) 05G compressor.
15
16
Item Part Number Description Qty
1 17-44744-00 Valve Plate Assembly, Side Bank With Unloader - Includes: 1
2 17-44113-00 Capscrew, HexHead, 1/4-28 x 3/8 Inch Long 4
3 17-10715-00 Lockwasher, 1/4 Inch 4
4 17-44750-00 Backer, Discharge Valve 2
5 17-44749-00 Valve, Discharge 2
6 NSS Valve Plate 1
7 17-44748-00 Valve, Suction 2
8 17-40057-00 Dowel, Pin Suction Valve 4
9 17-44751-00 Spring, Suction Valve 2
10 17-55012-00 Check Valve, Unloader, - Includes: 1
11 17-40104-08 Piston, Check Valve 1
12 17-40104-09 Spring, Check Valve 1
13 NSS Screw, Round Phillips Head, #6-32 x 1/2 Inch Long 2
14 NSS Body Check Valve 1
15 17-44746-00 Gasket, Valve Plate, Center or Side Banks 1
16 17-44747-00 Gasket, Cylinder Head, Center or Side Banks 1
