Section 14: STEERING
PA1553
8
7. You must use a puller to remove pitman arm.
11.2 INSTALLATION
1. Position pitman arm on sector gear shaft with
reference marks aligned.
2. Install fixing nut (Prévost #661050). Tighten
nut to 470-570 lbf-ft (637-773 Nm).
NOTE
Use a new nut if the previously removed nut
was punched.
3. Lock nut with sector shaft using a punch mark
into the groove (Refer to figure 8).

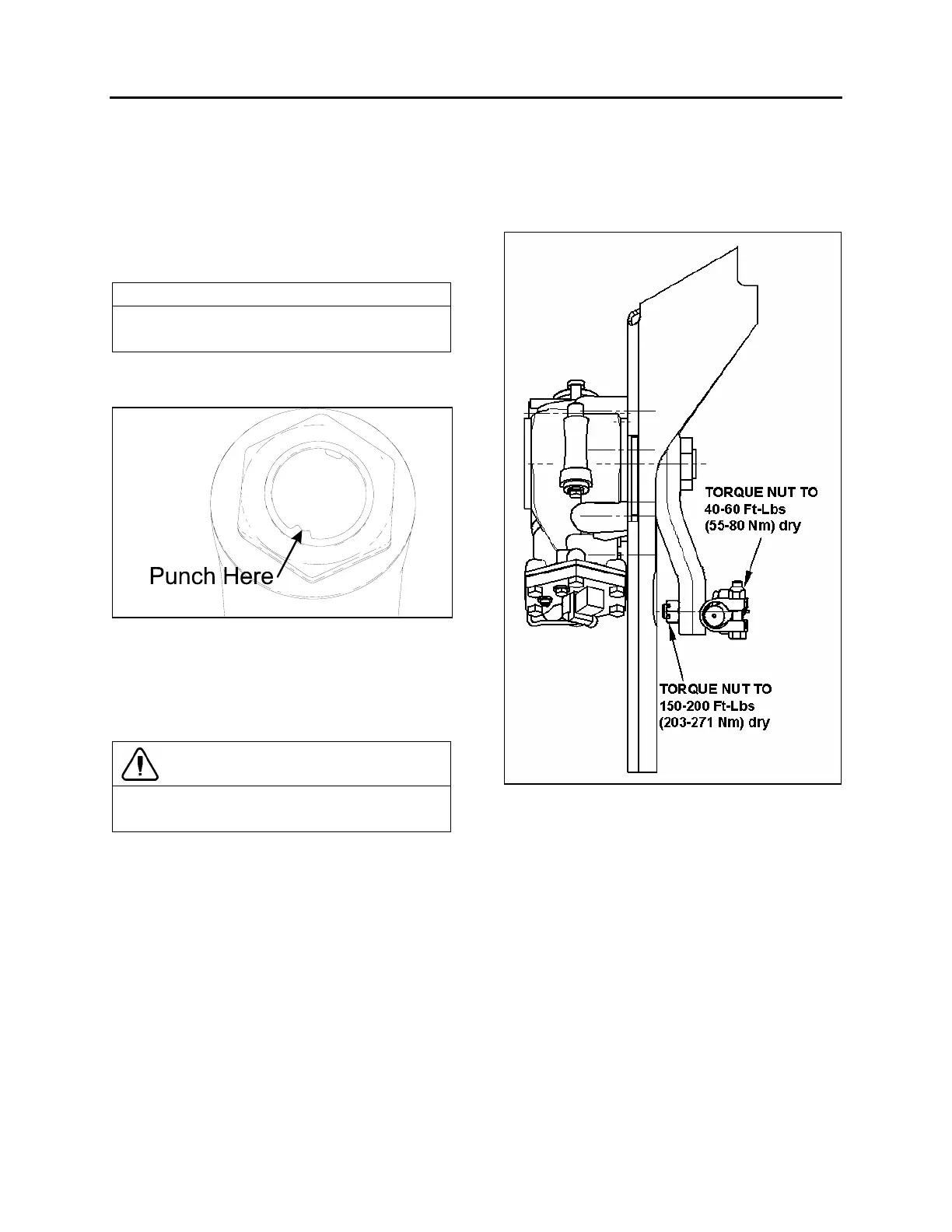

FIGURE 8: FIXING NUT PUNCH MARK 16098
4. Connect drag link to pitman arm while
ensuring that rubber stabilizer is in place on
the rod end. Install washers. Tighten nut to
150-200 lbf-ft (203-271 Nm). Afterwards,
install a new cotter pin.
CAUTION
Input shaft marks must be aligned before
adjusting pitman arm.
11.3 ADJUSTMENT
1. Disconnect the drag link from pitman arm.
Center steering wheel by dividing the total
number of steering wheel turns in two. Scribe
a reference mark on steering gearbox at the
center previously determined.
2. Using a protractor, check the angle of the
pitman arm (refer to Fig. 7 for details).
3. The pitman arm should be adjusted with
reference marks aligned or to an angle of
90° in relation with the vertical axis (towards
front of vehicle). If not, unscrew and remove
fixing nut. Remove the pitman arm according
to the procedure outlined under previous
heading "Pitman arm removal". Adjust to the
proper angle.
4. When adjustment is achieved, replace fixing
nut and torque to 470-570 lbf-ft (637-773
Nm).
FIGURE 9: DRAG LINK INSTALLATION 14065
12. MAINTENANCE
The power steering system requires little
maintenance. However, the system should be
kept clean to ensure maximum operating
performance and troublefree service. Periodic
inspections should also be made to check for
leakage and all parts for damage or distortion.
Insure all fasteners are tight (see "14.
Specifications" for recommended tightening
torques.
When the slightest evidence of dirt, sludge or
water is discovered in the system, disconnect fluid
lines at the power steering gear to drain the
system. Drain and refill the system with "Dexron-
IIE or Dexron-III" automatic transmission oil.
