Repair and Testing Instructions for T1 Page 45
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC
11.3.9 Open Phase of Stator

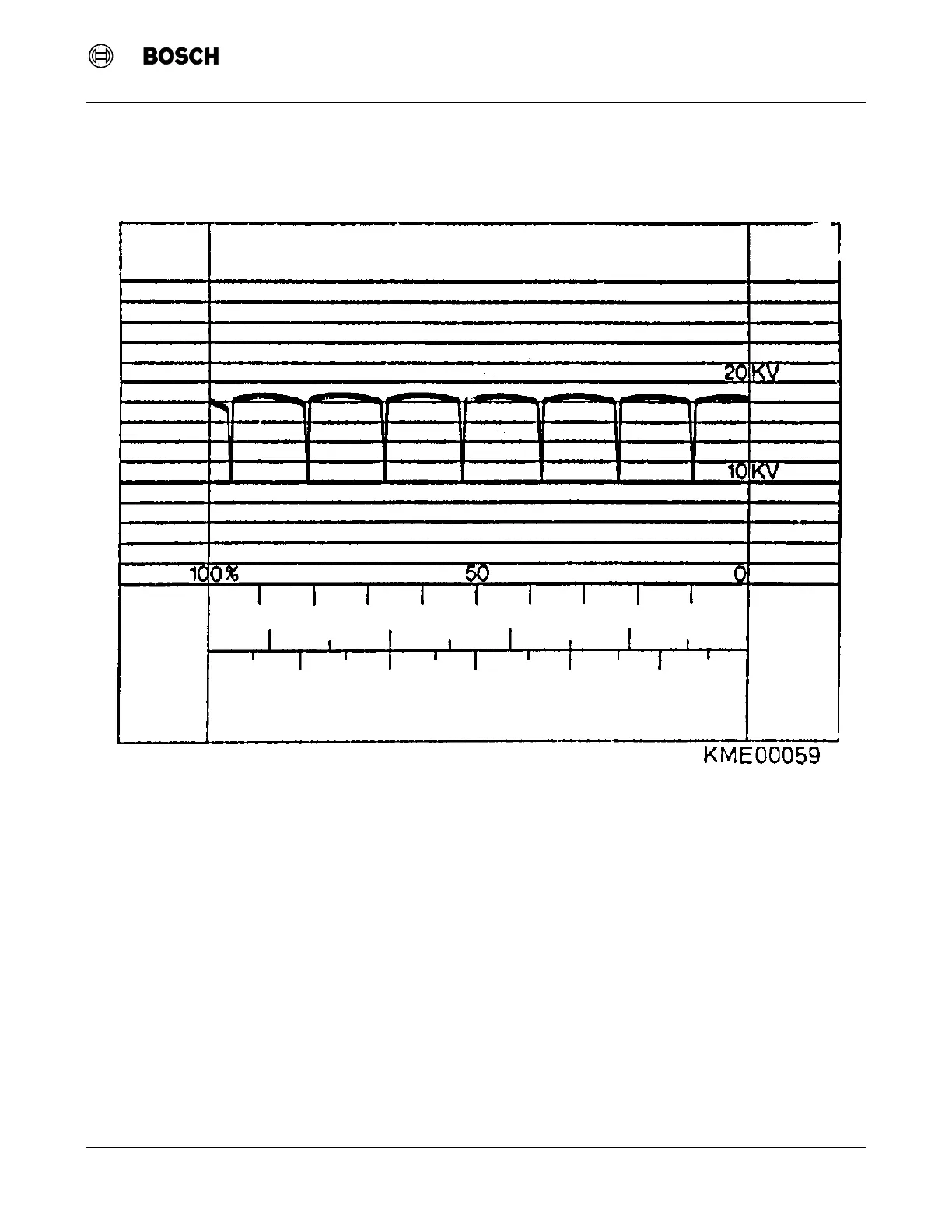

This pattern illustrates a stator with an open phase winding. This type of defect would require replacement of
the stator.
Figure 47 Open Stator Phase
