PREVOST LE MIRAGE XLII BUS SHELLS User Manual

Section 26: XLII SLIDE-OUT
PA1553
31

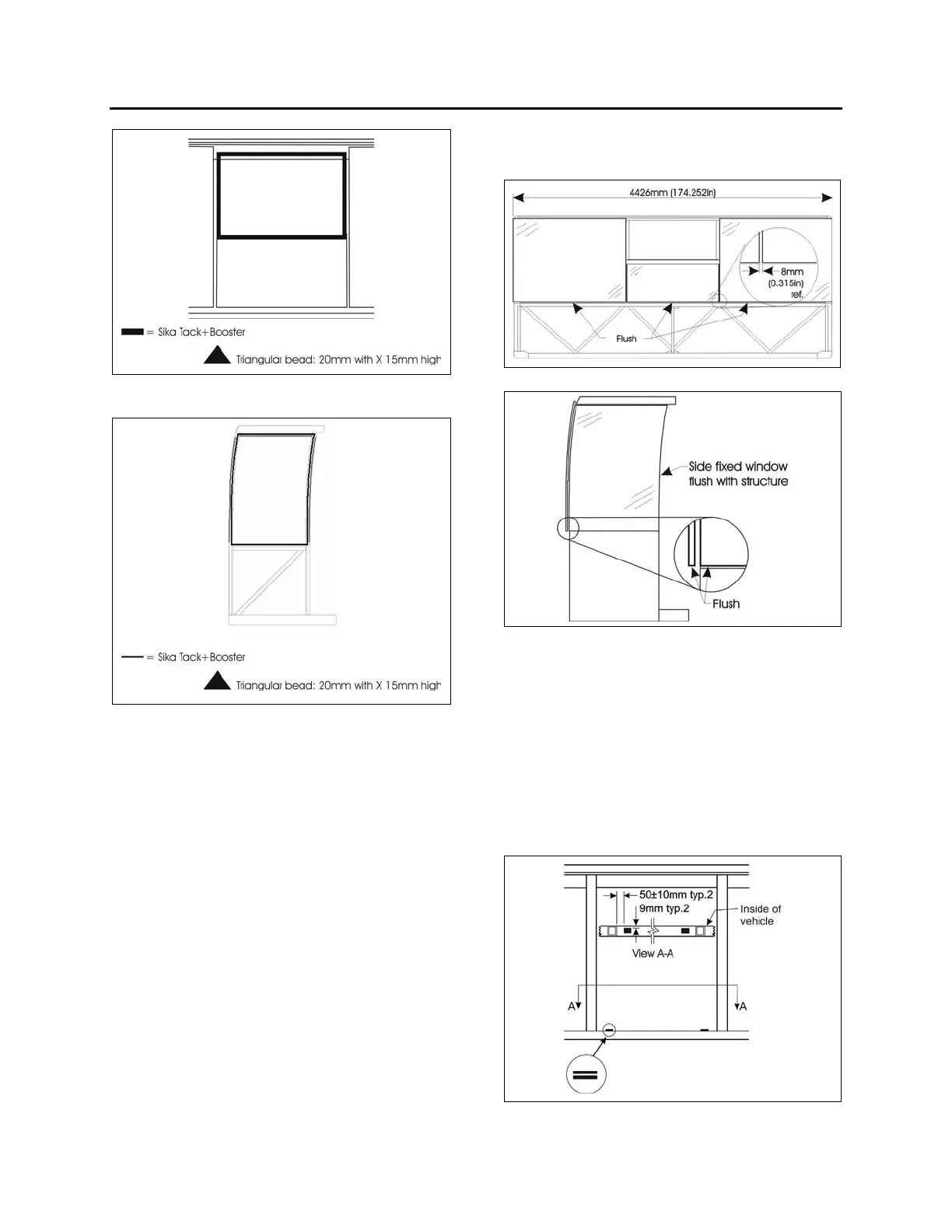

FIGURE 57 : FACE FIXED HALF-WINDOW INSTALLATION
– SIKA TACK+BOOSTER
FIGURE 58 : SIDE FIXED WINDOW – SIKA TACK +
BOOSTER
3. Apply appropriate double face self adhesive
tape on the slide-out structure (sees
FIGURE 52 for face fixed windows or
FIGURE 53 for side fixed window).
4. Clean window with appropriate window
cleaner.
5. Apply Sika Aktivator on the window pane as
per FIGURE 54 or FIGURE 55.
6. Apply Sika Tack+Booster as per FIGURE 56
FIGURE 57 or FIGURE 58 (triangular bead:
20mm width X 15mm high).
7. Install the windows on the slide-out structure
(see FIGURE 59 or FIGURE 60).
8. Press the jigs on the windows and wait for
the adhesive to dry (90 minutes minimum).
9. After drying, apply Sika 221 as a finishing
joint. Clean excess with Sika 208.
10. Refer to section 16.11 for the finishing joint
application procedure.
FIGURE
59 : FACE FIXED WINDOW INSTALLATION
FIGURE
60 : SIDE FIXED WINDOW
16.9 AWNING WINDOW
INSTALLATION
1. Clean and prepare the windows and the
slide-out structure surfaces with appropriate
cleaner, abrasives and primers.
2. Glue on the structure horizontal member, 4
rubber bumpers (#5061020), placing them 2
by 2 to have a total thickness of 1/16"
(FIGURE 61).
FIGURE 61: AWNING WINDOW - RUBBER BUMPER
INSTALLATION
