Repair and Testing Instructions for T1 Page 14
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC
8 Exploded View

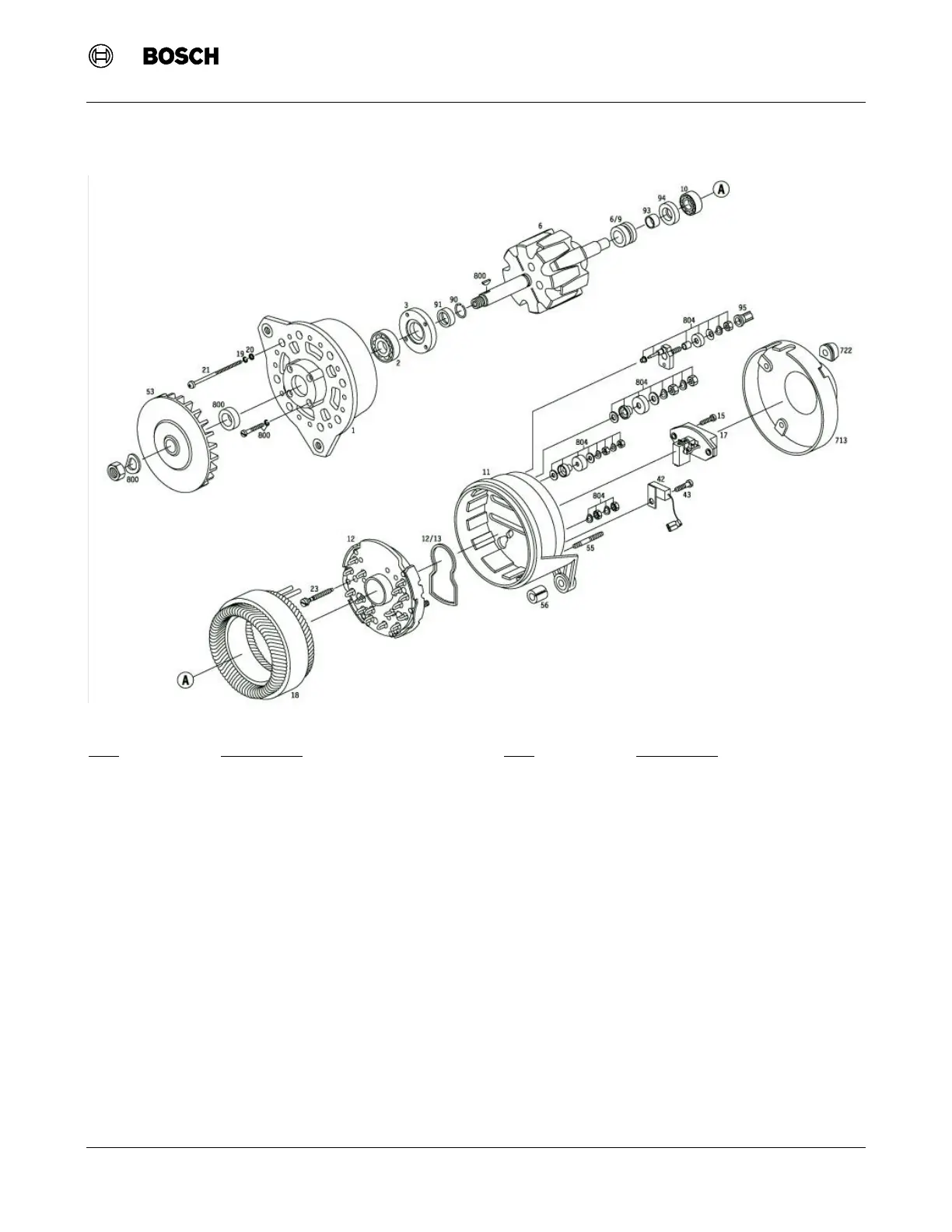

Figure 4 Alternator Exploded View
Item Designation
1 Drive End Shield
2 Ball Bearing
3 Cover Plate
6 Rotor
6/9 Collector Ring
10 Roller Bearing
11 Collector-Ring End Shield
12 Rectifier
12/13 Seal
15 Washer & Screw Assembly
17 Transistor Regulator
17/3/8 Compression Spring
17/3/801 Carbon-Brush Set
17/10 Gasket
18 Stator
19 Spring Lock Washer
Item Designation
20 Plain Washer
21 Oval-Head Screw
23 Washer & Screw Assembly
42 Suppression Capacitor
43 Oval-Head Screw
53 Fan
55 Stud
56 Expansion Bushing
90 Retainer
91 Support Ring
93 Spacer Ring
94 Radial Seal
95 Protective Cap
713 Air-Intake Cover
722 Grommet
