PREVOST LE MIRAGE XLII BUS SHELLS User Manual

Section 18: BODY
PA1553
40
For the installation of evaporator compartment
door body panel, refer to procedure PR00133
included at the end of this section.
6.5.4 Fuel Filler Door
o Open the fuel filler door.
o Loosen the screws holding the panel to
hinge assembly.
o Adjust the fuel filler door position according
to distance required between exterior finish-
ing panels.
o Tighten the nuts.
o Check that the door swings freely and
closes properly.

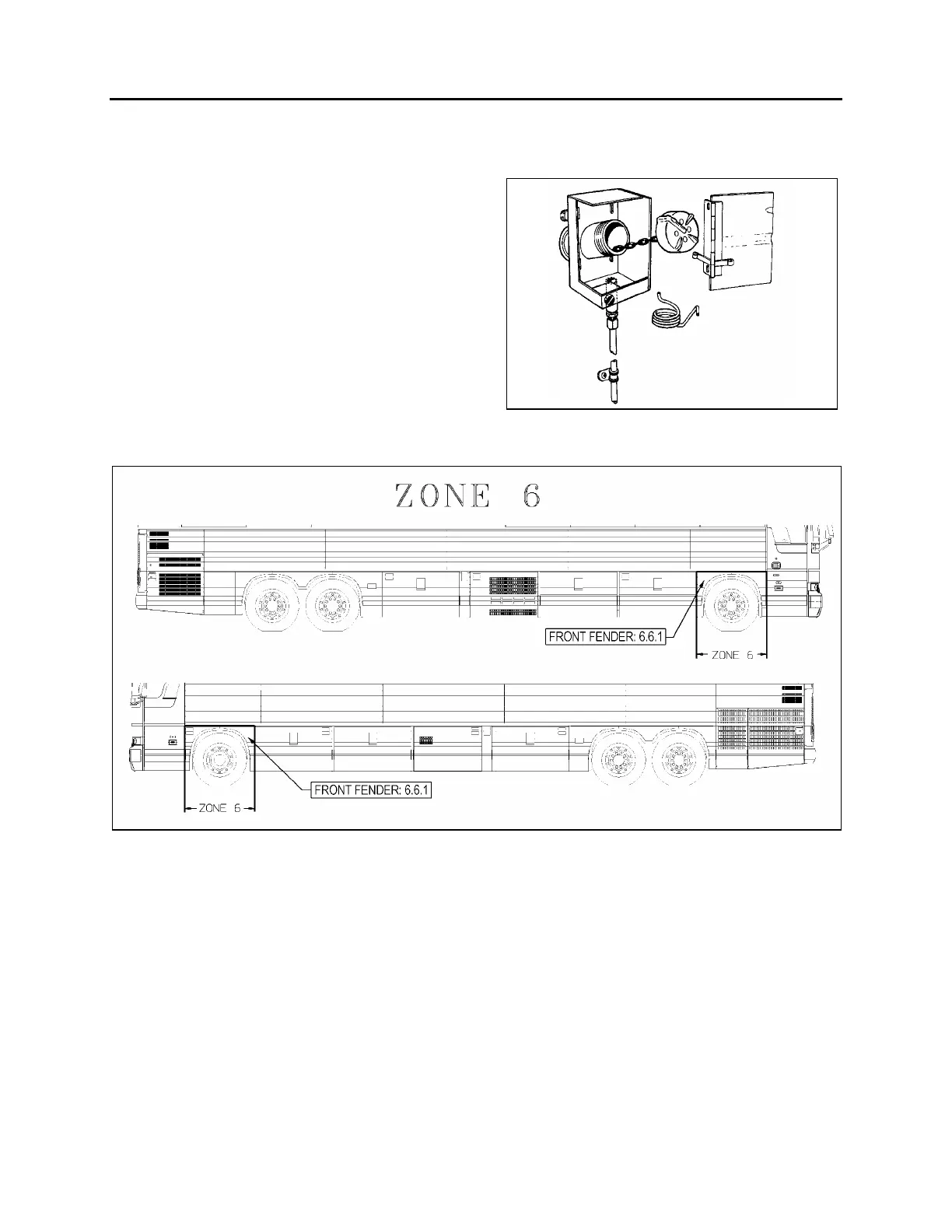

FIGURE 40: FUEL FILLER DOOR 03046
6.6 ZONE 6
FIGURE 41: ZONE 6
6.6.1 Front Fender
Front fender may be removed using the following procedure:
Remove the nuts on the inside of the fender. Remove the fender from the vehicle. To reinstall, reverse
the procedure.
For the installation of front fender body panel, refer to procedure PR470024 included at the end of this
section.
