Section 05: COOLING SYSTEM
PA1553
16
NOTE
Use a straight edge to measure engine
pulley's vertical angle (Fig. 20).
5. Check alignments again (steps 2, 3 & 4) then
replace temporary anchoring nuts
(P/N 500709) (74, Fig. 18) with four nuts
(P/N 500714) (47, Fig. 18) and tighten using
a wrench.

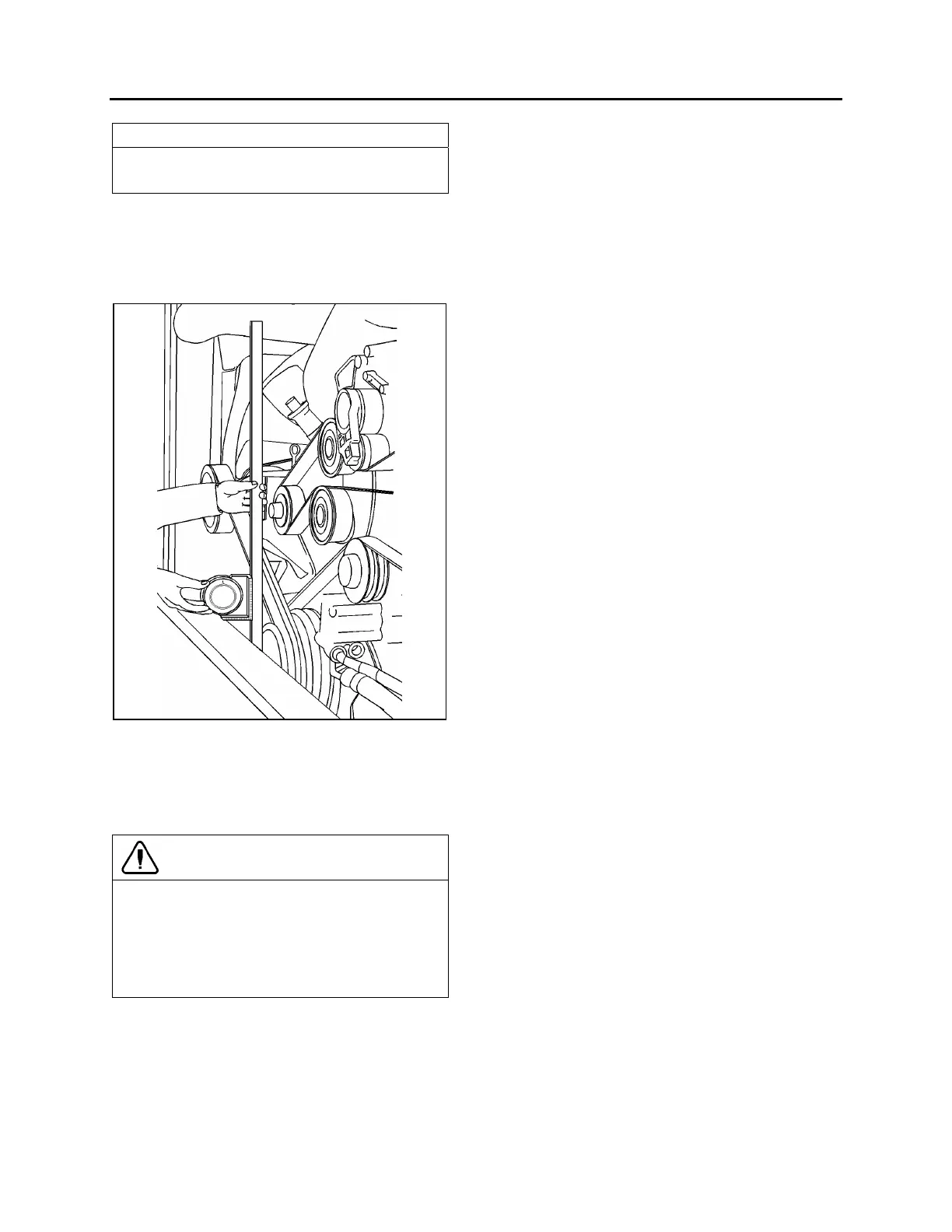

FIGURE 20: PULLEY VERTICAL ANGLE 05063
6. Align multi "V" pulley with fan pulley. Adjust
the depth of the pulley on the gearbox shaft.
7. Set belt tensioner pressure regulating valve
to 50 PSI - 345 kPa.
CAUTION
In order for tensioning system to work
properly, adjust upper tensioning bracket to
provide a ¼" (7 mm) gap between stopper
and bracket. Otherwise, release tension on
system and readjust distance using bolts
securing upper tensioning bracket (Fig. 16).
.
