PREVOST LE MIRAGE XLII BUS SHELLS User Manual

Section 06: ELECTRICAL
PA1553
9

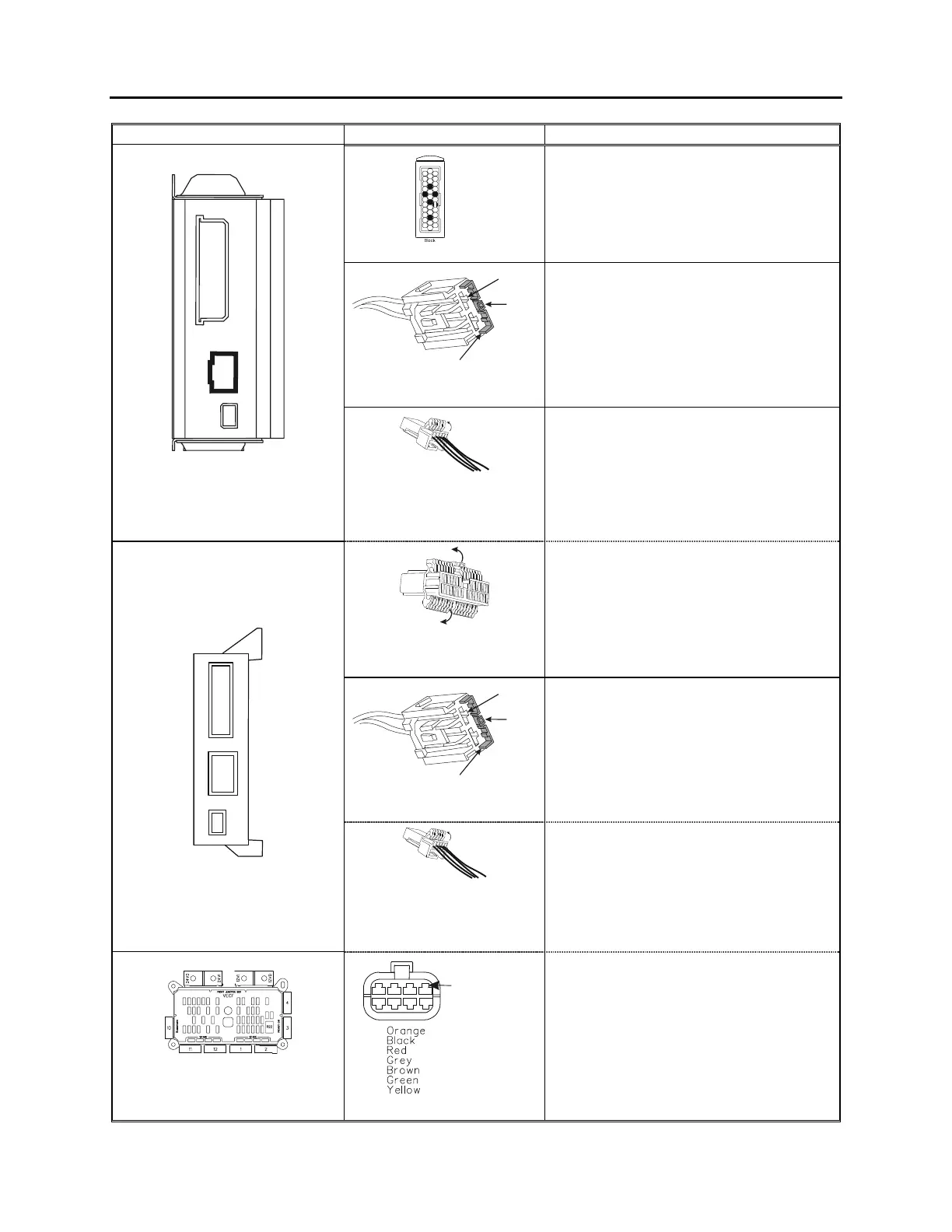

Multiplex modules Connector type Terminal removal
A
MP 06628
EXTRACTOR/TOOL: Prevost #683594
Insert the extractor on the front of the connector.
Remove the terminal by disengaging the flexible
lock tabs on the terminal. Gently remove the
terminal from the connector by pulling on the wire.
S
E
CO
NDARY L
OC
K
TAB
INSERT
EXTRACTO
R
HERE
grey
06629
YAZAKI
EXTRACTOR/TOOL: Packard #12094430
Using a small flat blade screwdriver, open the
hinged secondary lock. Insert the extractor on the
front of the connector, over the terminal cavity.
Remove the terminal by disengaging the flexible
lock tab on the terminal. Gently remove the
terminal from the connector by pulling on the wire.
IO-B
06625
green
06630
JAE
EXTRACTOR/TOOL: Prevost #683766
Using a small flat blade screwdriver, open the
hinged secondary lock. Insert the extractor on the
front of the connector, over the terminal cavity.
Remove the terminal by disengaging the flexible
lock tab on the terminal. Gently remove the
terminal from the connector by pulling on the wire.
green, blue (CECM)
JAE
06631
EXTRACTOR/TOOL: Prevost #683766
Using a small flat blade screwdriver, open both
hinged secondary locks. Insert the extractor on
the front of the connector, over the terminal cavity.
Remove the terminal by disengaging the flexible
lock tab on the terminal. Gently remove the
terminal from the connector by pulling on the wire.
S
E
CO
NDARY L
OC
K
TAB
INSERT
EXTRACTO
R
HERE
grey
06629
YAZAKI
EXTRACTOR/TOOL: Packard #12094430
Using a small flat blade screwdriver, open the
hinged secondary lock. Insert the extractor on the
front of the connector, over the terminal cavity.
Remove the terminal by disengaging the flexible
lock tab on the terminal. Gently remove the
terminal from the connector by pulling on the wire.
IO-A
06626
green
06630
JAE
EXTRACTOR/TOOL: Prevost #683766
Using a small flat blade screwdriver, open the
hinged secondary lock. Insert the extractor on the
front of the connector, over the terminal cavity.
Remove the terminal by disengaging the flexible
lock tab on the terminal. Gently remove the
terminal from the connector by pulling on the wire.
VECF
06627
INSERT
EXTRACTOR
HERE
06632
BUSSMAN
EXTRACTOR/TOOL: Prevost #682256 (Packard
12094429)
Remove the terminal by disengaging the flexible
lock tab on the terminal. Gently remove the
terminal from the connector by pulling on the wire.
