Repair and Testing Instructions for T1 Page 23
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC
3. Press out rotor.
4. Remove spacer ring from rotor shaft.
Notes: Protect the threads of the rotor from damage prior to pressing. Always replace the drive end bearing if
the rotor has been pressed out. Therefore, only remove the rotor if;
• the rotor is to be replaced
• the excitation winding of the rotor is to be replaced
• the drive end bearing/spacer ring is to be serviced
• the rotor collector rings are to be replaced

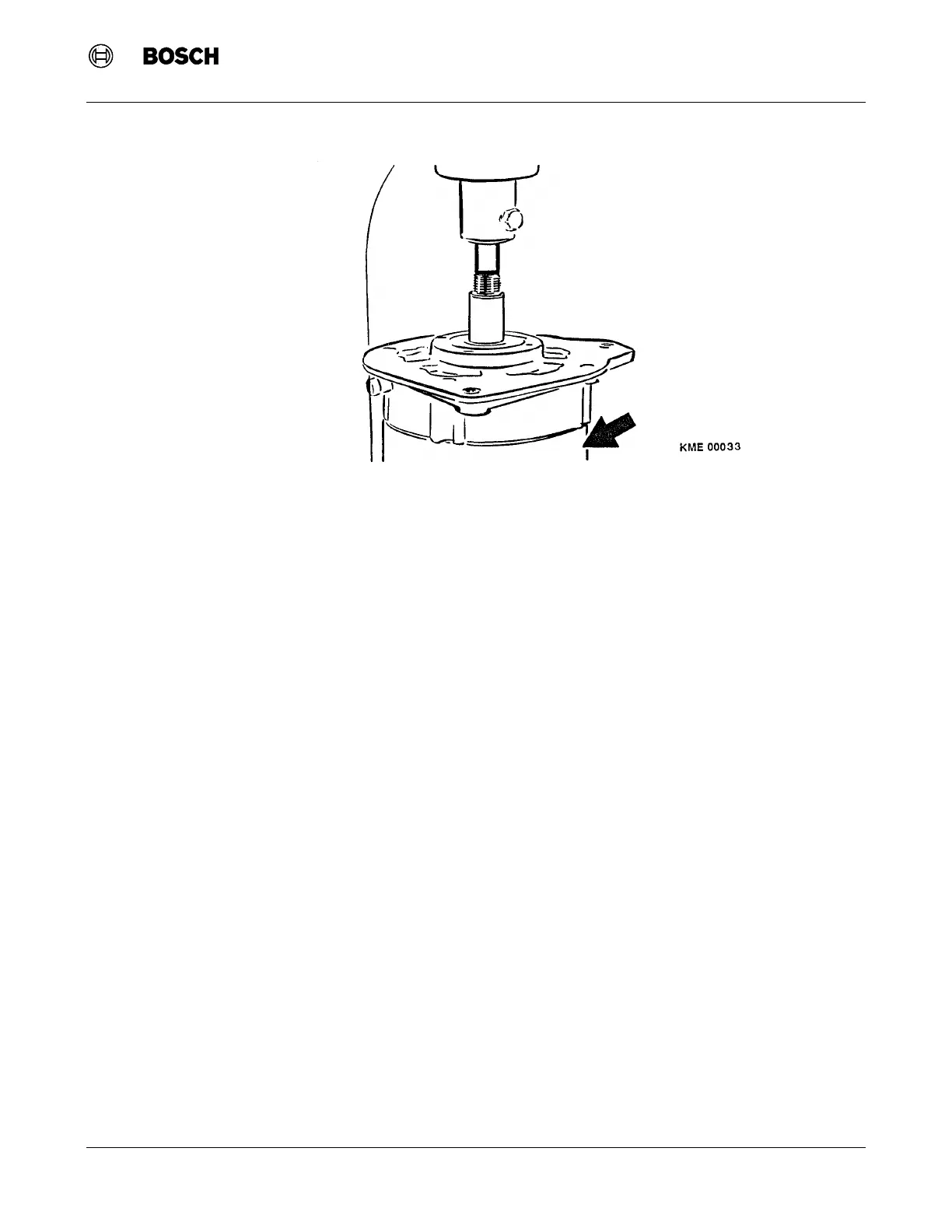

Figure 18 Pressing out Rotor
