Repair and Testing Instructions for T1 Page 34
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC
4. Align the mounting holes of the regulator to holes of the alternator housing.
Note: When aligning the mounting holes, pay attention to the force used as damage can occur to the brushes.
5. Install the three (3) regulator mounting screws and torque to 1.3 to 1.7 Nm (11.5 to 15 in. lbs.). (Figure 38)
6. Install capacitor on collector end shield and tighten mounting screw to 4.3 to 5.7 Nm (38.0 to 50.4 in. lbs.).
(Figure 38)
7. Connect lead of capacitor to spade terminal +.
8. Install air intake cover onto alternator. Do not torque cover until it has been installed on the vehicle/engine.

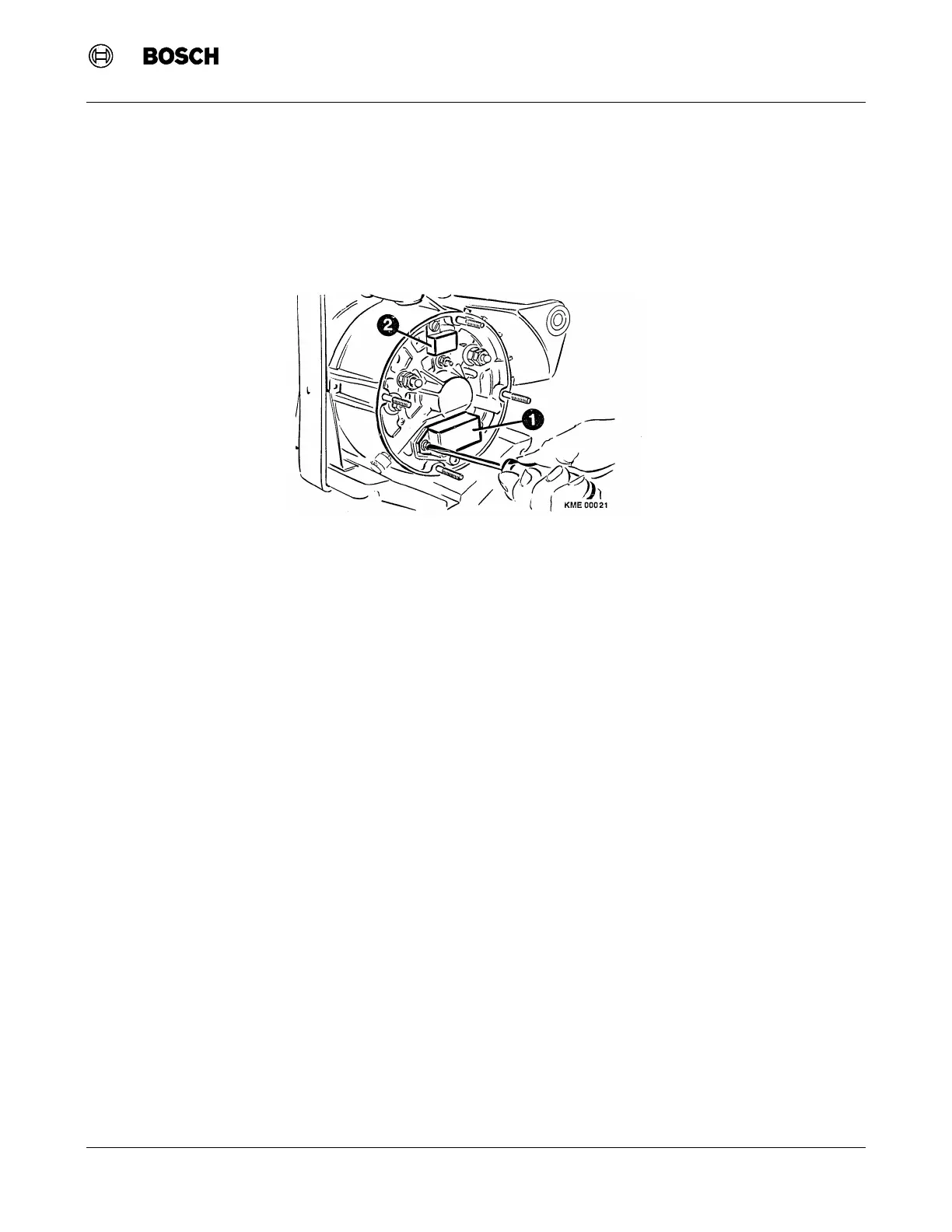

Figure 38 Capacitor Installation
(1) Voltage Regulator (2)
