Incorporated
Specifications
BATTERY EQUALIZER OWNER’S MANUAL
3
Specifications
Family 1 Family 2* Family 3* / Family 4 Family 5
60-60* 60-80* 60-100*
Model Number
60-10B
60-20A
60-50A*
60-100E*
65-60 65-80 65-100
66-60 66-80 66-100
Input Voltage 24v 20 to 35v 18 to 36v 18 to 32v 18 to 32 v
Efficiency (Peak) >91% >92% >92% >94% >97.5% >97.5% >97.5% >97% >97% >97%
Max 24v Input Amps 6 12 28 55 32 43 53 32 43 53
Output Voltage (Input Voltage/2) ±2% - 50mv
Output Amps (12v) 0-10 0-20 0-50 0-100 0-60 0-80 0-100 0-60 0-80 0-100
Standby Current 17 milliamps nominal at 28.4V
Operating Temp. -40° C to +71° C (-40° F to 160° F) -40° C to +75° C (-40° F to 167° F)
Storage Temp. -54° C to +85° C (-65° F to 185° F) -54° C to +95° C (-65° F to 203° F)
Serviceable Yes Yes Yes Yes No No No No No No
Environmental
Considerations
Anodized aluminum enclosure provides protection against salt, fungus, dust, water, fuel vapors and all fluids associated
with commercial and off-highway vehicle operations. Continuous exposure to splashes and spills should be avoided.
Mounting Location
Mount on a flat surface close to the batteries to allow short cable runs. Vertical mounting with terminals down is
recommended. Location should be protected from battery acid and gases.
2.3 lbs
5.0 lbs 7.0 lbs 9.5 lbs
6.0 lbs
6.6 lbs
6.6 lbs
6.0 lbs
6.3 lbs
6.3 lbs
Weights
7.0 lbs
7.6 lbs
7.6 lbs
Unlisted models: Model 60-60M and 65-60M have built-in EM-70 Electrical System Voltage Monitor.
Model 60-50M is a 60-50A with built-in EM-70. Model 60-50E is a 60-50A with weather resistant gasket.
Model 60-100C is an early 60-100E. Model 60-100D is a 60-100C with circuit breakers instead of internal
fuses. Older models not listed in the above table should be tested as Family 1 and should be considered
non-repairable.
*Obsolete.

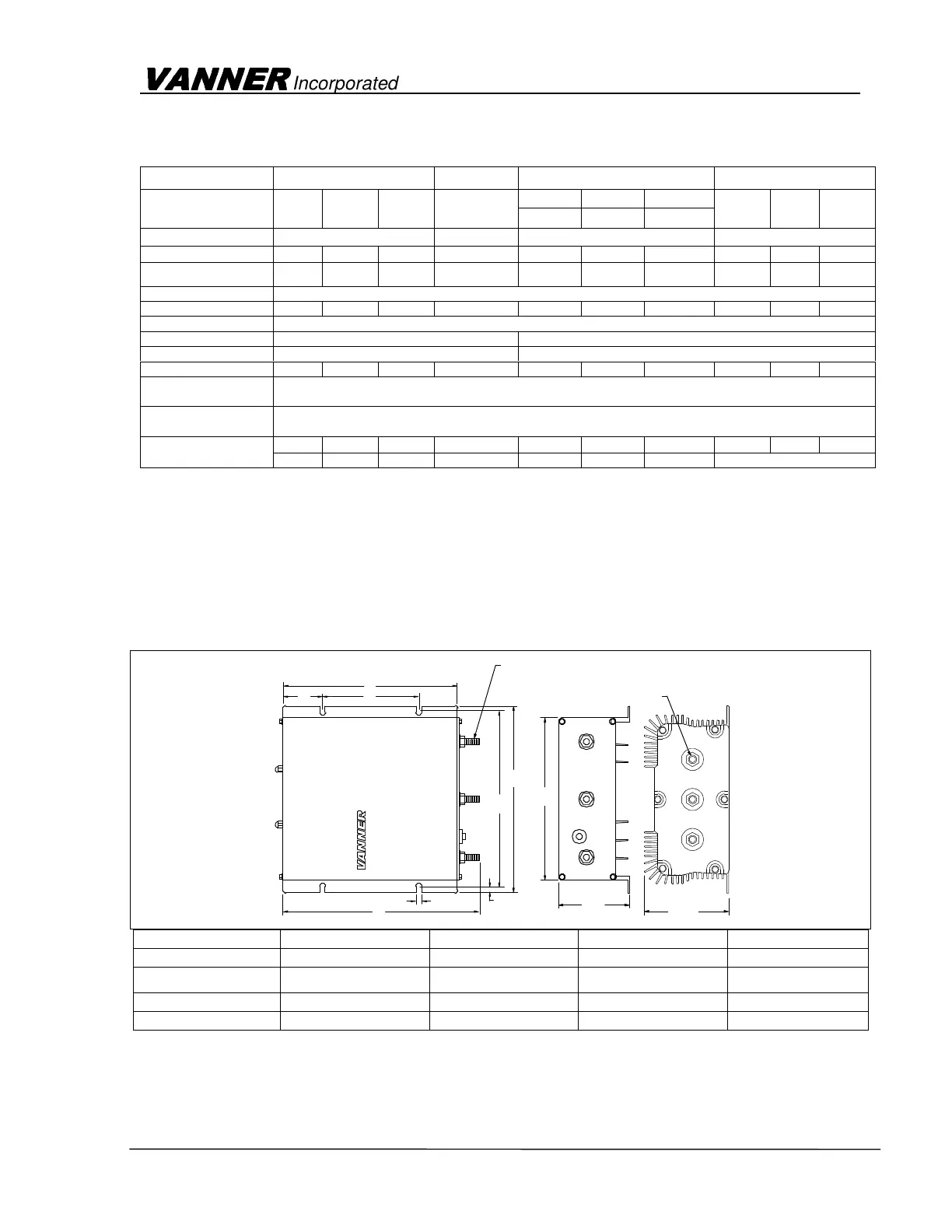

Family 1 and Family 2 Equalizer Dimensions
G N D
+12V
+24V
.25" (6.35)
3.20"
(81.3)
.25" (6.35)
"A "
8.50"
(216.0)
8.00"
(203.3)
7.40"
(188.0)
FA M IL Y 1: 1/4"-28 STUD (X3)
TO RQ U E 60 IN-LBS MAX.
"B "
"C "
"D "
FA M IL Y 2: 3/8"-24 STUD (X3)
TO RQ U E 150 IN-LBS MAX.
3.82"
(97.03)
Model “A” “B” “C” “D”
60-10B 4.25
(107.9)
3.00
(76.3)
2.00
(50.80)
0.50
(12.7)
60-20A 9.38
(238.2)
8.00
(203.2)
4.50
(114.3)
1.75
(44.4)
60-50A 13.38
(339.8)
12.00
(304.8)
8.00
(203.2)
2.00
(50.8)
60-100C 13.46
(341.88)
12.00
(304.8)
8.00
(203.2)
2.00
(50.8)
