PREVOST LE MIRAGE XLII BUS SHELLS User Manual

Page No.19
Manual No. NDS8
Spicer Speciality Axle Division - Technical Publications
© Spicer Speciality Axle Division

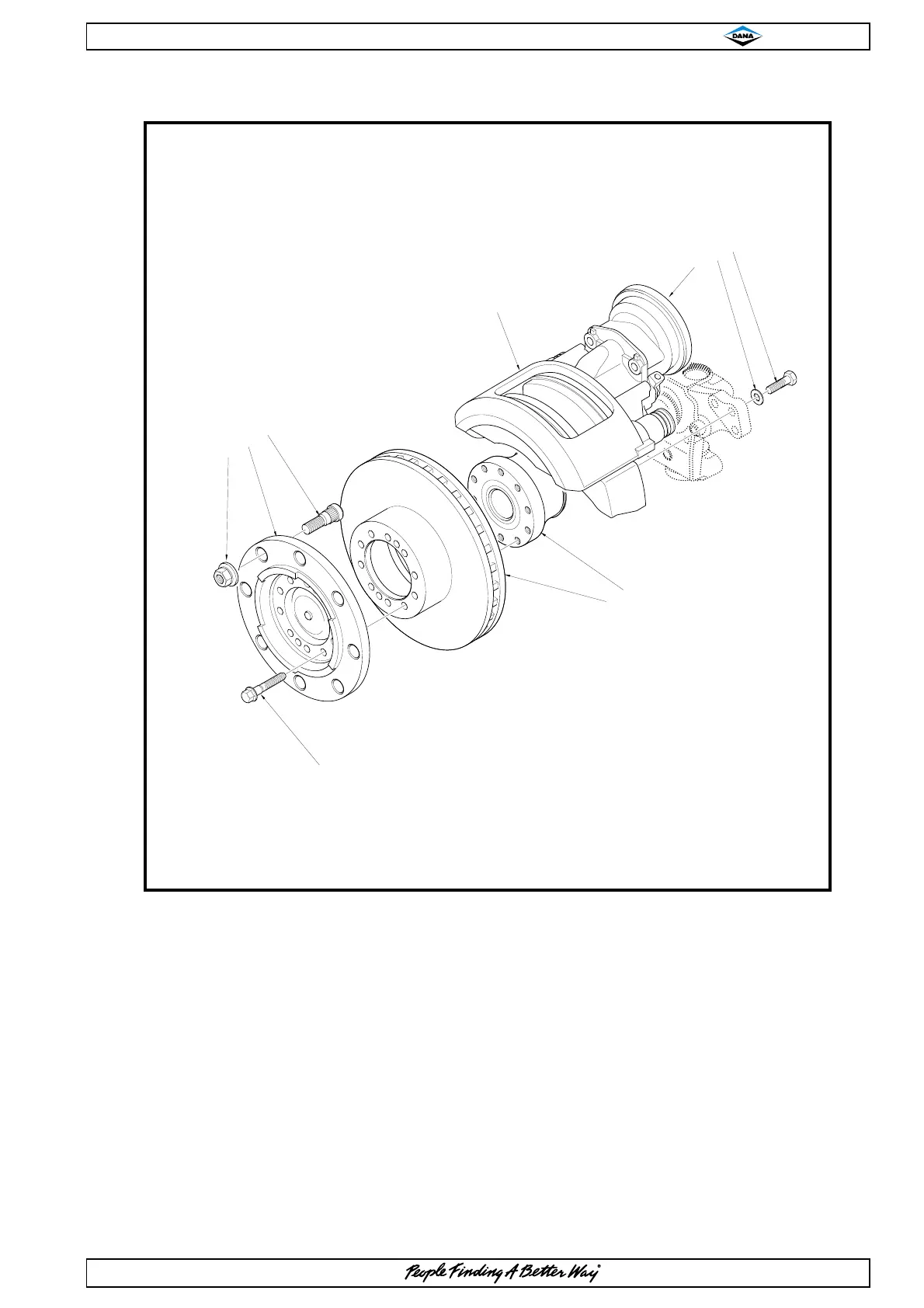

ILLUSTRATION OF NDS HUB END WITH SEPARATE BRAKE BRACKET
PART NUMBER DESCRIPTION
1............................................... Wheel nut (Not Supplied By Spicer Speciality Axles)
2............................................... Hub flange
3............................................... Wheel stud
4............................................... Brake Caliper
5............................................... Air chamber
6............................................... Brake Caliper Mounting Washer
7............................................... Brake Caliper Mounting Bolt
8............................................... Unitised Hub Bearing
9............................................... Brake Disc
10.............................................. Hub Flange Retaining Bolt
1
2
3
4
5
6
7
8
10
9
