SERIES 60 SERVICE MANUAL
Energizing the engine brake effectively converts a power-producing diesel engine into a
power-absorbing air compressor. This is accomplished through motion transfer using a
master-slave piston arrangement which opens cylinder exhaust valves near the top of the normal
compression stroke, releasing the compressed cylinder charge to exhaust. See Figure 1-415.

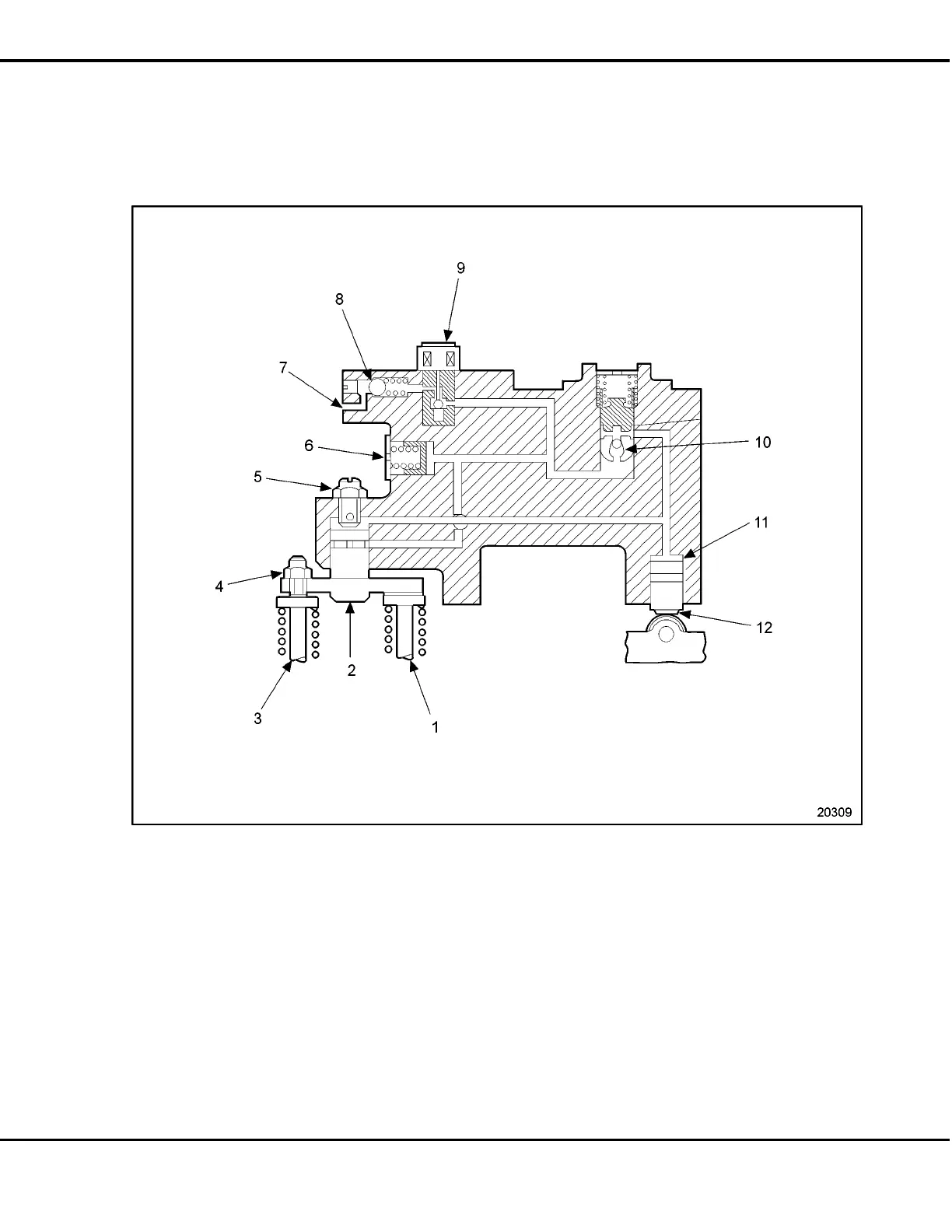

1. Exhaust Valve 7. Oil In
2. Slave Piston Assembly 8. Check Valve (Model 760)
3. Exhaust Valve 9. Solenoid Valve
4. Leveling Screw 10. Control Valve
5. Slave Piston Adjusting Screw 11. Master Piston
6. Accumulator 12. Injector Pin and Roller
Figure 1-415 Jake Brake Schematic
All information subject to change without notice.
6SE483 9901 Copyright © 1999 DETROIT DIESEL CORPORATION From Bulletin 16-60-99 1-525
