Install the slave piston adjusting screw as follows:
1. Place the screw in the housing. See Figure 1-429.

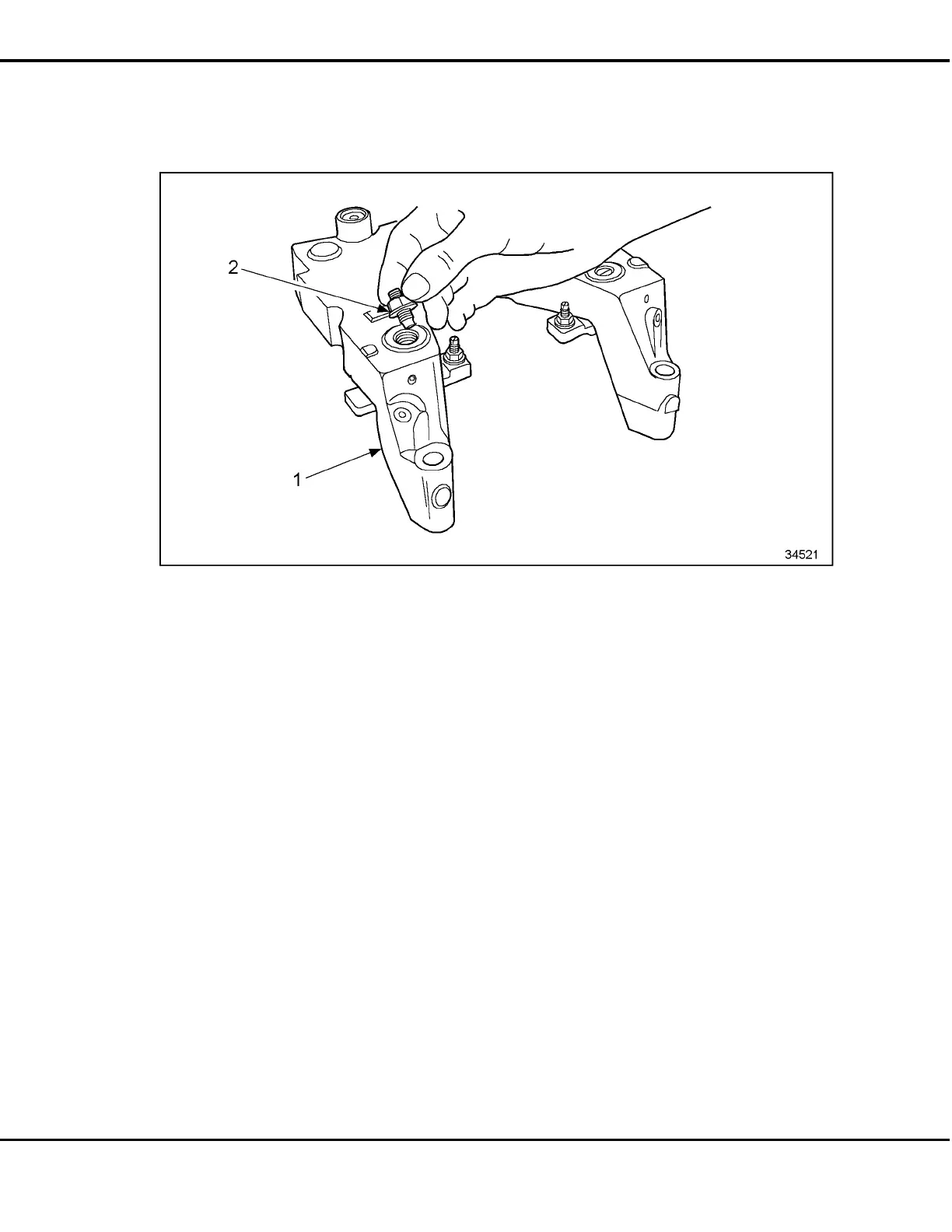

1. Jake Brake Assembly 2. Slave Piston Adjusting Screw
Figure 1-429 Installing the Slave Piston Adjusting Screw
2. Torque the slave piston adjusting screw locknut to 35 N·m (25 lb·ft).
Install the solenoid valve as follows:
NOTE:
As of October 19, 1997, former solenoids have been replaced with the current improved
solenoids. The current solenoids have an increased installation torque and improved
durability. The current solenoid is interchangeable with the former.
1. Coat new solenoid valve seal rings with clean lube oil.
NOTE:
Use current upper seals when installing current solenoids. New seals are identified
with yellow stripes.
All information subject to change without notice.
6SE483 9901 Copyright © 1999 DETROIT DIESEL CORPORATION From Bulletin 16-60-99 1-545
