Section 18: BODY
PA1553
8

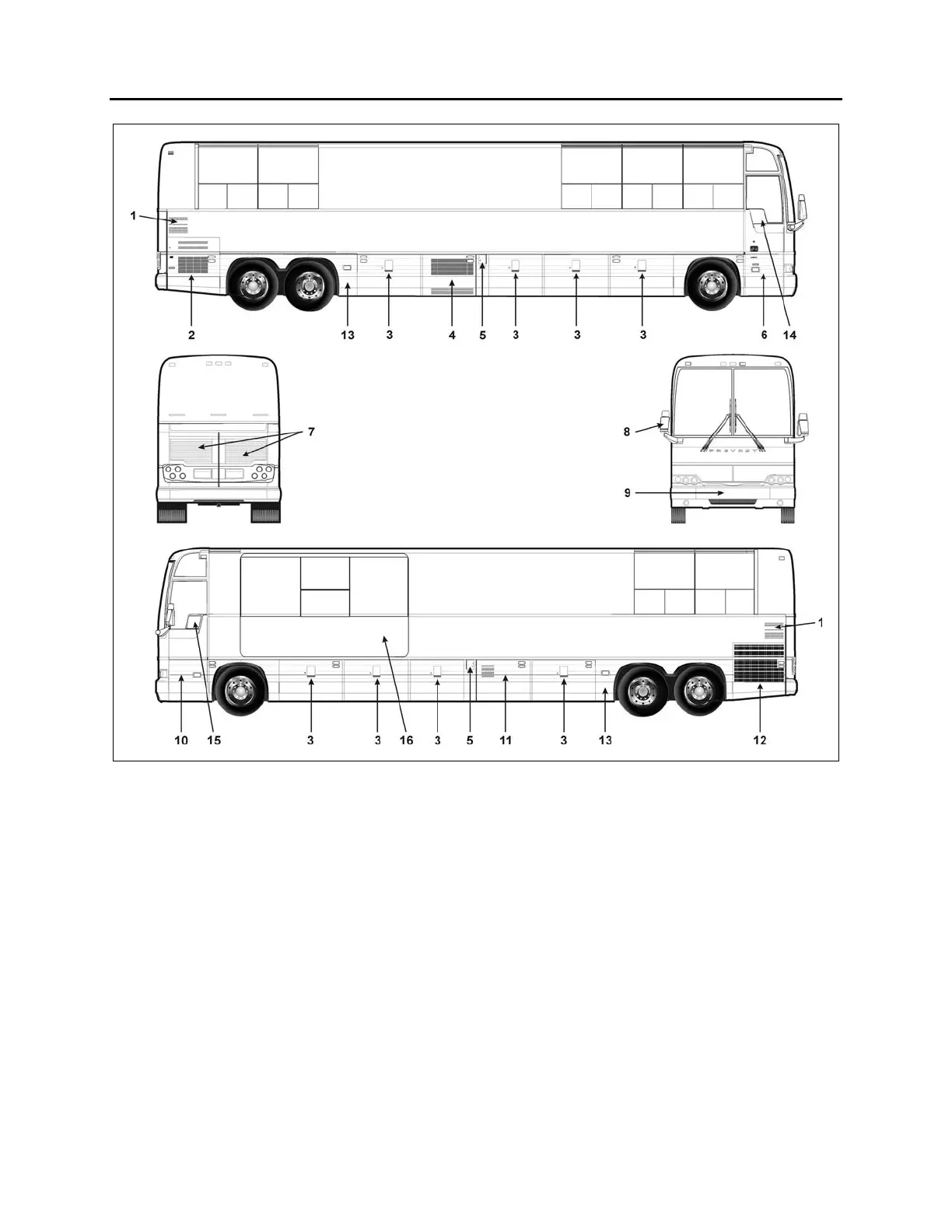

FIGURE 3: XL2-45E CONVERTED VEHICLE EXTERIOR VIEW (TYPICAL) 18369
1. Engine air intake
2. Engine compartment R.H. side door
3. Baggage compartment
4. Condenser compartment or Baggage
compartment
5. Fuel filler door
6. Entrance door
7. Engine compartment rear doors
8. Rear-view mirror
9. Reclining bumper
10. Front electrical & service compartment
11. Evaporator compartment or Baggage
compartment
12. Radiator door
13. Hinged rear fender
14. Entrance door power window
15. Driver’s power window
16. Front Slide-Out (Optional)
