Receiver Mode

R&S

ESR

202User Manual 1175.7068.02 ─ 12

CALCulate<n>:MARKer<m>:Y on page 696

CALCulate<n>:DELTamarker<m>[:STATe] on page 701

CALCulate<n>:DELTamarker<m>:X on page 702

CALCulate<n>:DELTamarker<m>:X:RELative? on page 702

CALCulate<n>:DELTamarker<m>:Y on page 703

More Markers

Opens a sub-menu to select one of up to 16 available markers. See "Marker 1 / Marker

2 / Marker 3 / … Marker 16,/ Marker Norm/Delta" on page 201.

Marker to Trace

Opens an edit dialog box to enter the number of the trace on which the marker is to be

placed.

Remote command:

CALCulate<n>:MARKer<m>:TRACe on page 695

CALCulate<n>:DELTamarker<m>:TRACe on page 701

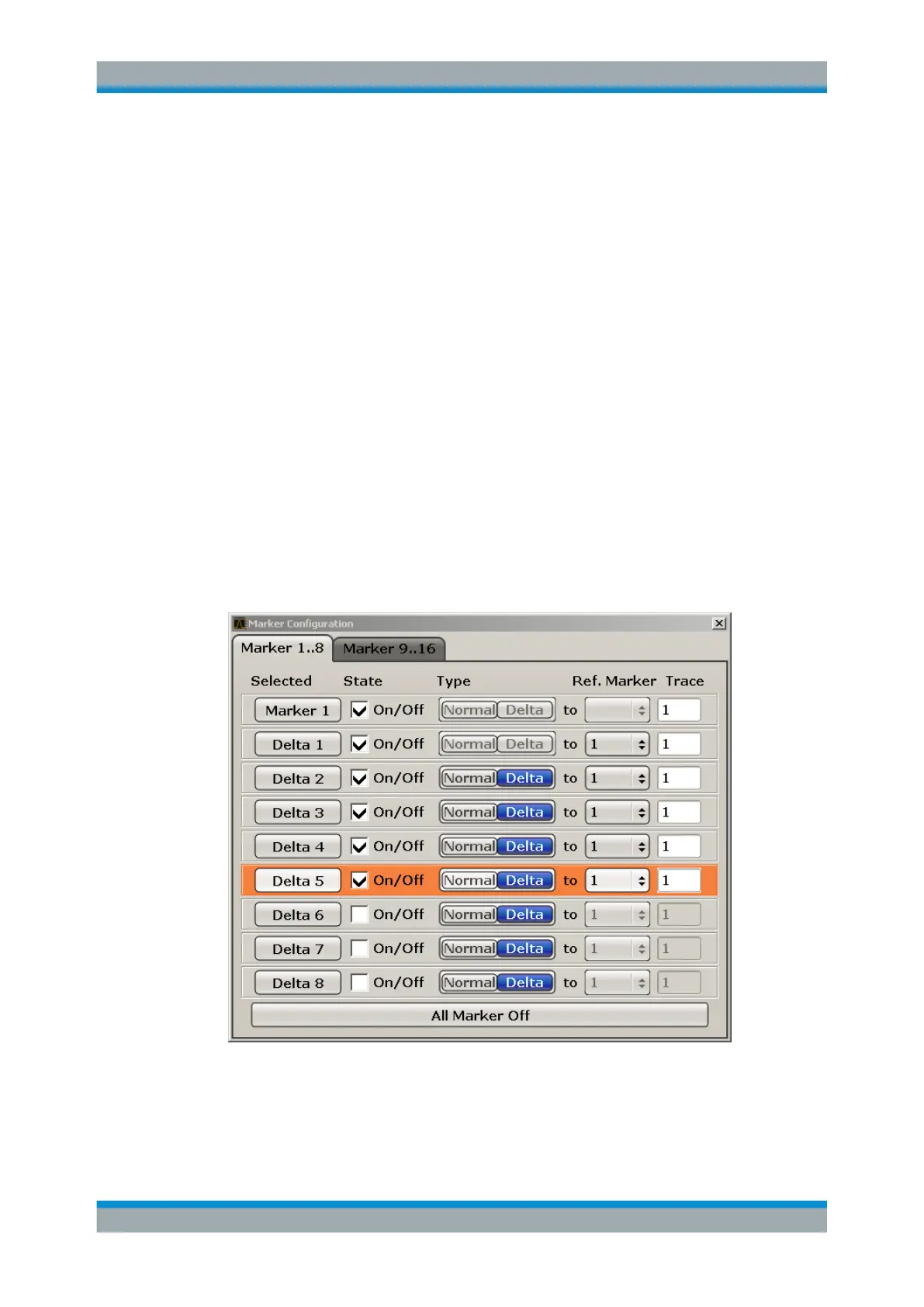

Marker Wizard

Opens a configuration dialog for markers. The marker wizard allows you to configure

and activate up to 16 different markers in one dialog. The first 8 markers are displayed

on one tab, the last 8 markers on a second tab. For each marker, the following settings

are available:

"Selected/

State"

When you press the "Selected" or "State" field the corresponding

marker is activated and the marker row is highlighted.

"Normal/Delta"

Defines whether it is a normal marker or delta marker. For delta mark-

ers you can define a reference marker.

Common Analysis Functions
