174 Rockwell Automation Publication 2198-UM002L-EN-P - October 2021
Chapter 5 Connect the Kinetix 5700 Drive System
Connections at the Active Shunt (RC) Connector
You can make active shunt connections in drive systems that include the
regenerative bus supply and Powerohm PKBxxx-800 active shunts at the Active
Shunt (RC) connector.

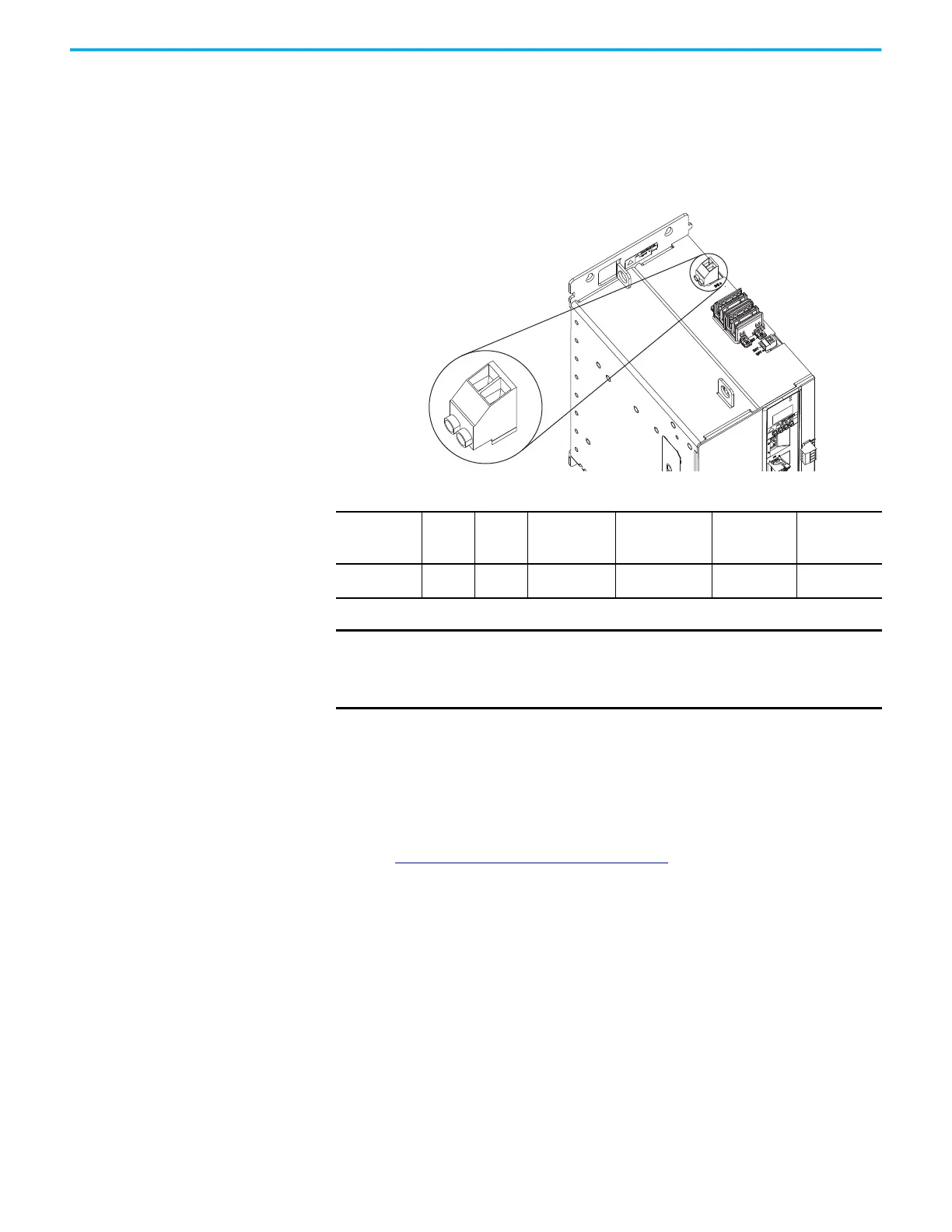

Figure 116 - RC Connector Wiring
Connections at the External DC-bus Studs
You can make active shunt connections in drive systems that include the
regenerative bus supply and Powerohm PKBxxx-800 or PWBxxx-800 active
shunts at the external DC-bus studs on accessory modules.
Refer to Wire the External DC-bus Connections
.
Wire the External DC-bus Connections
Accessory modules are equipped with spacers that slide onto the M8 studs.
When the system configuration includes external DC-bus and active shunt
connections, external DC-bus connections are made below the spacer and
active shunt connections are made above the spacer.
1
2
2198-RPxxx
Regenerative Bus Supply
Top View
Active Shunt (RC) Connector Plug
Table 105 - Active Shunt (RC) Connector Specifications
Regenerative
Bus Supply
Cat. No.
Pin Signal
Continuous
(1)
Current, max
(1) This connector applies to only Powerohm PKBxxx-xxx active shunts rated at 7 kW or less.
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2198-RPxxx
RC-1
RC-2
DC–
DC+
10 A
2.5…6
(14…10)
12.0 (0.47)
0.5…0.6
(4.4…5.3)
IMPORTANT
Due to the 10 A connector current rating, connections to the RC
connector are limited to only Powerohm PKBxxx-xxx active shunts rated
at 7 kW or less. All other PKBxxx-xxx and PWBxxx-xxx active shunt
connections must be made to the 2198-CAPMOD-2240 capacitor module.
