Chapter 6 Configure and Start the Kinetix 5700 Drive System
Configure Induction-motor
Closed-loop Control Axis
Properties
Follow these steps to configure induction-motor closed-loop control axis
properties.
1. In the Controller Organizer, right-click an axis and choose Properties.

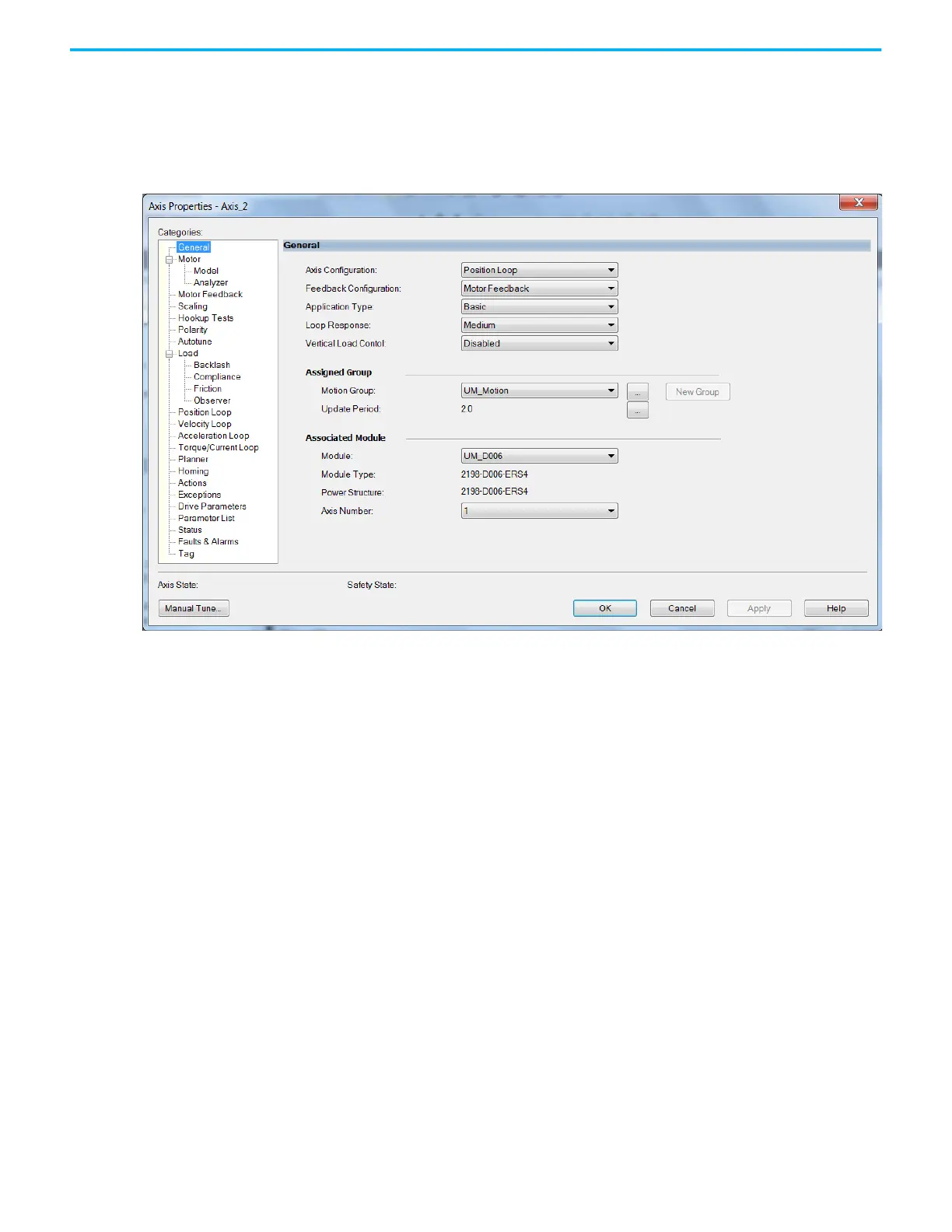

2. Select the General category.
The General and Associated Module dialog box appears.
3. From the General pull-down menus, change configuration settings as
needed for your application.
4. From the Associated Module>Module pull-down menu, choose your
Kinetix 5700 drive.
The drive catalog number populates the Module Type and Power
Structure fields.
5. Click Apply.
6. Select the Motor category.
To Next Page
