Chapter 6 Configure and Start the Kinetix 5700 Drive System

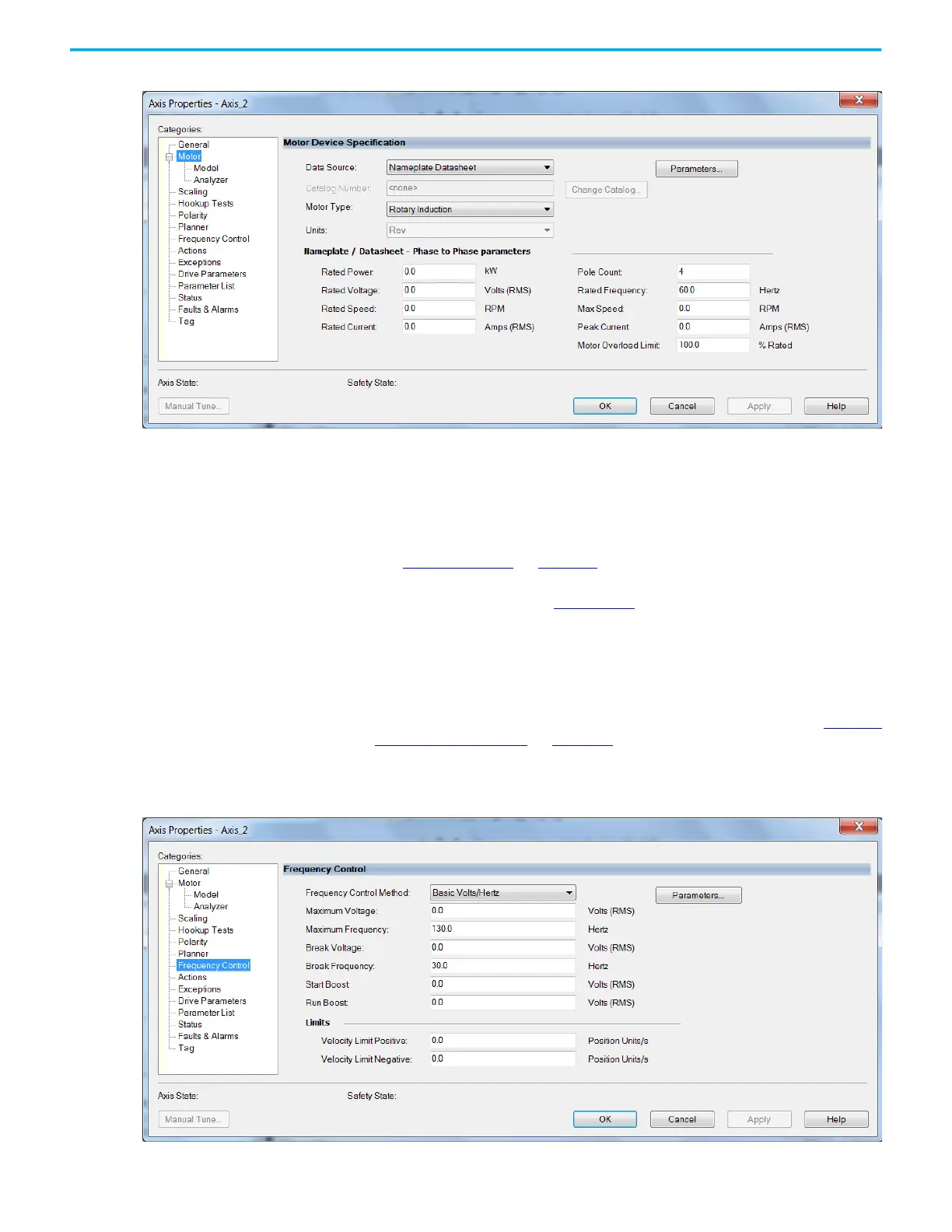

7. Select the Motor category.
8. From the Data Source pull-down menu, choose Nameplate Datasheet.
This is the default setting.
9. From the Motor Type pull-down menu, choose Rotary Induction.
10. From the motor nameplate or datasheet, enter the phase-to-phase values
for your motor.
See Motor Category
on page 412 for a motor performance datasheet
example. Also, see Motor Nameplate Datasheet Entry for Custom Motor
Applications, publication 2198-AT002
.
11. Click Apply.
Basic Volts/Hertz Method
1. Configure the General category and Motor category as shown in General
and Motor Categories on page 223.
2. Select the Frequency Control category.
3. From the Frequency Control Method pull-down menu, select Basic Volts/
Hertz.
