Chapter 7 Troubleshoot the Kinetix 5700 Drive System
Regenerative Bus Supply Behavior
Stopping action for exception fault codes does not apply to the regenerative
bus supply. The Disable exception action for a regenerative bus supply means
the power supply enters into a Major Fault state that opens the contactor-
enable output, removing three-phase power from the Kinetix 5700 drive
system. The Shutdown exception action exhibits the same behavior as Disable,
except the power supply enters into Shutdown as the final state and requires a
Shutdown Reset to recover.
Fault actions are shown in Table 141
and Table 142.

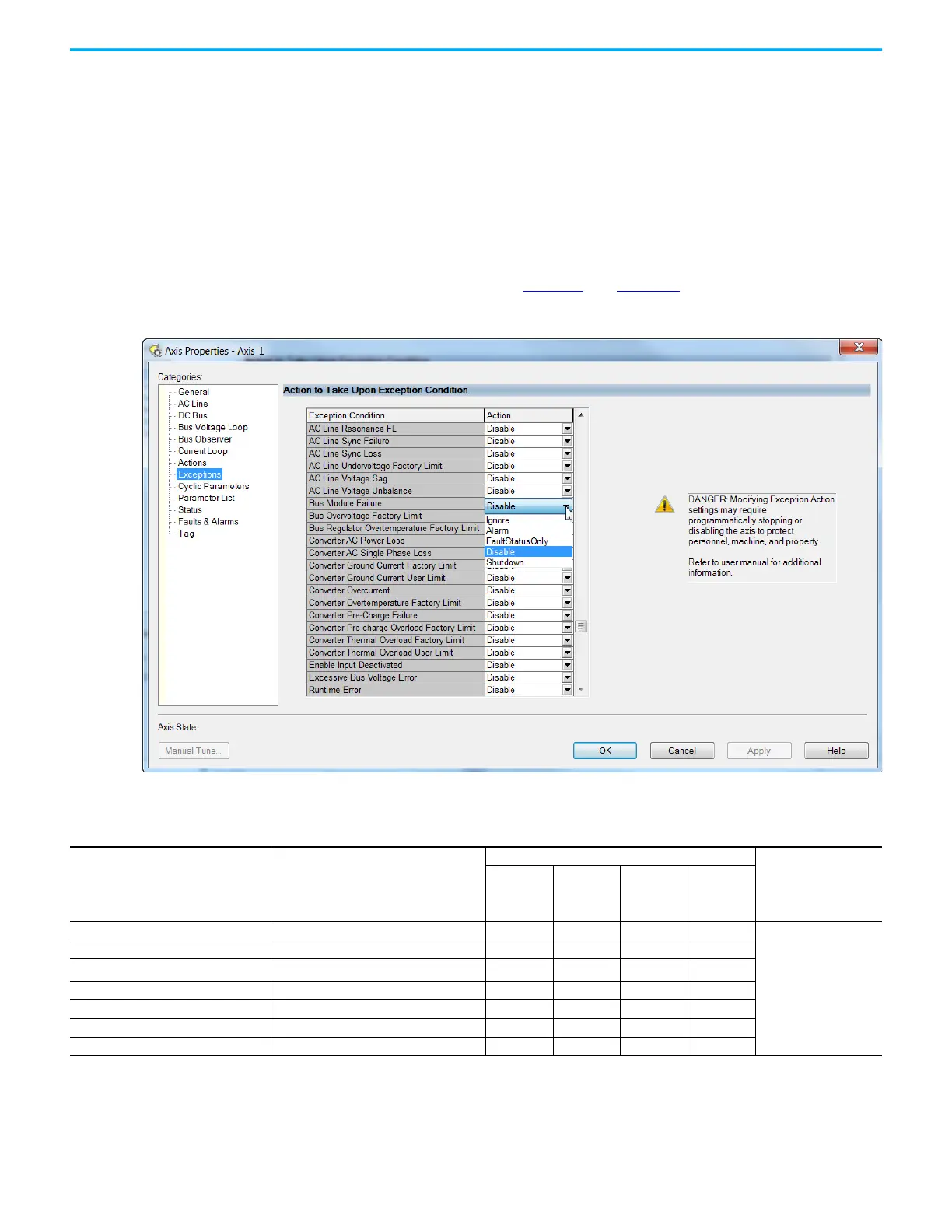

Figure 130 - Logix Designer Axis Properties - Exceptions Category
Table 141 - Regenerative Bus Supply Behavior, FLT Sxx Fault Codes
Exception Fault Code Exception Text
Fault Action
Best Available
Stopping Action
(applies to major faults)
Ignore
Alarm
Minor Fault
Major Fault
FLT S15 – CONV OVERCURRENT Converter Overcurrent Fault – – – X
Regenerative bus supply
does not perform stopping
actions.
FLT S16 – GROUND CURRENT Ground Current Factory Limit Fault – – – X
FLT S17 – GROUND CURRENT UL
(1)
Ground Current User Limit Fault X X X X
FLT S18 – CONV OVERTEMP FL Converter OverTemp Factory Limit Fault – – – X
FLT S20 – CONV OVERLOAD FL Converter Thermal OverLoad Factory Limit Fault – – – X
FLT S21 – CONV OVERLOAD UL Converter Thermal Overload User Limit Fault X X X X
FLT S22 – AC POWER LOSS Converter AC Power Loss Fault X X X X
