204 Rockwell Automation Publication 2198-UM002L-EN-P - October 2021
Chapter 6 Configure and Start the Kinetix 5700 Drive System
Configure the Inverter Drives
This procedure applies to single-axis and dual-axis inverters with hardwired or
integrated safety connections. In this example, a 2198-D006-ERS4 dual-axis
inverter is configured.
Follow these steps to configure Kinetix 5700 inverter drives.
1. Above the DC-bus power supply (converter) you just created, right-click
Ethernet and choose New Module.
The Select Module Type dialog box appears.
2. Enter 2198 to narrow your choices and select your 2198-xxxx-ERS3 or
2198-xxxx-ERS4 inverter as appropriate for your hardware configuration.
3. Click Create.

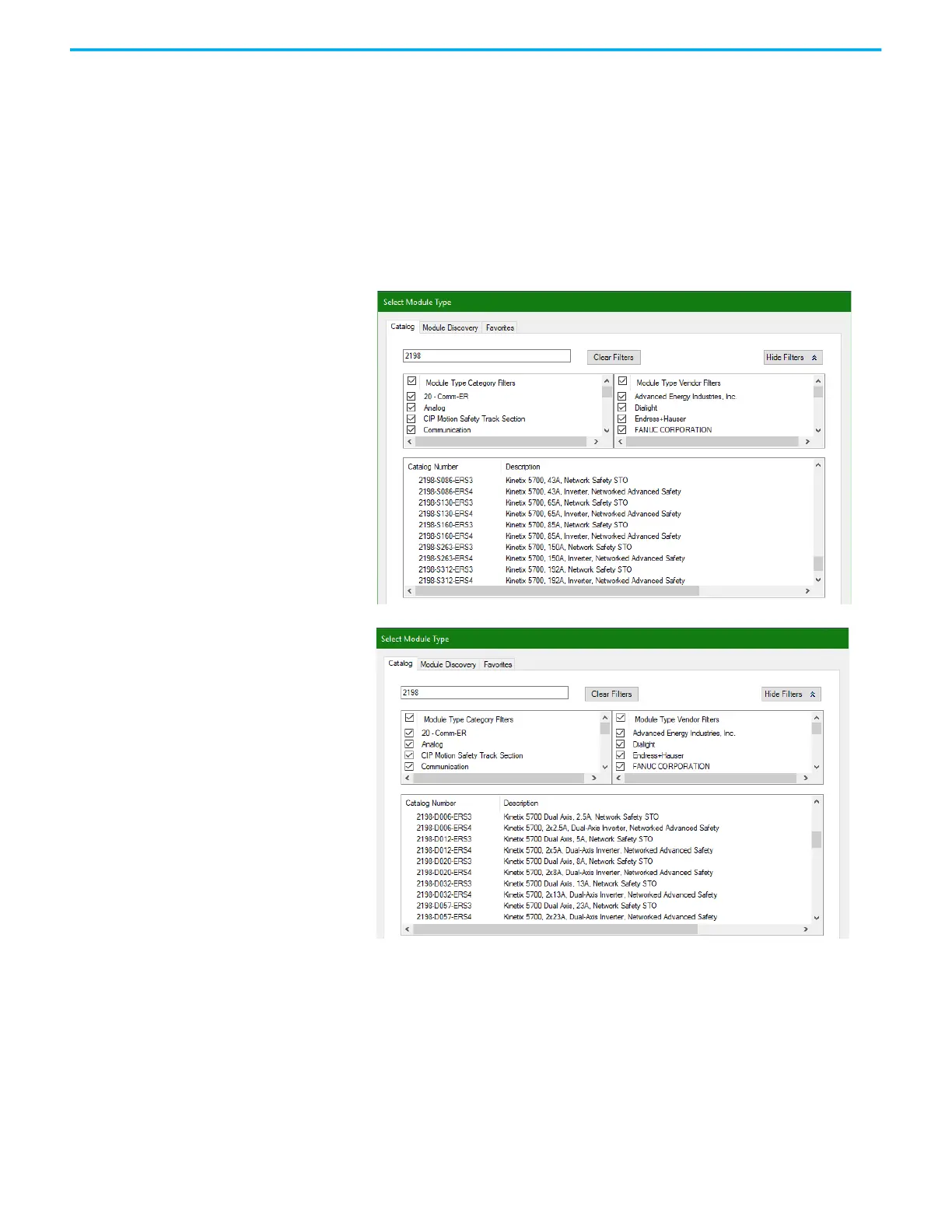

This example shows the
2198-Sxxx-ERSx single-axis
inverters you can choose from.
This example shows the
2198-Dxxx-ERSx dual-axis
inverters you can choose from.
