Rockwell Automation Publication 2198-UM002L-EN-P - October 2021 297
Chapter 9 Kinetix 5700 Safe Torque-off Function
Wire the Safe Torque-off Circuit
This section provides guidelines for wiring safe torque-off connections to your
Kinetix 5700 drive.
Install 2198-xxxx-ERS3 (series A) Safety (STO) Connector Plugs
The right side of the safety connector plug requires an off-center push when
inserting it into the STO connector. This applies to 2198-xxxx-ERS3 (series A)
single-axis and dual-axis inverters.

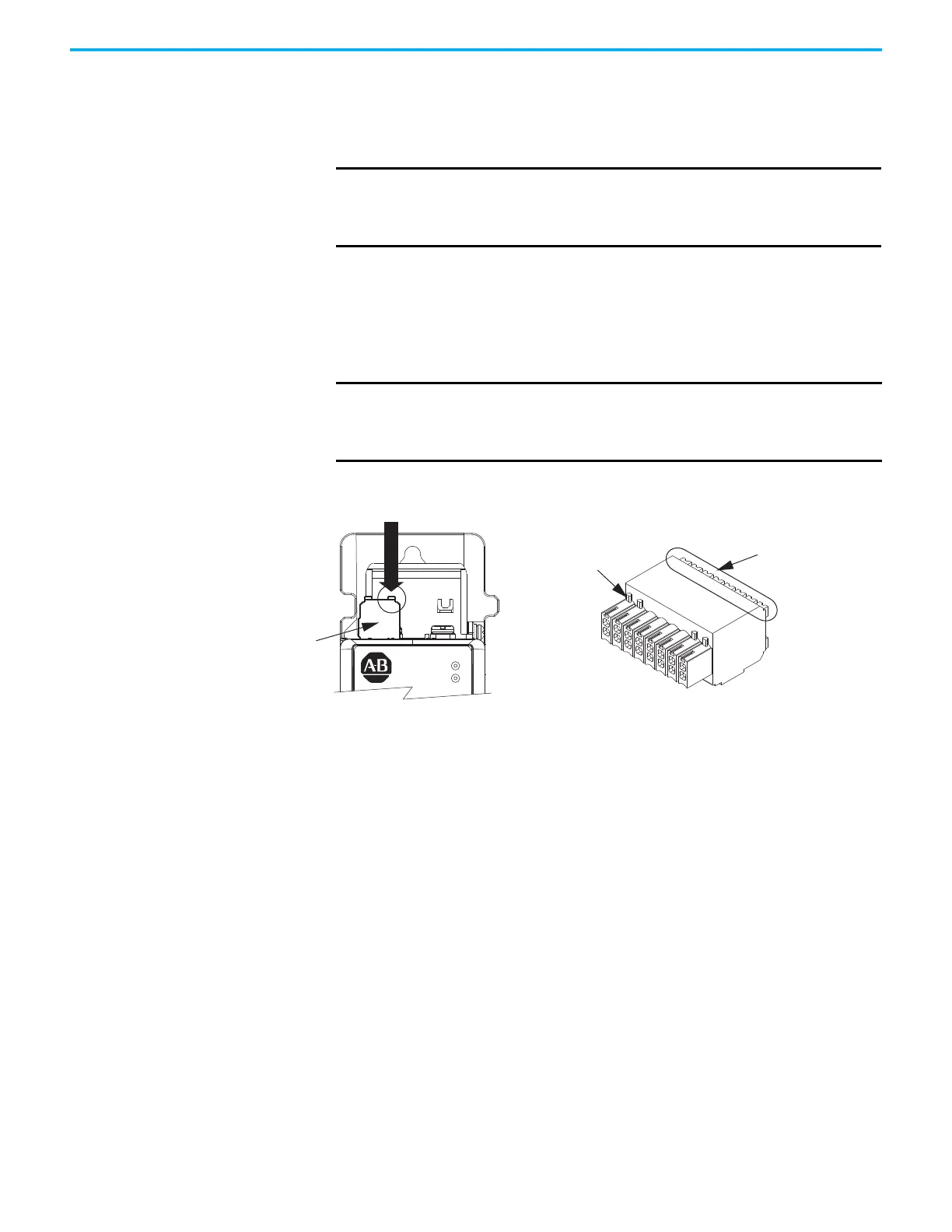

Figure 139 - Insert the 2198-xxxx-ERS3 (series A) Safety Connector Plug
IMPORTANT
When replacing 2198-xxxx-ERS3 (series A) single-axis and dual-axis
inverters with 2198-xxxx-ERSx (series B) inverters, you must use the
series B (safety) connector plugs that are included with your series B
inverter.
IMPORTANT
An off-center push is required to engage the locking features on the
bottom of the safety connector plugs and seat properly with the drive
STO connector. Failure to do this can result in the connector plug
pulling out of the drive connector during normal operation.
MOD–
NET–
Safety Plug
Locking Features
Off-center Push
Push the Right-hand Side
Kinetix 5700 Inverter Drive
(2198-xxxx-ERS3, series A,
inverter is shown)
Safety (STO) Connector Plug
