308 Rockwell Automation Publication 2198-UM002L-EN-P - October 2021
Chapter 9 Kinetix 5700 Safe Torque-off Function

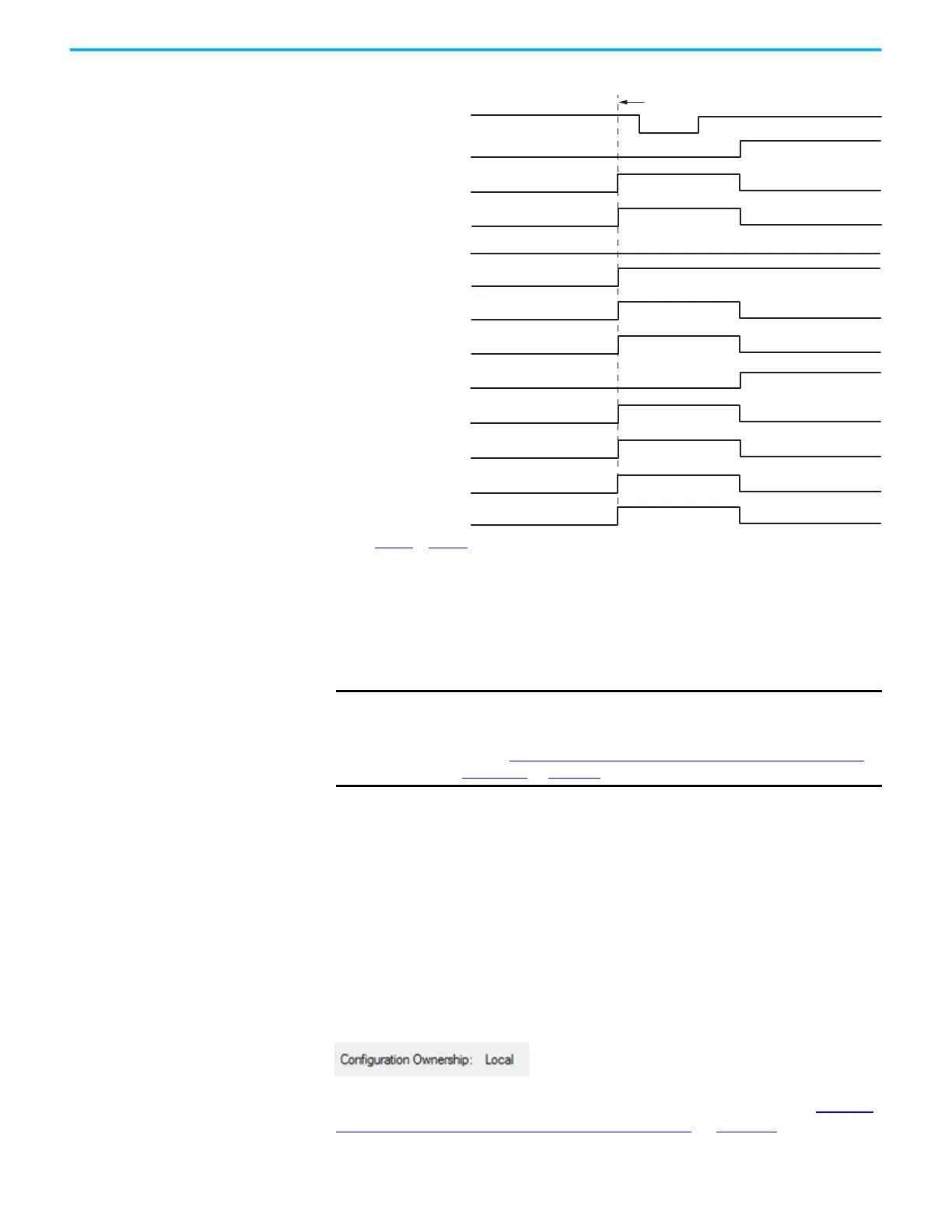

Figure 149 - Reset Safe Torque-off Fault Diagram
(1) See Table 170 on page 304 for STO tag name changes.
Understand Integrated Safety Drive Replacement
GuardLogix controllers retain I/O device configuration on-board and are able
to download the configuration to the replacement device.
Replacing a Kinetix 5700 servo drive that sits on an integrated safety network
is more complicated than replacing standard devices because of the safety
network number (SNN). The device number and SNN make up the safety
device’s DeviceID. Safety devices require this more complex identifier to make
sure that duplicate device numbers do not compromise communication
between the correct safety devices. The SNN is also used to provide integrity
on the initial download to the Kinetix 5700 servo drive.
When the Logix Designer application is online, the Safety category of the
Module Properties dialog box displays the current configuration ownership.
When the opened project owns the configuration, Local is displayed.
A communication error is displayed if the module read fails. Refer to Replace
an Integrated Safety Drive in a GuardLogix System on page 309 for integrated
safety drive replacement information.
Drv:SI.SafetyFault
Drv:SI.TorqueDisabled
Axis.SafeTorqueOActiveStatus
Axis.SafeTorqueOActiveInhibit
Axis.SafeTorqueDisabledStatus
Axis.SafetyResetRequestStatus
Axis.SafetyResetRequiredStatus
Disable Torque
Permit Torque
Torque Disabled
Torque Permited
No Fault
Drv:SI.ResetRequired
Reset Not Required
Axis.SafetyFault
No Fault
Faulted (cleared by MAFR)
Start Inhibitted
Start Permitted
Reset Not Required
Axis.SafetyFaultStatus
Faulted
No Fault
S0.ResetRequest
Reset Required
Disable Torque
Permit Torque
Torque Disabled
Torque Permited
Axis.SafeTorqueOFault
No Fault
Safety Fault Occurs
Drv:SO,SafeTorqueOff
(1)
Drv:SO, Reset
(1)
IMPORTANT
If the Kinetix 5700 replacement drive was used previously, clear the
existing configuration before installing it on a safety network by
resetting the drive to Hardwired STO mode. To see how this is done,
refer to Restore the Hardwired STO Mode by Using the Logix Designer
Application on page 287.
