Chapter 6 Configure and Start the Kinetix 5700 Drive System

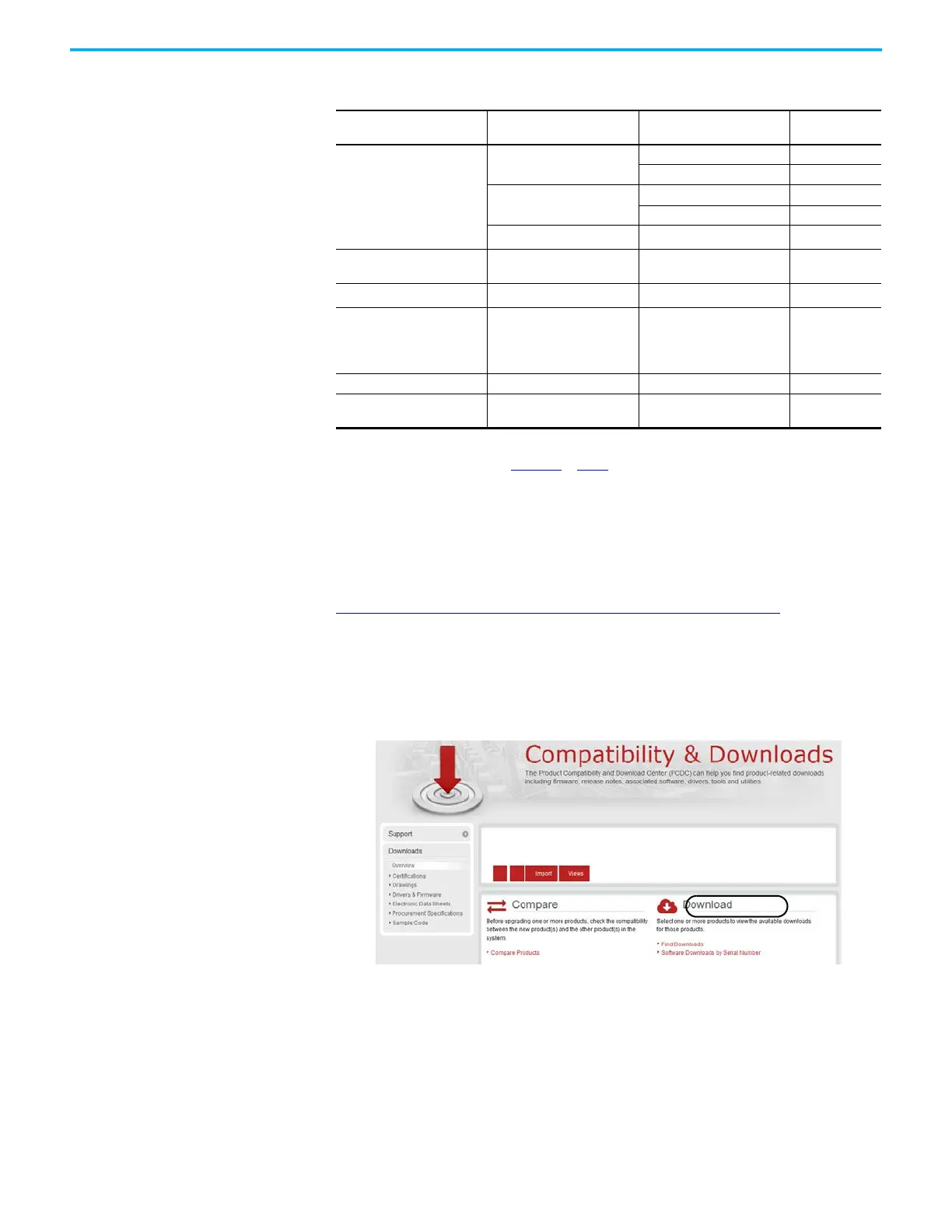

Install the Kinetix 5700 Add-On Profile
Download Add-On profiles (AOP) from the Product Compatibility Download
Center (PCDC) website:
http://compatibility.rockwellautomation.com/Pages/home.aspx
.
Follow these steps to download the Kinetix 5700 Add-On profile.
1. Go to the Product Compatibility Download Center.
The Compatibility & Downloads webpage appears.
2. Click Download.
3. Enter Kinetix 5700 in the Search PCDC window.
4. Click the appropriate firmware revision and follow prompts to
download.
5. Extract the AOP zip file and run Setup.
Table 115 - AOP Installation Requirement
Drive Module
Cat. No.
Drive Firmware Revision
Logix Designer Application
Version
Kinetix 5700 AOP
Needed?
2198-xxxx-ERS3 (series A)
4.001
26.00 or 27.00 Yes
28.00 or later No
5.001
26.00, 27.00, 28.00 Yes
29.00 or later No
7.001 or later
(1)
(1) These firmware enhancements are available only with the applicable Studio 5000 Logix Designer, version. There is no AOP
available for download.
29.00 or later No
2198-xxxx-ERS3 (series B)
2198-xxxx-ERS4
9.001 or later
(1)
31.00 or later No
2198-RPxxx
10.001 or later
(1)
32.00 or later No
CIP Security™
(2)
for:
2198-Pxxx, 2198-RPxxx
2198-xxxx-ERS3 (series B)
2198-xxxx-ERS4
(2) For information on CIP Security, see CIP Security on page 12.
11.001 or later 32.00 Yes
2198T-W25K-ER 12.001 or later 33.00 Yes
2198-xxxx-ERS3 (series B)
2198-xxxx-ERS4
13.001 or later
(1)
33.00 or later No
