Chapter 6 Configure and Start the Kinetix 5700 Drive System
Configure the Regenerative Bus Supply
Follow these steps to configure the regenerative bus supply.
1. Below the controller you just created, right-click Ethernet and choose
New Module.

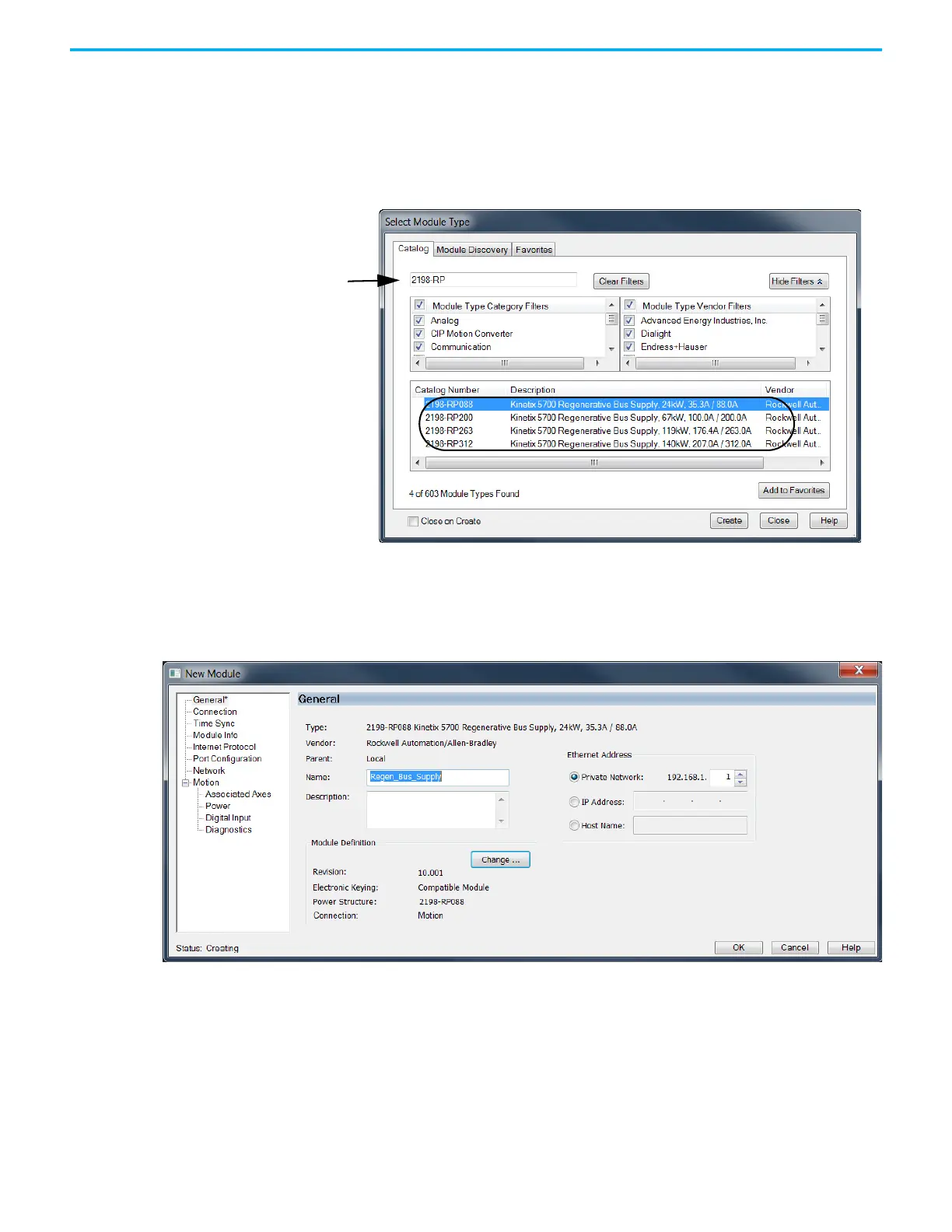

The Select Module Type dialog box appears.
2. By using the filters, check Motion and Allen-Bradley, and select your
2198-RPxxx regenerative bus supply as appropriate for your hardware
configuration.
3. Click Create.
The New Module dialog box appears.
4. Configure the new module.
a. Type the module Name.
b. Select an Ethernet Address option.
In this example, the Private Network address is selected.
c. Enter the address of your 2198-RPxxx regenerative bus supply.
In this example, the last octet of the address is 1.
Enter 2198-RP here to
further limit your search.
To Next Page
