Rockwell Automation Publication 2198-UM002L-EN-P - October 2021 225
Chapter 6 Configure and Start the Kinetix 5700 Drive System
4. Enter the Basic Volts/Hertz attribute values appropriate for your
application.
Default values are shown.
5. Click Apply.

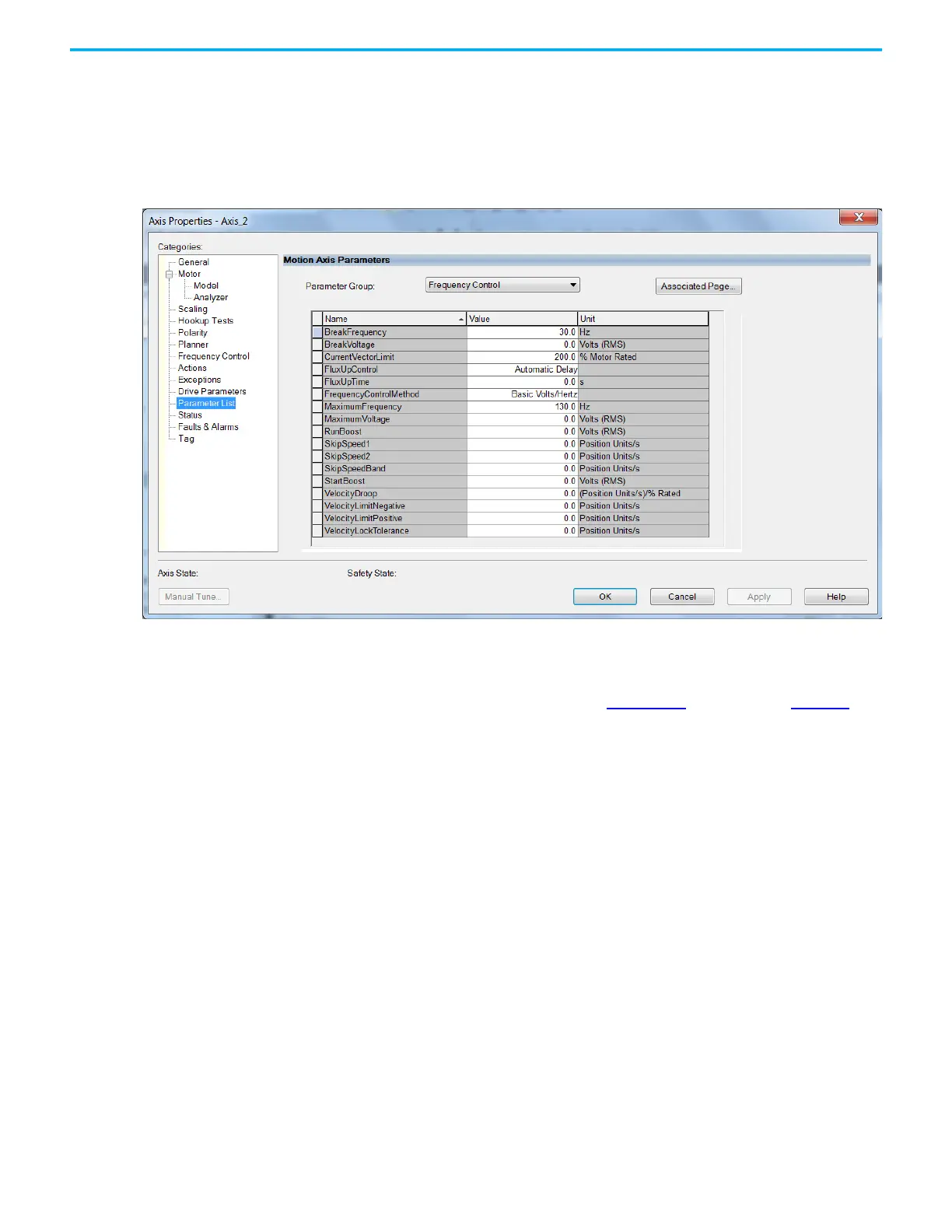

6. Select the Parameter List category.
The Motion Axis Parameters dialog box appears.
7. From the Parameter Group pull-down menu, choose Frequency Control.
8. Set the FluxUp, SkipSpeed, VelocityDroop, and CurrentVectorLimit
attributes appropriate for your application.
See the corresponding section in Appendix F
, beginning on page 397, for
information and configuration examples regarding all of these topics.
9. Click OK.
