Rockwell Automation Publication 2198-UM002L-EN-P - October 2021 239
Chapter 6 Configure and Start the Kinetix 5700 Drive System

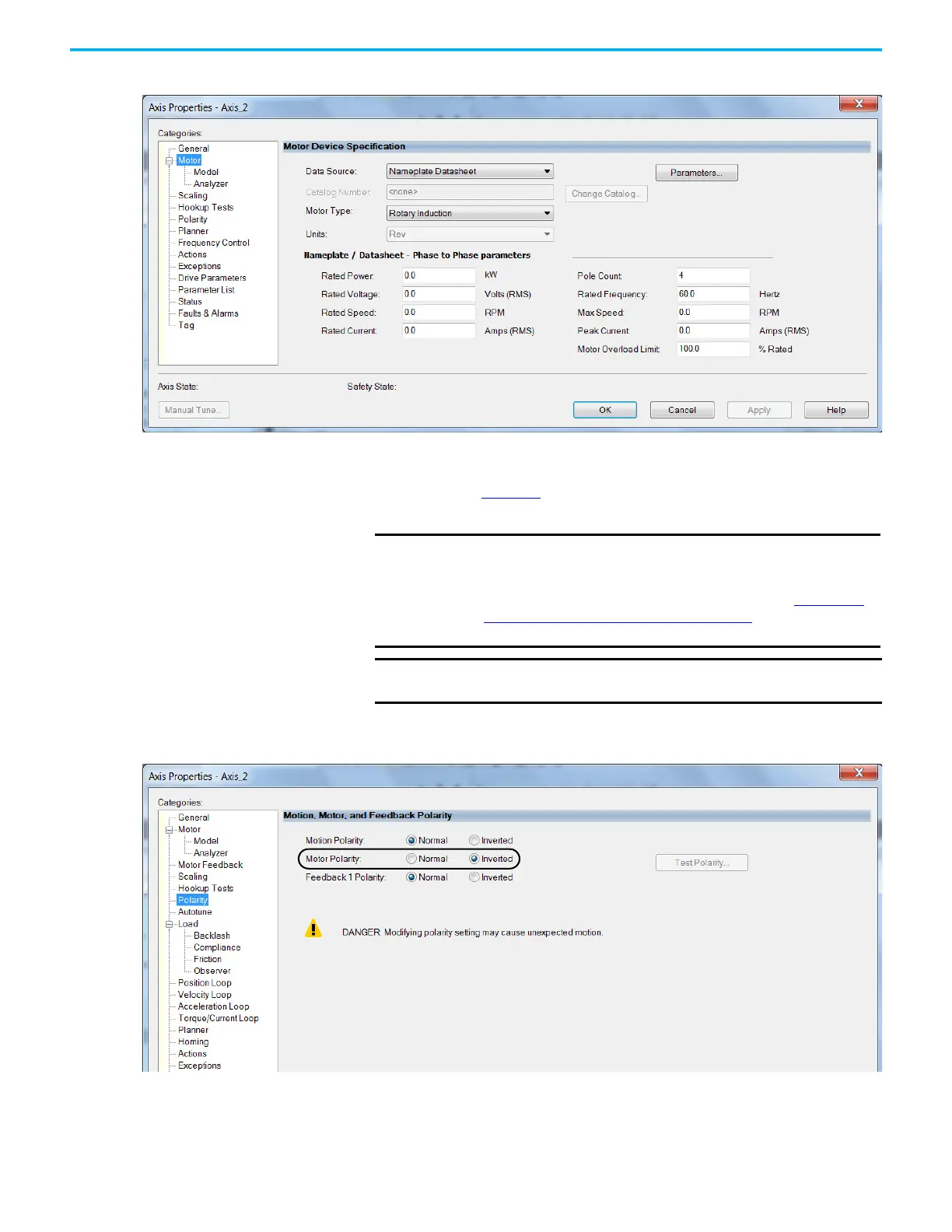

The Motor Device Specification dialog box appears.
7. From the Data Source pull-down menu, choose Nameplate Datasheet.
This is the default setting. If you have a Kinetix HPK asynchronous rotary
motor, refer to page 234
to see how to populate the Nameplate /
Datasheet parameters by selecting the motor catalog number.
a. Select the Polarity category.
b. For Motor Polarity, click Inverted (default is Normal).
c. Click Apply and return to the Motor category.
8. From the Motor Type pull-down menu, choose Rotary Induction.
9. From the motor nameplate or datasheet, enter the phase-to-phase values
for your motor.
IMPORTANT
When you configure Kinetix HPK motor parameters by selecting
the motor catalog number, you must also configure the Polarity
category. This requirement applies to only Kinetix HPK
asynchronous motors. See Knowledgebase Technote: Kinetix HPK
motor polarity setting with Kinetix 5700 drives for more
information.
IMPORTANT
Motor NV is not a supported data source in the Logix Designer
application for axes configured as Induction-motor closed-loop.
