240 Rockwell Automation Publication 2198-UM002L-EN-P - October 2021
Chapter 6 Configure and Start the Kinetix 5700 Drive System
See Motor Category on page 412 for a motor performance datasheet
example. Also see Motor Nameplate Datasheet Entry for Custom Motor
Applications, publication 2198-AT002
.
10. Click Apply.
11. Select the Motor Feedback category.

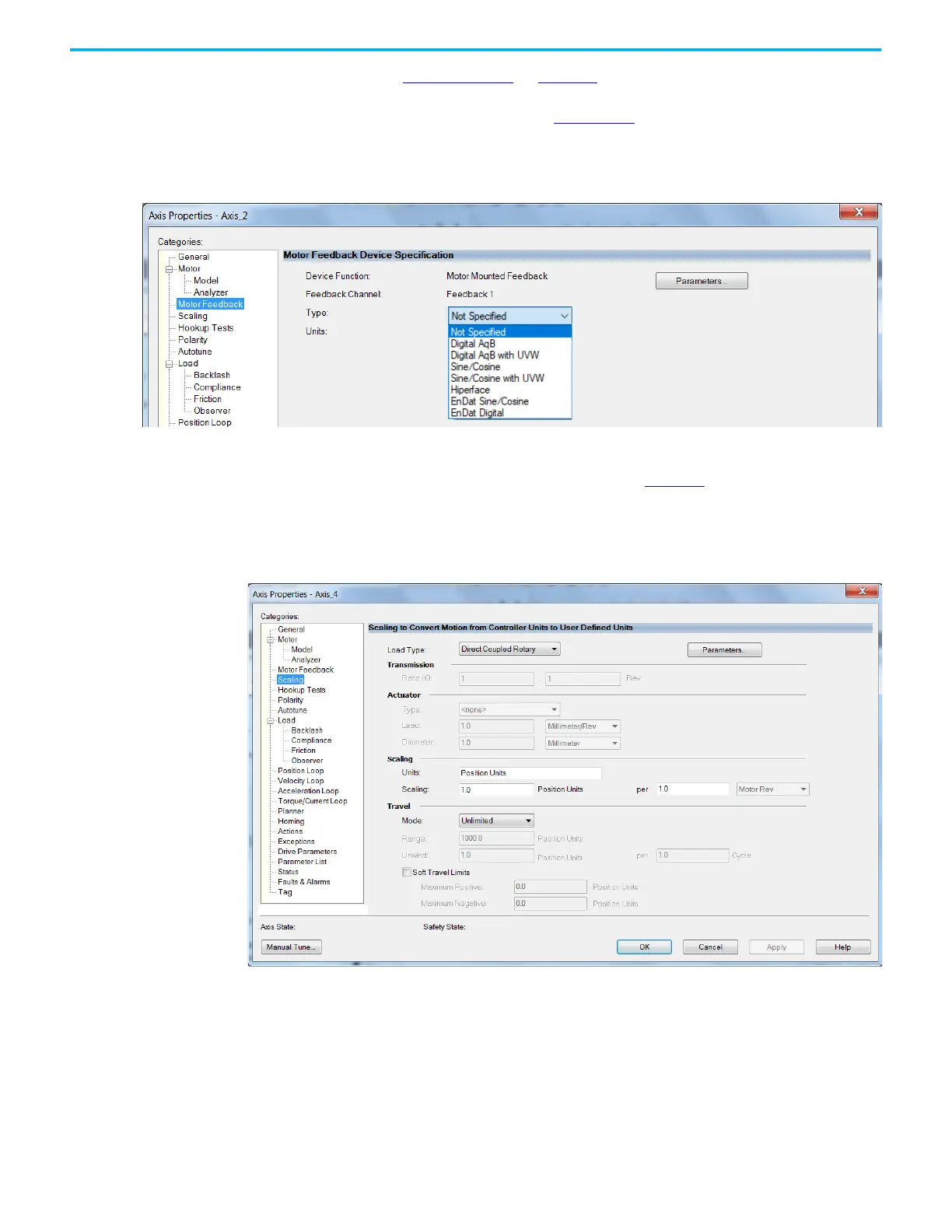

The Motor Feedback Device Specification dialog box appears.
12. From the Type pull-down menu, choose the feedback type appropriate
for your application.
See Configure Feedback Properties on page 244
for feedback
configuration examples.
13. Click Apply.
14. Select the Scaling category and edit the default values as appropriate for
your application.
15. Click Apply, if you make changes.
16. Select the Actions category.
